SJRV RCN150L Slim Caravan Fridge-Freezer – 148L, 12V/24V

Slim Caravan Fridge-Freezer with 148L Storage

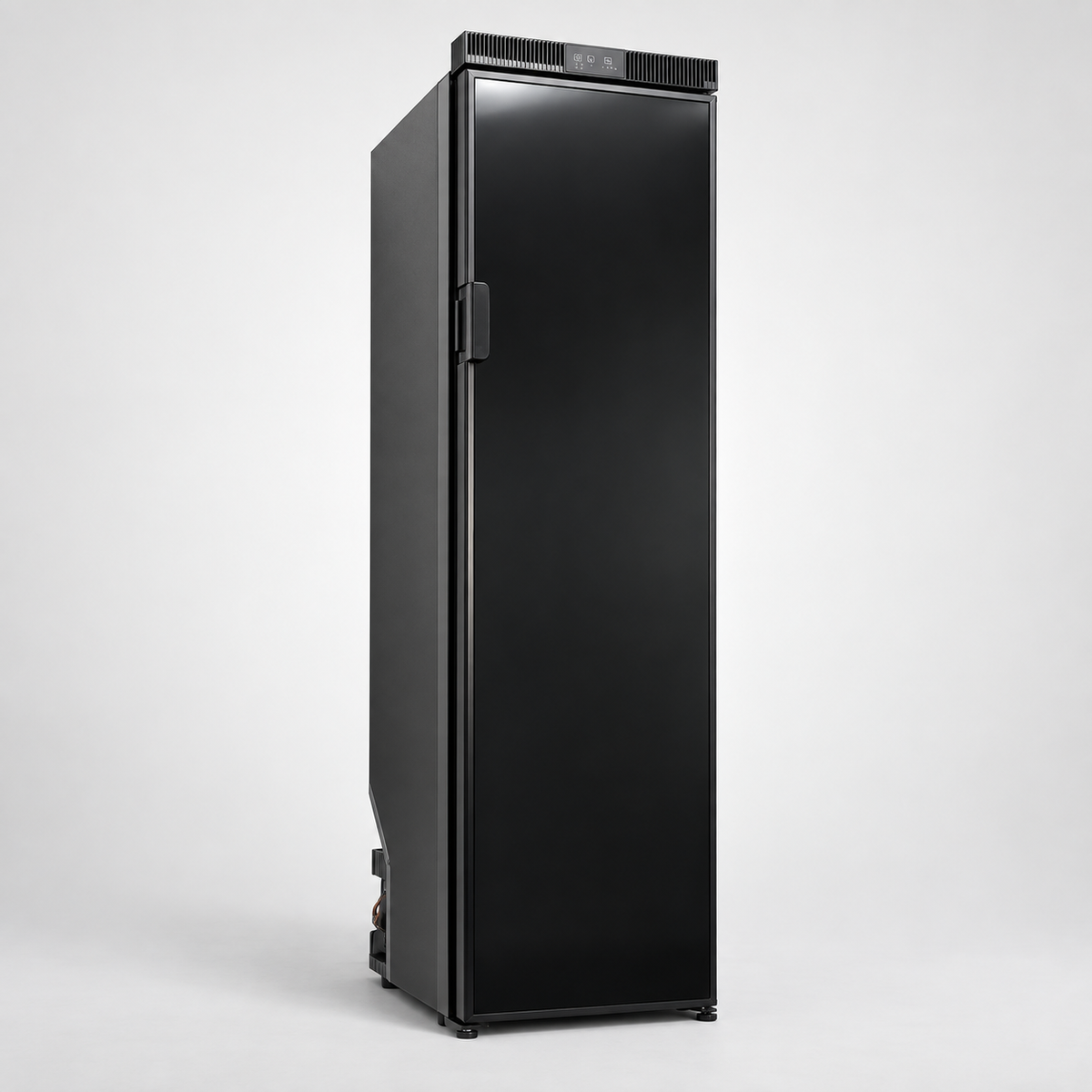

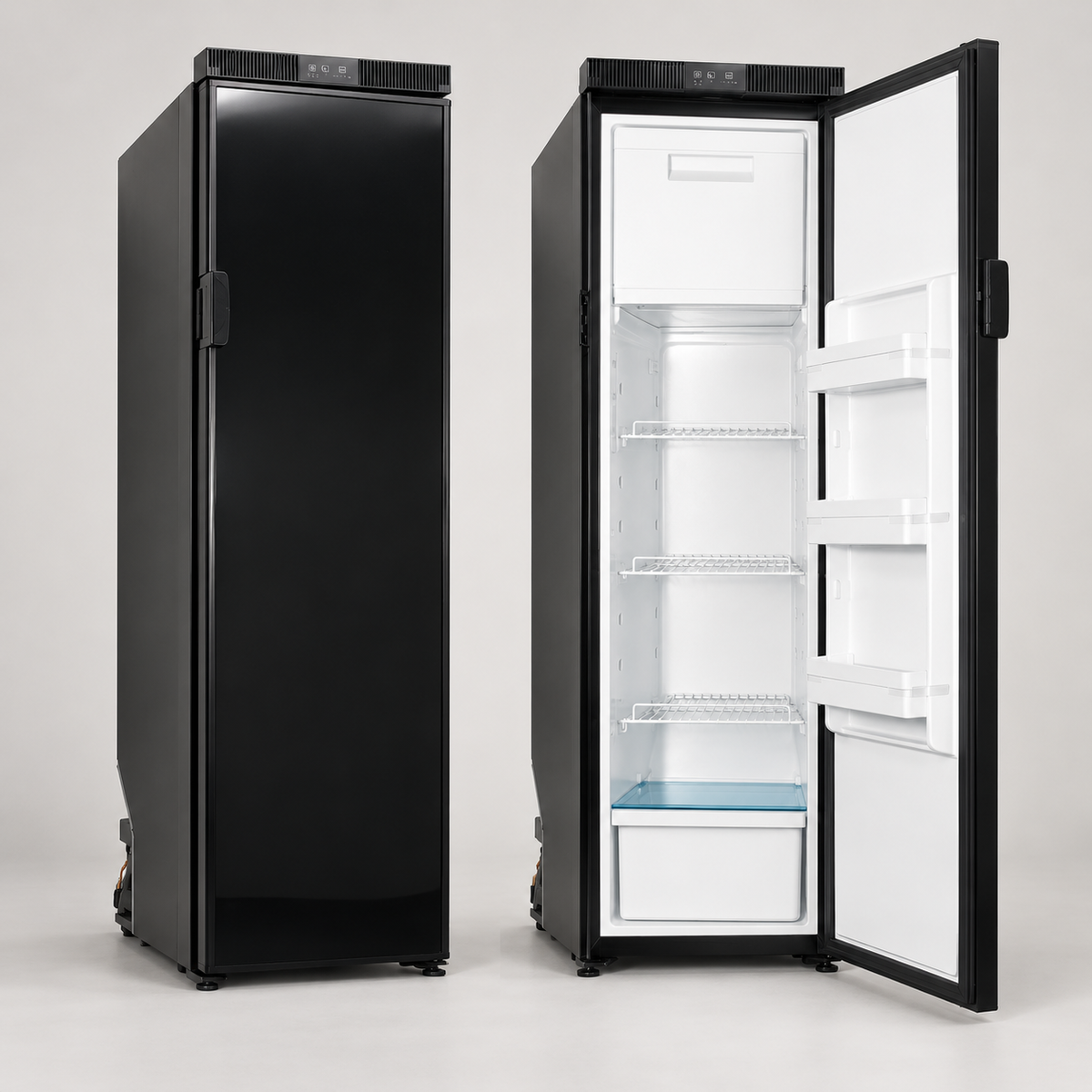

Make more use of a narrow kitchen space with the SJRV RCN150L slim upright caravan fridge-freezer. Its 418mm-wide cabinet provides 148 litres of specified storage, divided into a 122-litre refrigerator and a 26-litre freezer.

Commonly described as the 150L model, the RCN150L combines a variable-speed compressor, electronic controls, night mode and organised interior storage. It operates on 12V or 24V DC and includes a three-year warranty.

Narrow Cabinet with Generous Fresh-Food Storage

The tall, slim design provides substantial refrigerator space without requiring a wide cabinet opening.

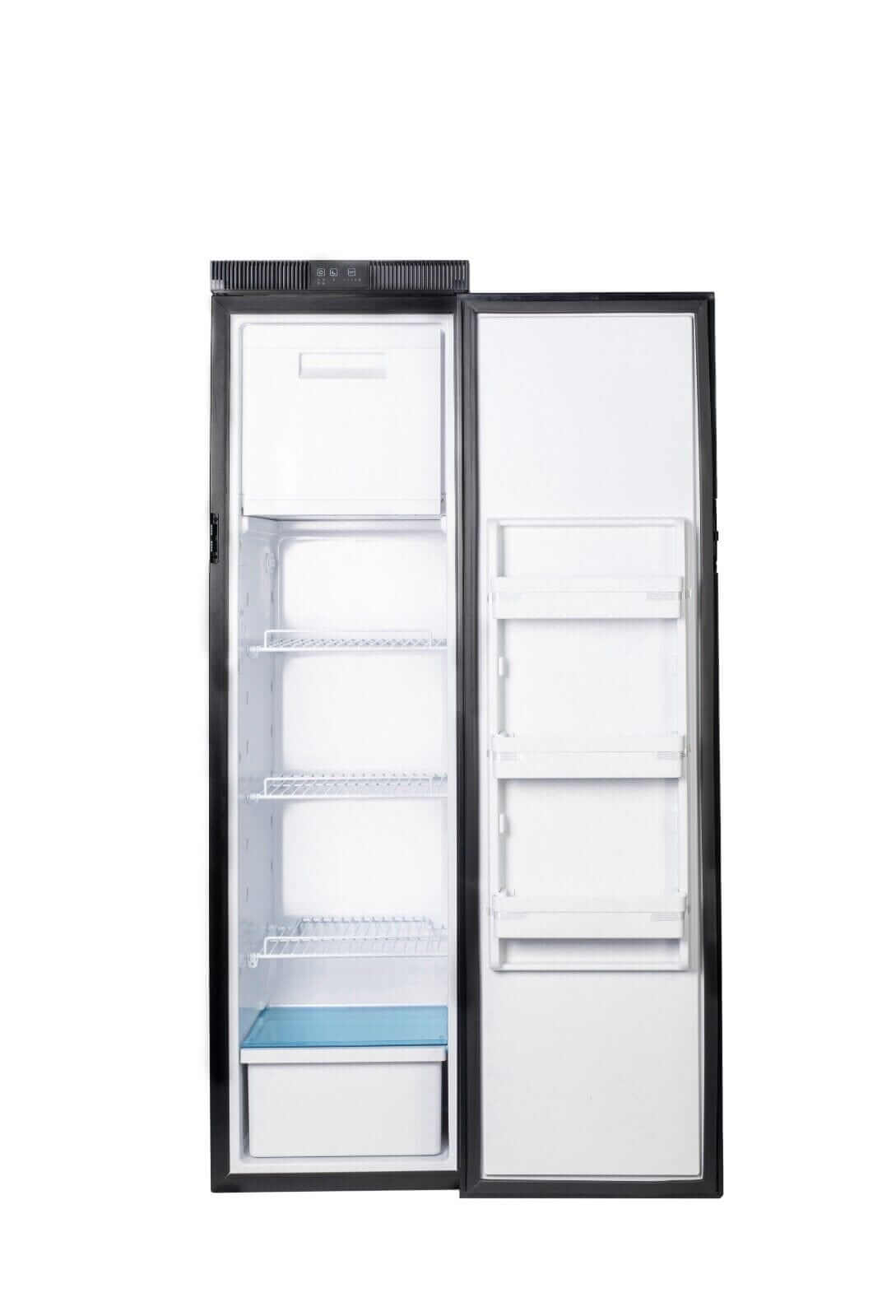

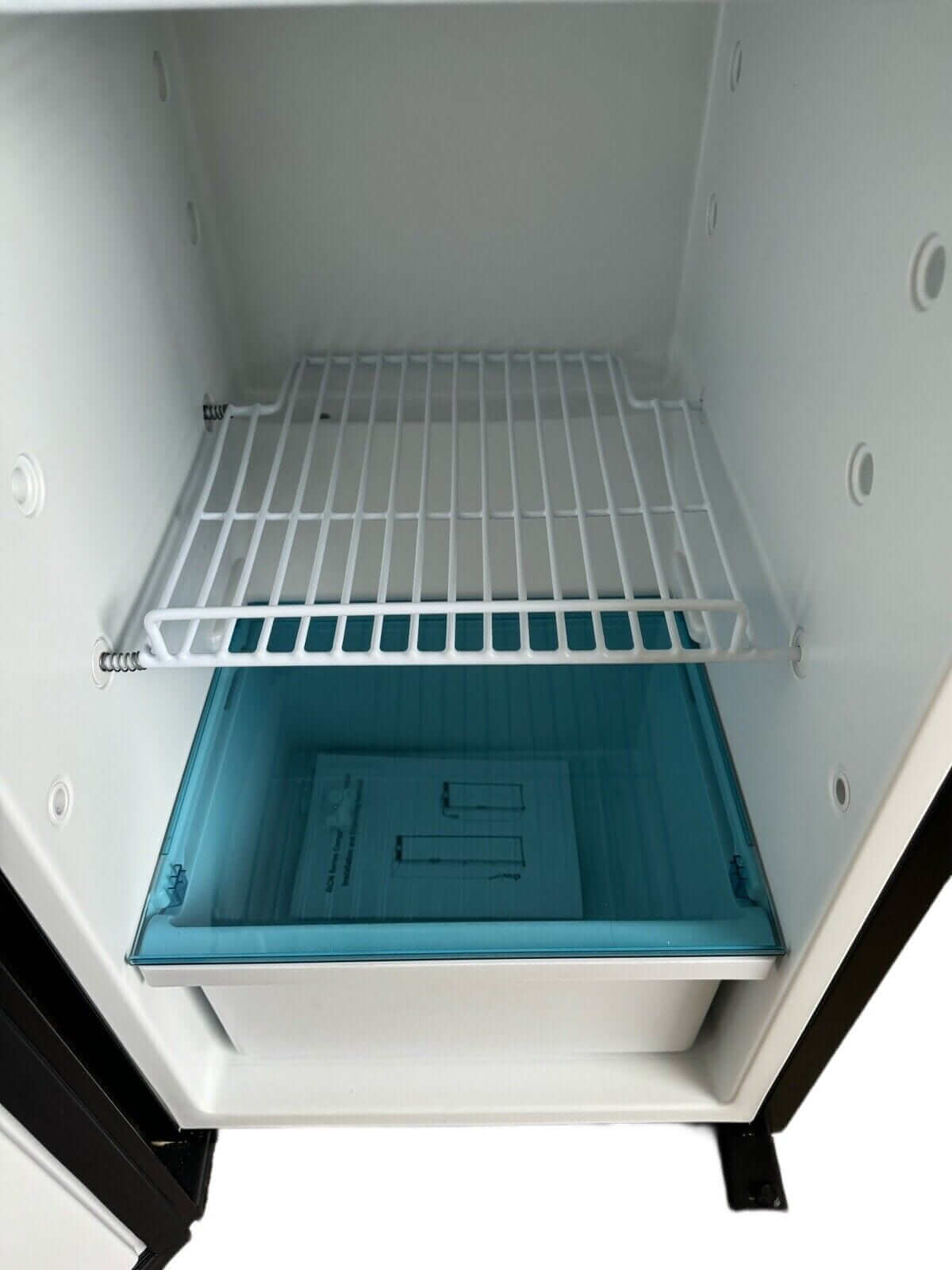

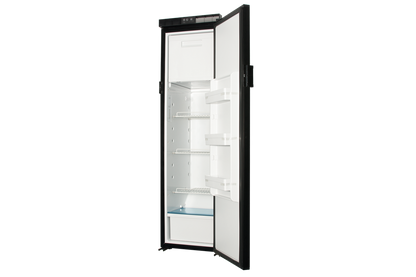

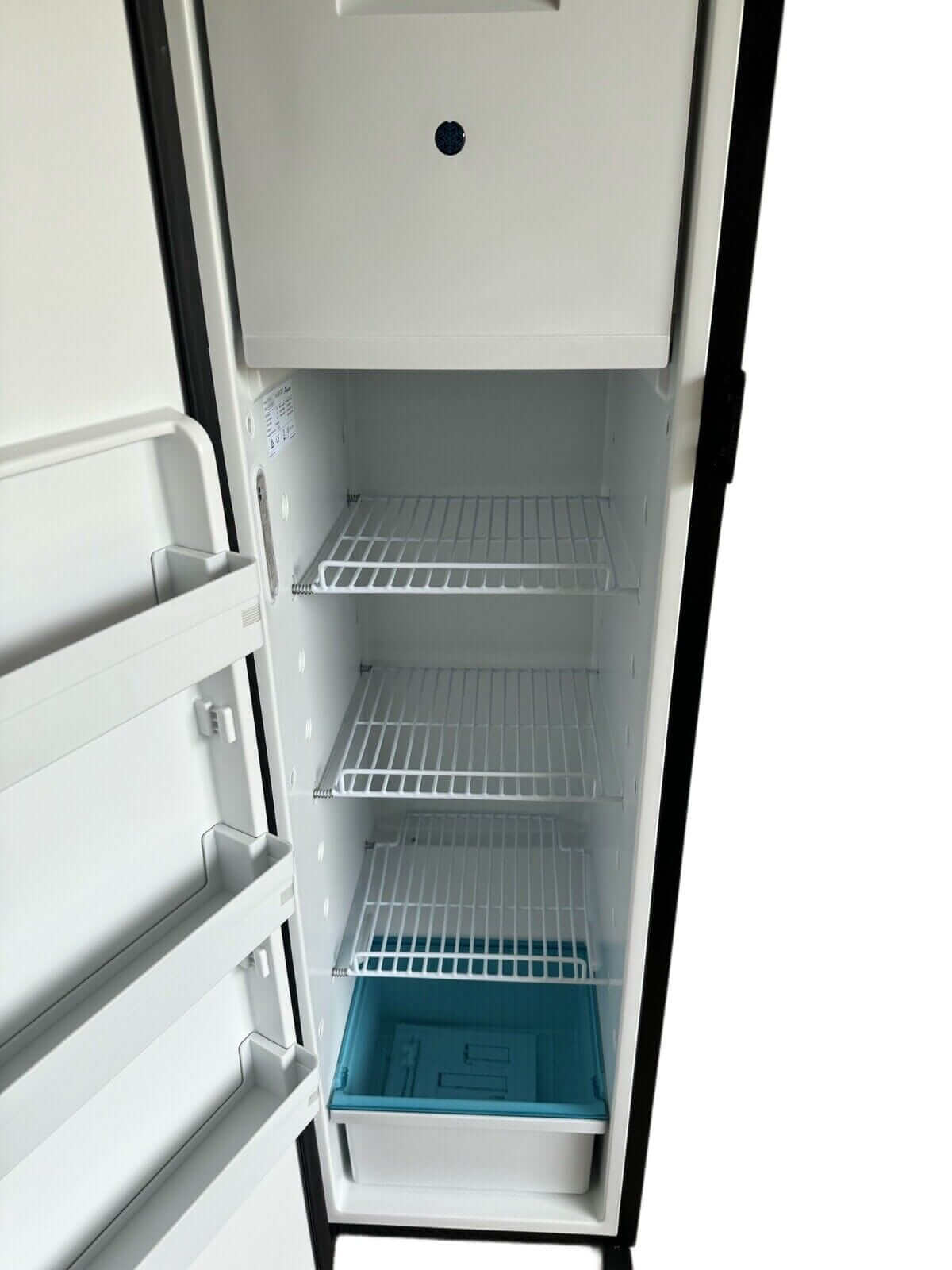

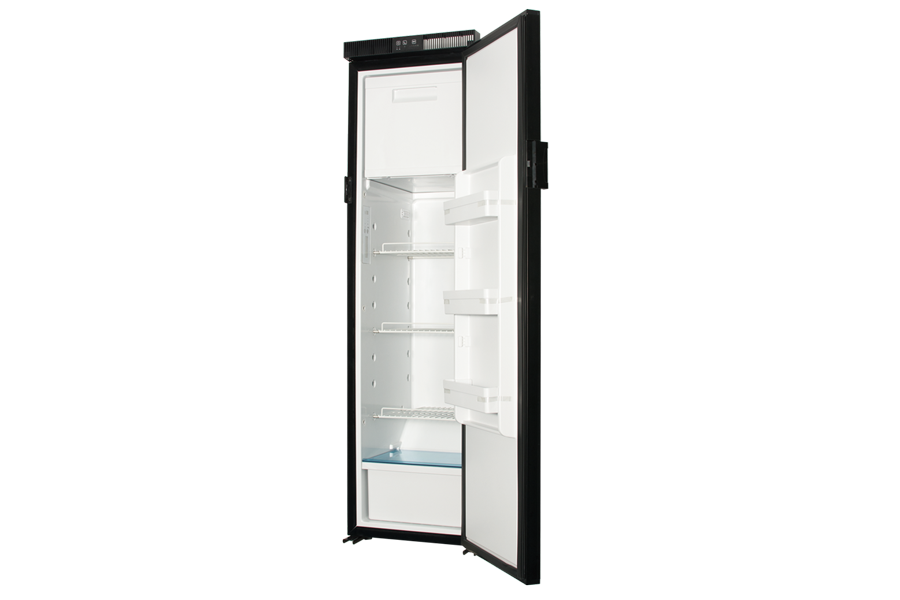

Inside, adjustable shelves, a large bottle holder, door trays and a salad bin help organise groceries, drinks and fresh produce. The separate 26-litre freezer provides space for frozen meals and supplies.

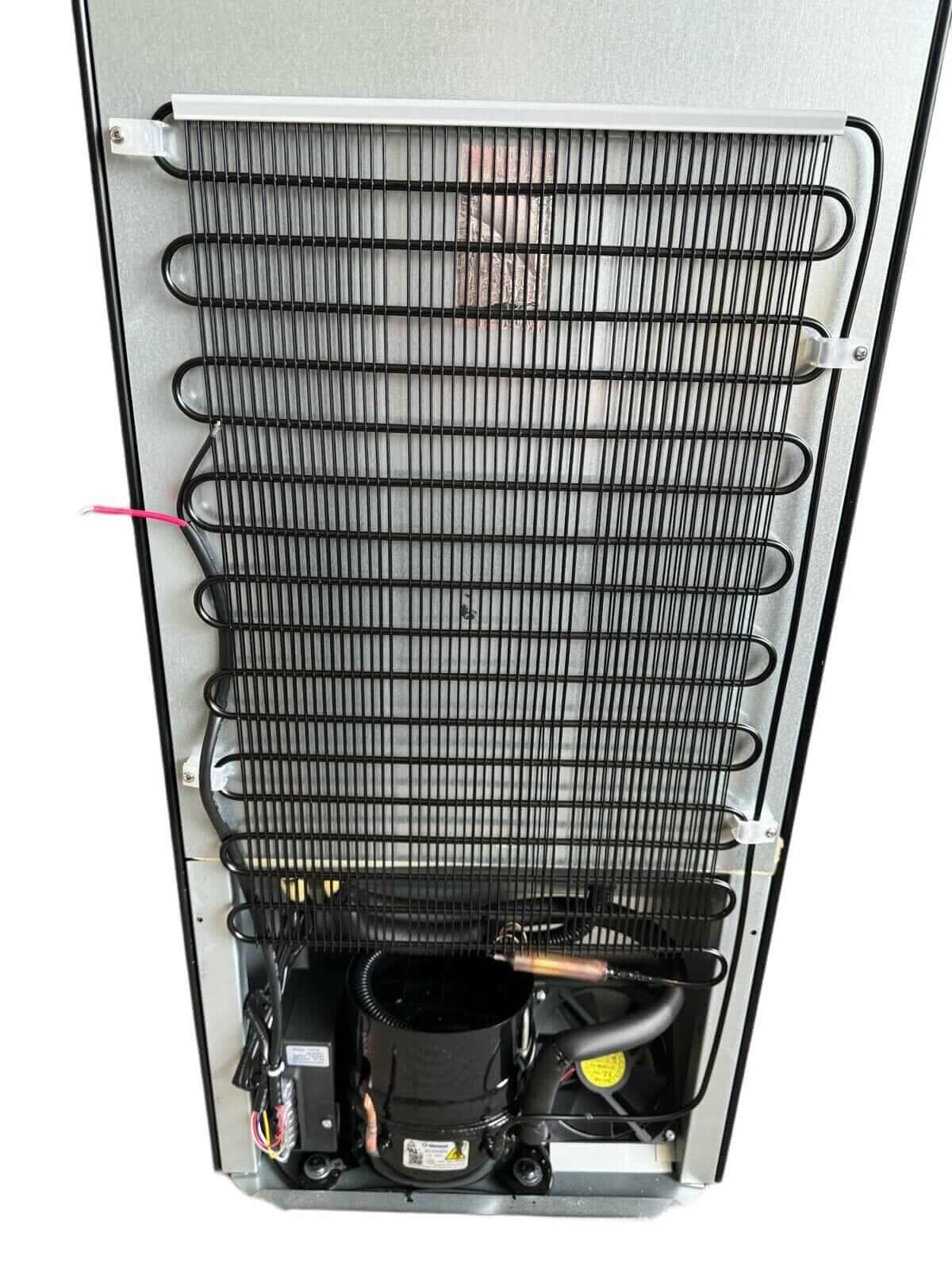

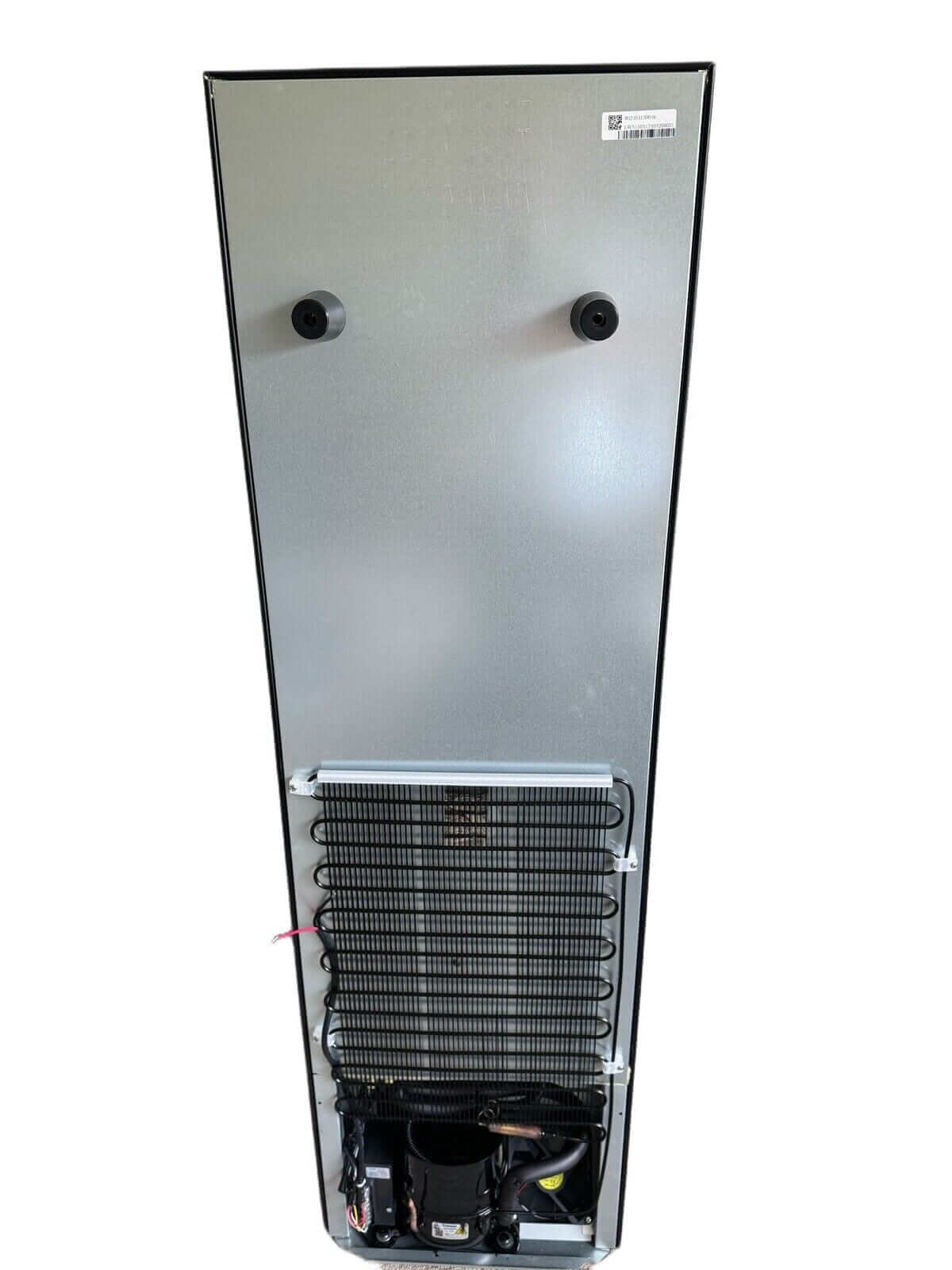

12V/24V Variable-Speed Compressor

The compressor adjusts its speed to cooling demand, helping maintain the selected temperature with reduced noise at lower operating speeds.

The RCN150L runs from a suitable 12V or 24V DC supply, making it compatible with common caravan and motorhome electrical systems.

A two-stage battery protection system helps protect the connected power supply against excessive discharge.

Electronic Controls and Night Mode

Soft-touch electronic controls provide five temperature settings. Night mode offers reduced-noise operation for quieter periods.

An LED interior light with an infrared sensor illuminates the cabinet when opened, making food and drinks easier to locate.

Tropical-Rated Cooling

The RCN150L is listed with a T climate rating for ambient temperatures from +16°C to +43°C.

The refrigerator temperature range is 0°C to +10°C, with freezer cooling down to −18°C. Suitable installation and ventilation allow heat from the cooling system to escape.

Door Opening and Replacement Fitment

Choose the left-side or right-side door-opening option that suits your kitchen layout.

The RCN150L is an option to compare when replacing a slimline caravan fridge, including Thetford T1152-style installations. Compare the existing opening, ventilation and door clearance with the installation dimensions before selecting a replacement.

The cabinet measures 418mm wide × 1498mm high × 560mm deep. Depth including the handle is 582mm.

Specifications

Specification	Details
Brand/model	SJRV RCN150L
Type	Slim upright compressor fridge-freezer
Common model size	150L
Specified total capacity	148L
Refrigerator capacity	122L
Freezer capacity	26L
Power supply	12V/24V DC
Compressor	Variable speed
Temperature settings	Five
Reduced-noise operation	Night mode
Battery protection	Two-stage
Climate class	T — tropical
Listed ambient operating range	+16°C to +43°C
Refrigerator temperature range	0°C to +10°C
Freezer temperature	Down to −18°C
Interior lighting	LED with infrared sensor
Cabinet dimensions, W × H × D	418 × 1498 × 560mm
Depth including handle	582mm
Listed installation opening, W × H × D	428 × 1510 × 570mm
Weight stated in RCN manual	35.8kg
Door opening	Select left or right when ordering
Warranty	Three years

Delivery Quotes and Warehouse Pickup

For delivery, select Add to Quote and include your town and postcode so we can calculate freight.

For pickup, order using Add to Cart. Collection is available from Acacia Ridge in Brisbane or Epping in Melbourne.

Compare SJRV Caravan Fridges

Read our caravan fridge buying guide to compare cabinet sizes, refrigerator capacity, freezer space and power requirements.

Need more frozen storage? The SJRV RCE170L fridge-freezer provides a larger 58-litre freezer.

Browse our complete caravan fridge collection for all sizes.

Frequently Asked Questions

Can the RCN150L operate on both 12V and 24V?

Yes. It runs from either a suitable 12V or 24V DC supply.

Does it provide separate refrigerator and freezer storage?

Yes. It has a 122-litre refrigerator and a 26-litre freezer, providing 148 litres in total.

Is it designed for a narrow caravan kitchen space?

Yes. The cabinet is 418mm wide, with a tall upright layout that provides storage without a wide footprint.

Can I organise the interior shelving?

Yes. Adjustable shelves, door trays, a bottle holder and a salad bin help organise different groceries and drinks.

Does it have a quieter operating mode?

Yes. Night mode provides reduced-noise operation.

Does it run on LPG gas?

No. This is an electric compressor fridge powered by 12V or 24V DC.

Can I connect this DC model directly to a 240V socket?

No. It requires an appropriate DC supply. Mains use needs a suitable charging system or regulated AC-to-DC power supply.

Is it a guaranteed direct replacement for every Thetford slimline fridge?

No. Installation openings, ventilation, door clearances and connections vary. Compare the dimensions and installation requirements for both models.
