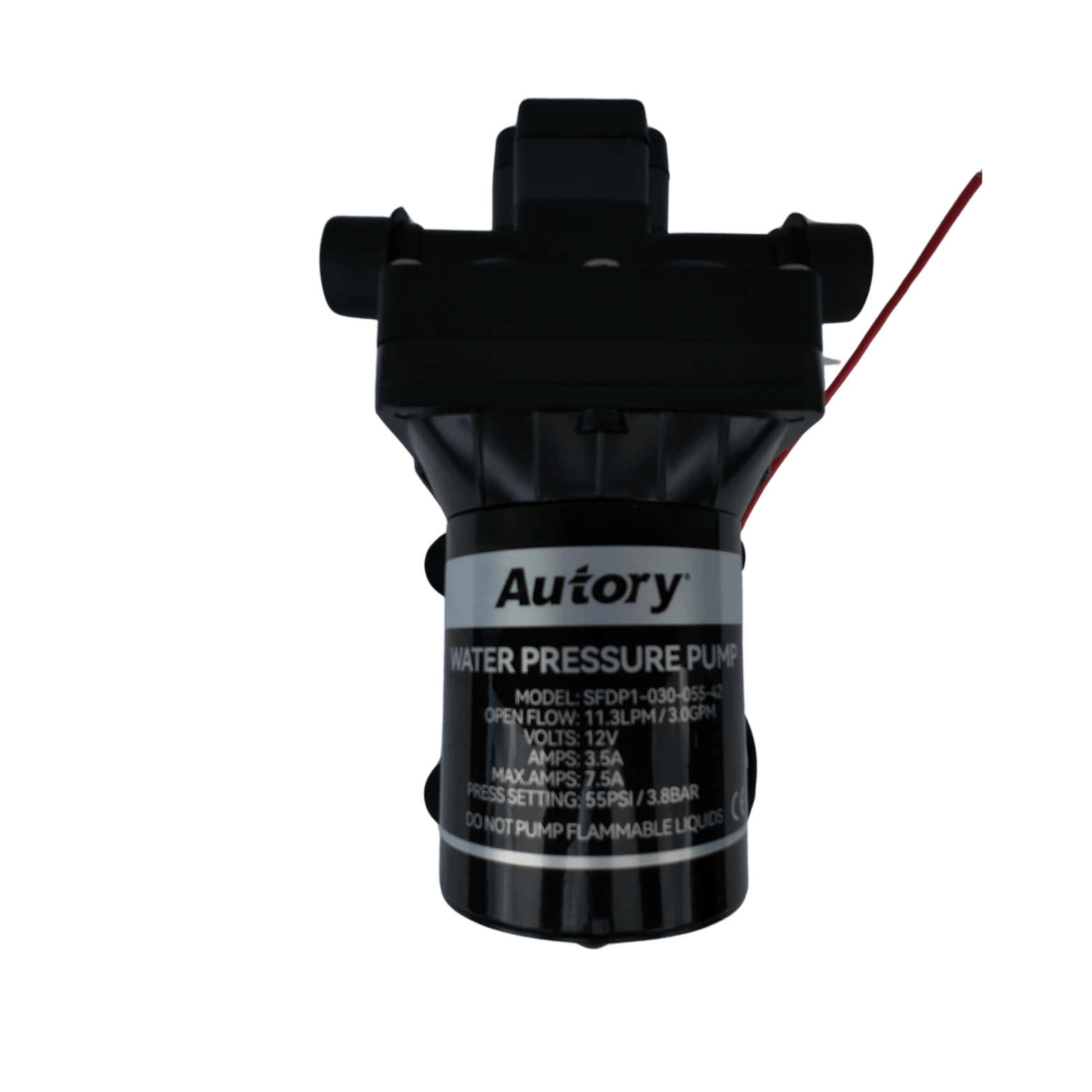

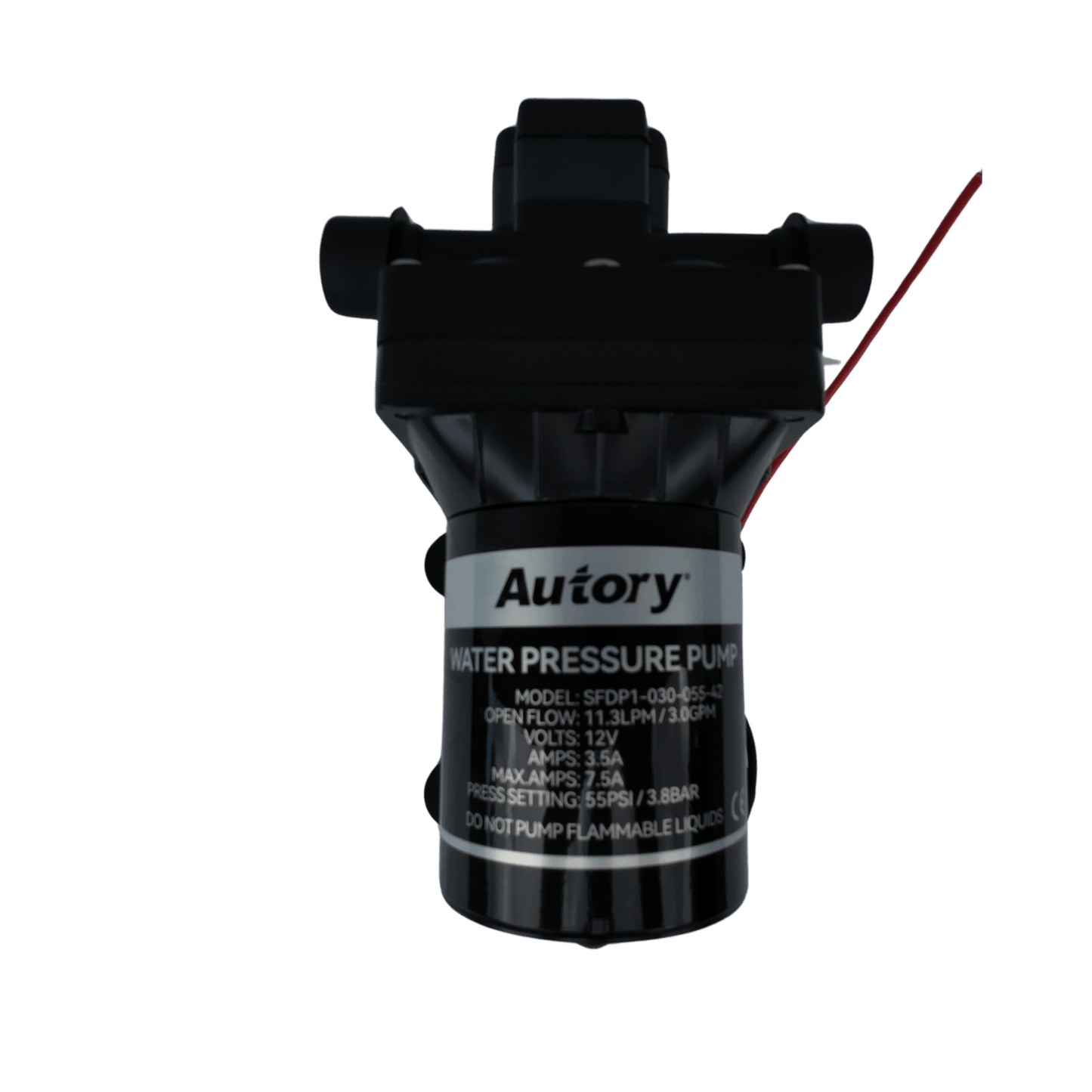

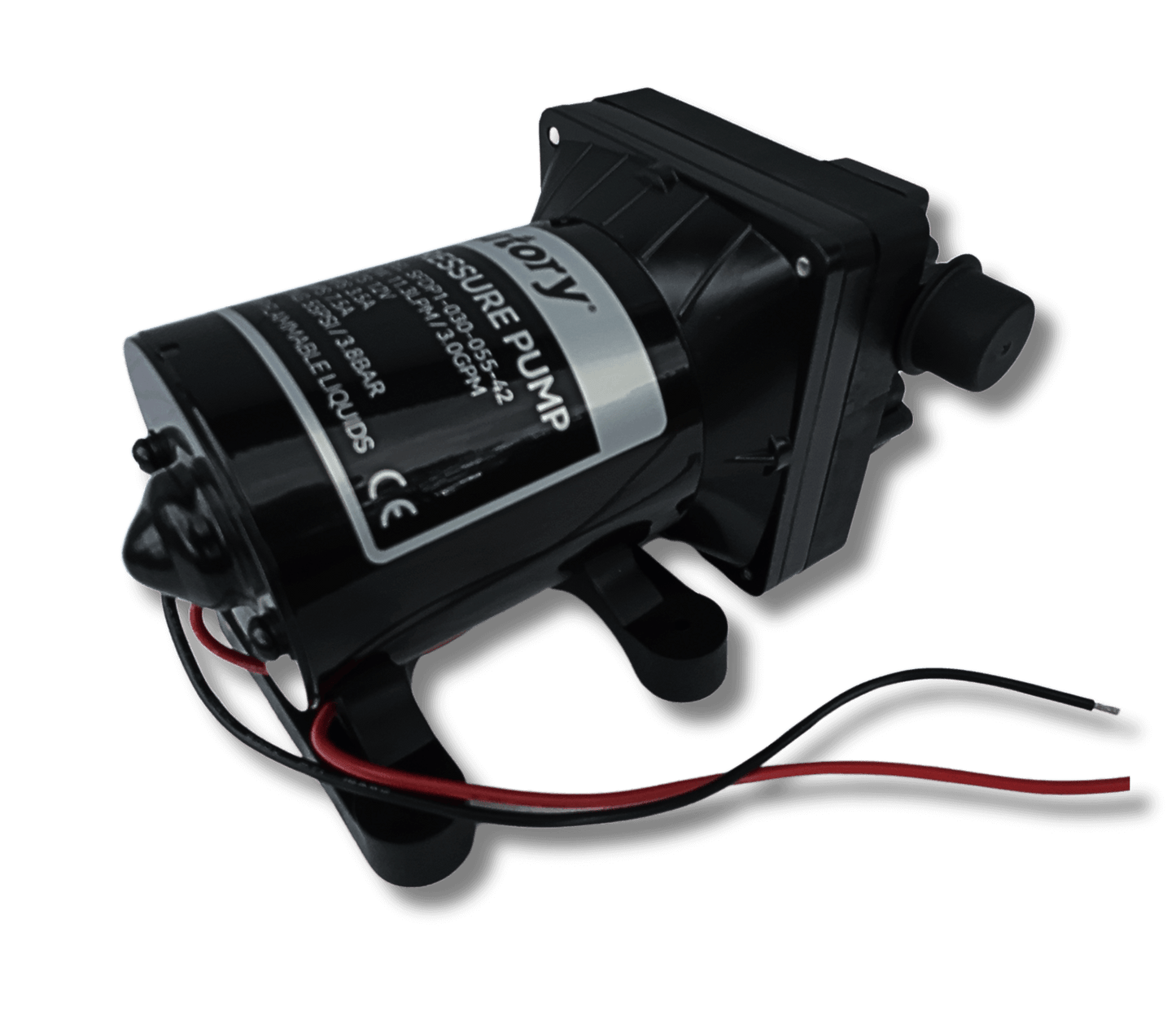

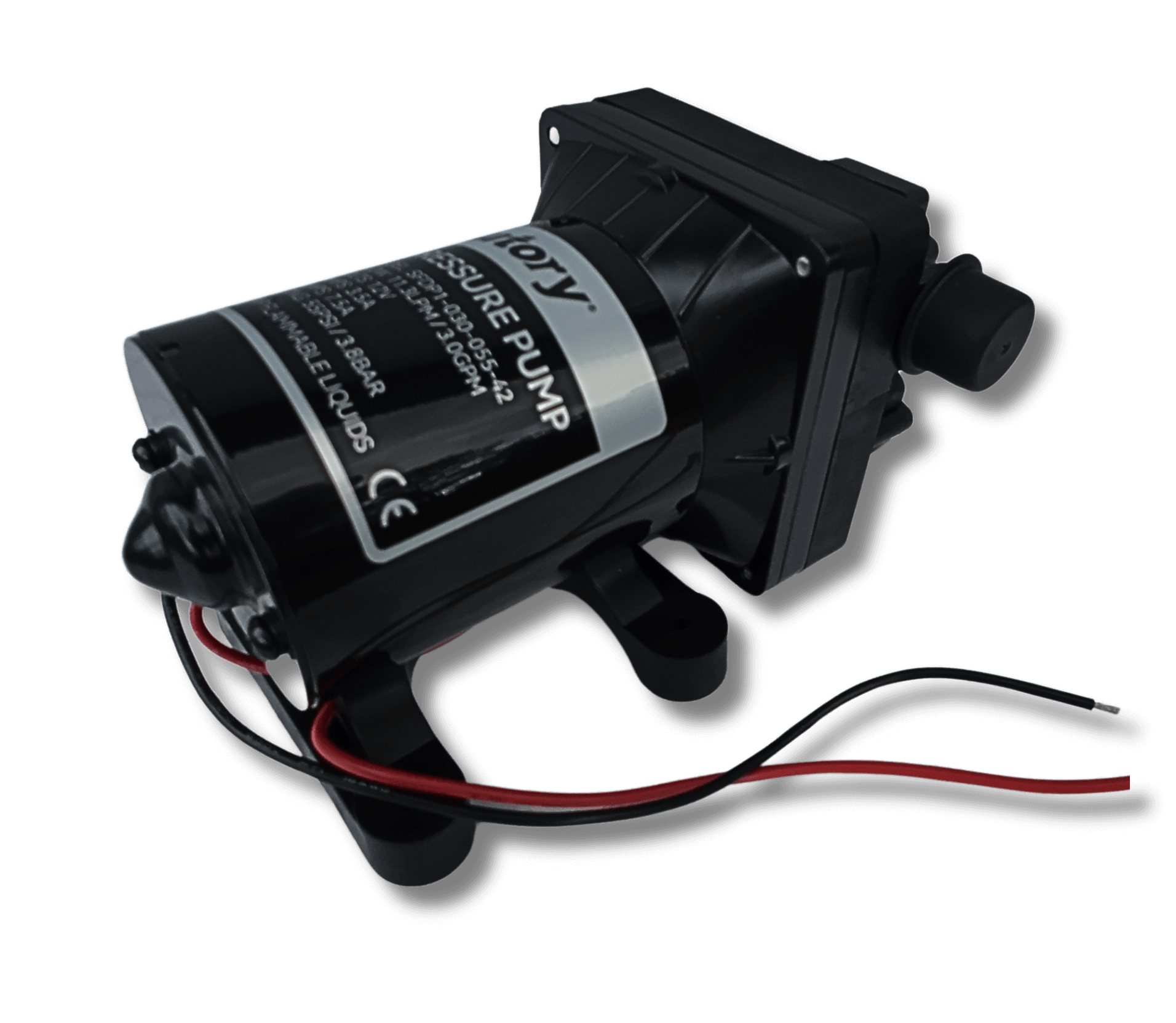

Autory 12V Automatic On-Demand Diaphragm pump

The Autory 42 series diaphragm pump provides water on demand based on water pressure at the outlet. So, when you open your water tap, the pump will turn on automatically and remain on (5 minutes of run time/10 minutes off) or until the tap is closed and pressure returns to normal.

This pump can be mounted either horizontally or vertically and features internal by-pass technology for quiet running and minimal cycle time.

Easy to install, simply connect the red and black wires to the corresponding terminals of your battery.  We suggest installing a cut off switch (not included) so the pump can be isolated from voltage when not used for extended periods of time.  Also, ensure that the positive wire from the battery is fused with 15A fuse (not included).

This pump can provide 11.3 litres per minute and operates on 12 volts DC.

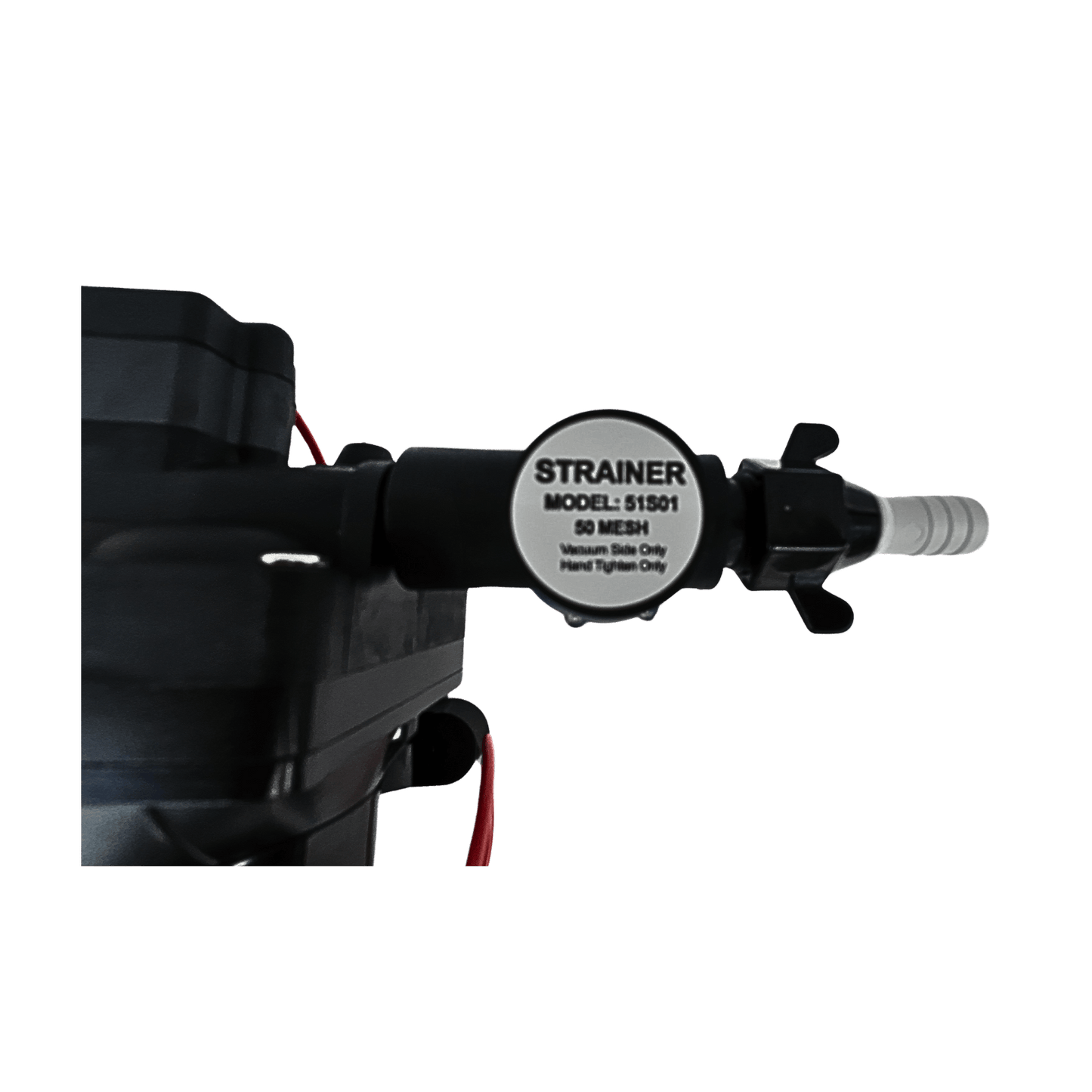

The connected water hose from your tank should be no less than 13mm ID and be braided hose to handle the water pressure.  The pump includes an inlet strainer to capture particles on the inlet side and this will protect the pump.  Water filters can be added to the outlet prior to your tap.

Suggested wire gauges are:

• 0-6 metres - AWG16
• 6-9 metres - AWG14
• 9-15 metres - AWG12
• 15-19 metres - AWG10

Features

• Quiet running
• Self priming
• Low power draw (3.5 ~ 7.5 AMPS per hour)
• Corrosion resistant valves
• Run dry without damage
• Easy connection
• Santoprene Diaphragm

Multiple applications for use in Caravans, Motorhomes, Yachts, Powerboats, trucks, buses, remote locations, offgrid homes etc
