Autory Wireless Caravan Reversing Camera Kit – 7″ Monitor & AI Detection
Autory Wireless Caravan Reversing Camera Kit – 7″ Monitor & AI Detection
Couldn't load pickup availability
Click above to bundle products and get the best possible supply and delivery quote. No commitment !

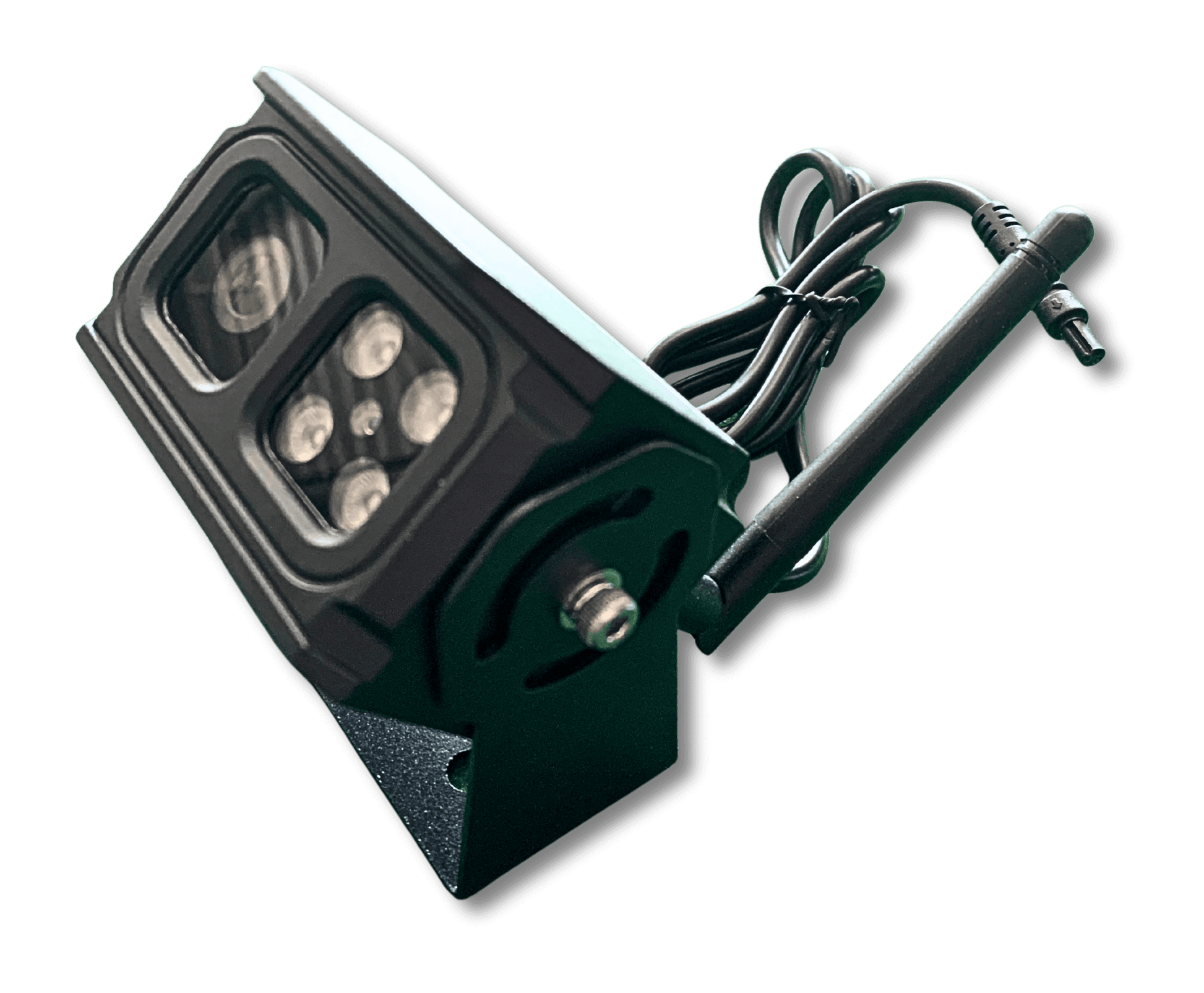

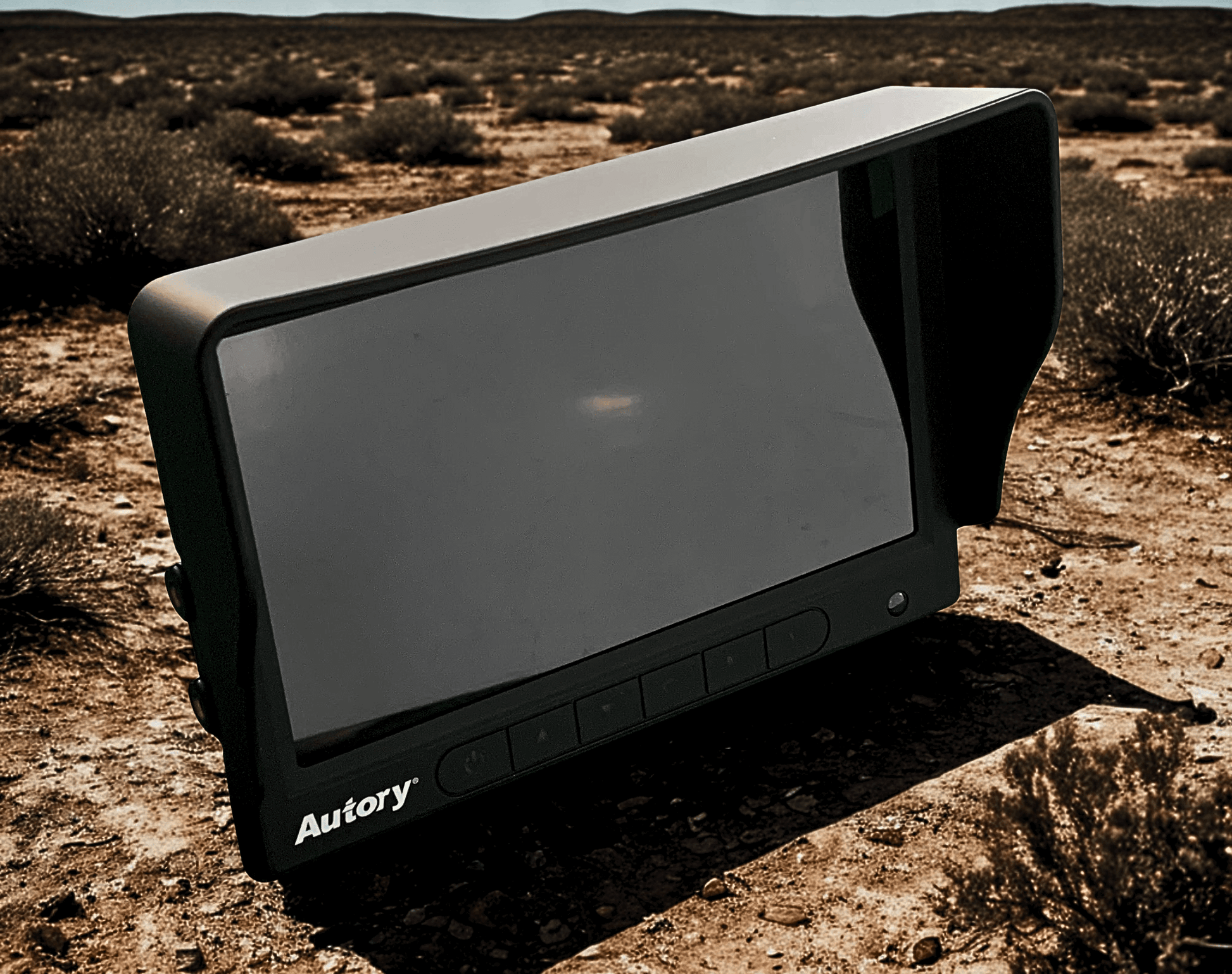

Improve visibility when reversing your caravan or motorhome with the Autory wireless reversing camera kit. It combines a 7-inch IPS monitor, a 1080p wide-angle camera and pedestrian and vehicle detection with on-screen alerts.
Wireless Video & Expandable Viewing
The 2.4GHz digital video link reduces cabling between camera and monitor. Connect up to four compatible cameras and select single, dual or split-screen views. Night vision supports low-light viewing.
Monitor Mounting & Recording

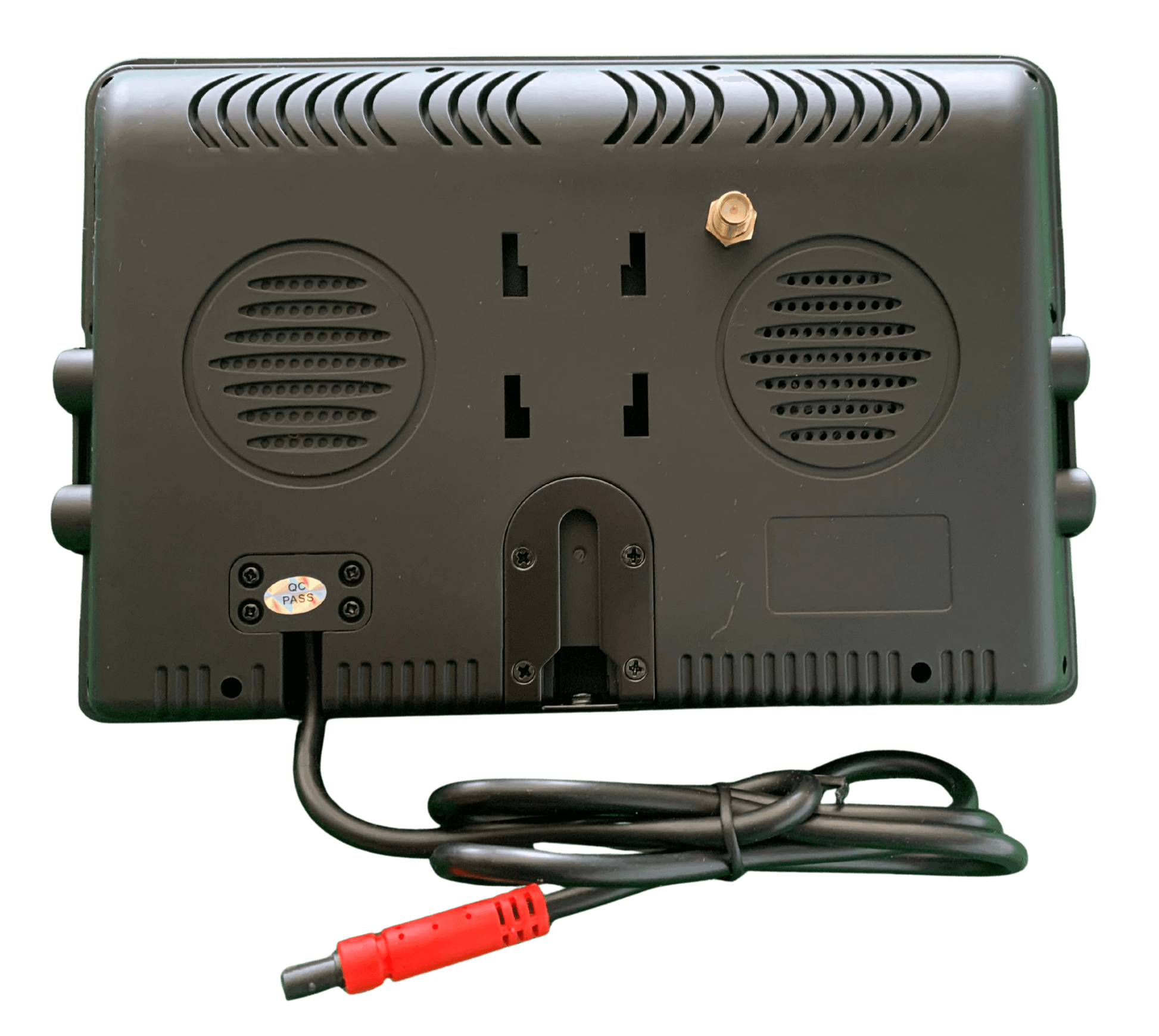

A windscreen suction mount is included. The monitor also accepts a standard ¼-inch camera mounting bracket, sold separately.
Record video in H.264 format using an SD card, sold separately. Optional audio recording functionality is also listed.
Specifications
| Feature | Details |
|---|---|
| Monitor | 7-inch IPS |
| Screen resolution | 1024 × 600 |
| Screen brightness | 500cd/m² |
| Camera resolution | 1080p |
| Camera viewing angle | 150° |
| Detection | BSD/AI pedestrian and vehicle alerts |
| Wireless transmission | 2.4GHz digital |
| Advertised transmission range | Over 300m; installation conditions affect reception |
| Camera protection | IP68 |
| Camera support | Up to four compatible wireless cameras |
| Supply voltage | 10–32V DC |
| Operating temperature | −30°C to +85°C |
| Listed standby current | 30mA |
Explore more 12V caravan accessories at VanDIY.
Frequently Asked Questions
Can I use this camera system when reversing a caravan or motorhome?
Yes. The Autory system provides a camera view on its dedicated 7-inch monitor to assist when reversing and manoeuvring caravans, motorhomes and trailers.
Does the camera provide night vision?
Yes. The camera includes night vision to support viewing in low-light conditions.
Can the system detect pedestrians and vehicles?
Yes. Its BSD/AI function provides pedestrian and vehicle detection with on-screen alerts. These assist the driver; they do not guarantee detection of every person, vehicle or obstacle.
Can I connect more cameras to the monitor?
Yes. The system supports up to four compatible wireless cameras, with single, dual and split-screen viewing options. Additional cameras are purchased separately.
Can I record camera footage?
Yes. The system supports H.264 video recording onto an SD card. An SD card is not included.
Does “wireless” mean the camera and monitor operate without power connections?
No. “Wireless” refers to the video transmission between the camera and monitor. The system requires a suitable electrical supply within its specified 10–32V DC operating range.
Does the 1080p camera mean the monitor also has a 1920 × 1080 screen?
No. The camera captures 1080p video, while the 7-inch IPS monitor has a native display resolution of 1024 × 600 pixels.
Is reception over 300 metres guaranteed on every installation?
No. Over 300 metres is the advertised transmission range, rather than a guaranteed installed distance. Vehicle construction, camera placement, obstructions and wireless interference can affect reception.
