SJRV Plus 12V Caravan Roof Fan – 400mm, Remote Control & Blind

Please Note: This Caravan Roof Fan is only available in WHITE.  This is the 400mm cutout version.

400mm Caravan Roof Fan with Remote Control

Upgrade your caravan’s ventilation with the SJRV Plus 12V roof fan for a 400 × 400mm roof opening. Reversible airflow lets you extract warm cabin air or draw fresh air inside, while ten selectable speeds provide adjustable ventilation for caravans, campervans and motorhomes.

This model includes remote control, an interior touch panel, automatic temperature control and a powered roof lid. A pleated block-out blind, insect screen and LED lighting complete the interior assembly.

Supplied with a white roof lid, this is the 400mm cut-out version of the SJRV Plus Fan.

Reversible Intake and Exhaust Airflow

Use exhaust mode to draw accumulated warmth and cooking odours outside. Opening a suitable shaded window allows replacement air to move through the cabin towards the roof vent.

Switch to intake mode to bring outdoor air inside. The reversible brushless motor gives you flexibility to manage airflow as conditions change.

Listed maximum airflow is approximately 3,000m³ per hour.

Ten Speeds for Adjustable Ventilation

Choose a gentle setting for quieter periods or increase the speed when stronger ventilation is needed.

The brushless DC motor offers ten speed settings. At speed four, listed noise levels are 29dB in exhaust mode and 32dB in intake mode. At speed ten, the listed figures increase to 47dB and 53dB respectively.

Lower speeds provide reduced airflow and noise, making them useful near sleeping or seating areas.

Remote Control and Automatic Temperature Operation

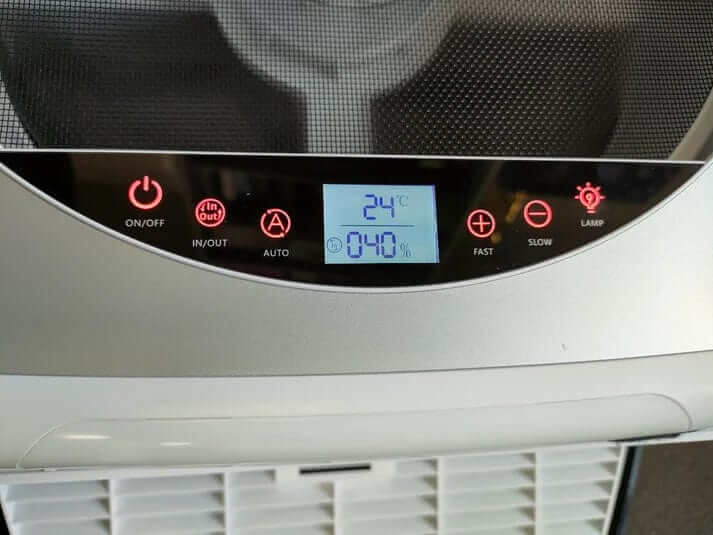

Operate the fan using the supplied remote or the integrated interior touch panel.

The built-in temperature sensor supports automatic ventilation based on your selected settings. Powered opening and closing of the roof lid adds convenience, with manual lid operation also available.

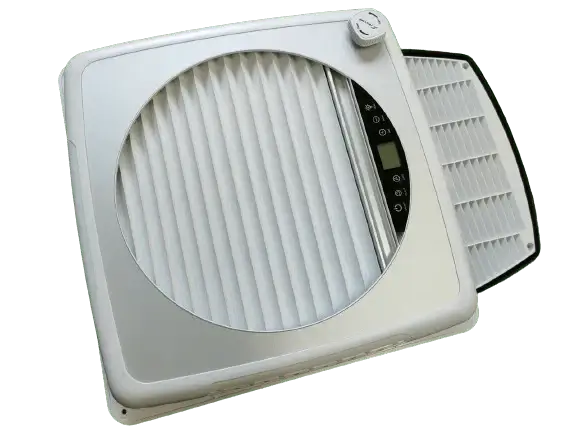

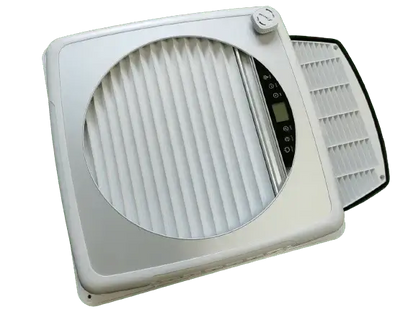

Block-Out Blind, Insect Screen and LED Light

The integrated pleated blind reduces unwanted light when the fan is installed near a bed or living area.

An insect screen helps keep mosquitoes and other insects outside. Built-in LED lighting illuminates the interior assembly, combining ventilation, light control and lighting in one unit.

Designed for a 400 × 400mm Roof Cut-Out

This version fits a 400 × 400mm roof opening and is listed for roof thicknesses of 27–80mm. Its closed height is 127mm.

The cut-out measurement refers to the opening through the roof. Allow space around it for the exterior housing, lid movement and interior trim.

For a 355 × 355mm opening, choose the smaller cut-out version of the SJRV Plus Fan.

Specifications

Specification	Details
Brand	SJRV
Model range	Plus Fan
Roof cut-out	400 × 400mm
Power supply	12V DC
Motor	Brushless DC
Fan speeds	10
Airflow direction	Reversible intake and exhaust
Listed maximum airflow	Approximately 3,000m³/h
Maximum fan power	20W at speed ten
LED light power	4W
Controls	Supplied remote and interior touch panel
Temperature control	Built-in sensor with automatic operation
Lid operation	Powered opening/closing and manual operation
Roof thickness compatibility	27–80mm
Closed height	127mm
Listed net weight	4.5kg
Roof lid colour	White
Interior fittings	Pleated block-out blind, insect screen and LED light

Compare the Two Plus Fan Sizes

Read our SJRV Plus Fan buying guide to compare the 355mm and 400mm versions and understand airflow, controls, power and roof fitment.

For a smaller roof opening, view the 355mm SJRV Plus caravan roof fan.

Browse our caravan roof fans and extractor vents for the complete range.

Frequently Asked Questions

Can this model fit a 400 × 400mm roof opening?

Yes. This is the SJRV Plus Fan version designed for a 400 × 400mm roof cut-out, with a listed roof thickness range of 27–80mm.

Can it extract warm air and draw fresh air inside?

Yes. Reversible operation provides both exhaust and intake modes.

Can I control the fan without reaching the ceiling?

Yes. The supplied remote lets you adjust the fan settings. An interior touch panel provides another control option.

Can it operate automatically according to temperature?

Yes. Its built-in temperature sensor supports automatic ventilation based on your selected settings.

Does it include ten speeds, a blind, insect screen and light?

Yes. It has ten selectable fan speeds, a pleated block-out blind, insect screen and integrated LED lighting.

Can it fit directly into a 355 × 355mm opening?

No. This version requires a 400 × 400mm cut-out. Choose the 355mm Plus Fan for the smaller opening.

Can I connect it directly to 240V mains power?

No. The fan requires 12V DC. Mains operation would require a suitable regulated AC-to-12V DC power supply.

Does the fan refrigerate incoming air?

No. It ventilates by moving air. It can remove trapped cabin heat, but it does not actively cool incoming air below the outdoor temperature.
