SJRV Caravan Tunnel Boot Door & Access Hatch – Black or White

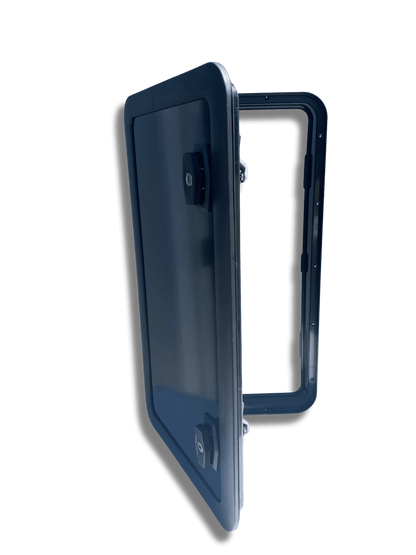

SJRV Caravan Tunnel Boot Door & Access Hatch

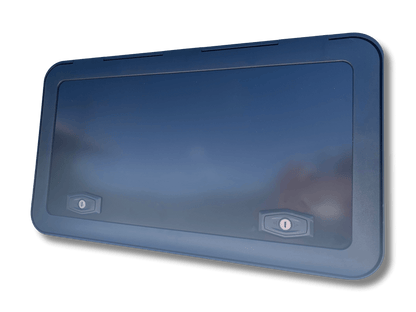

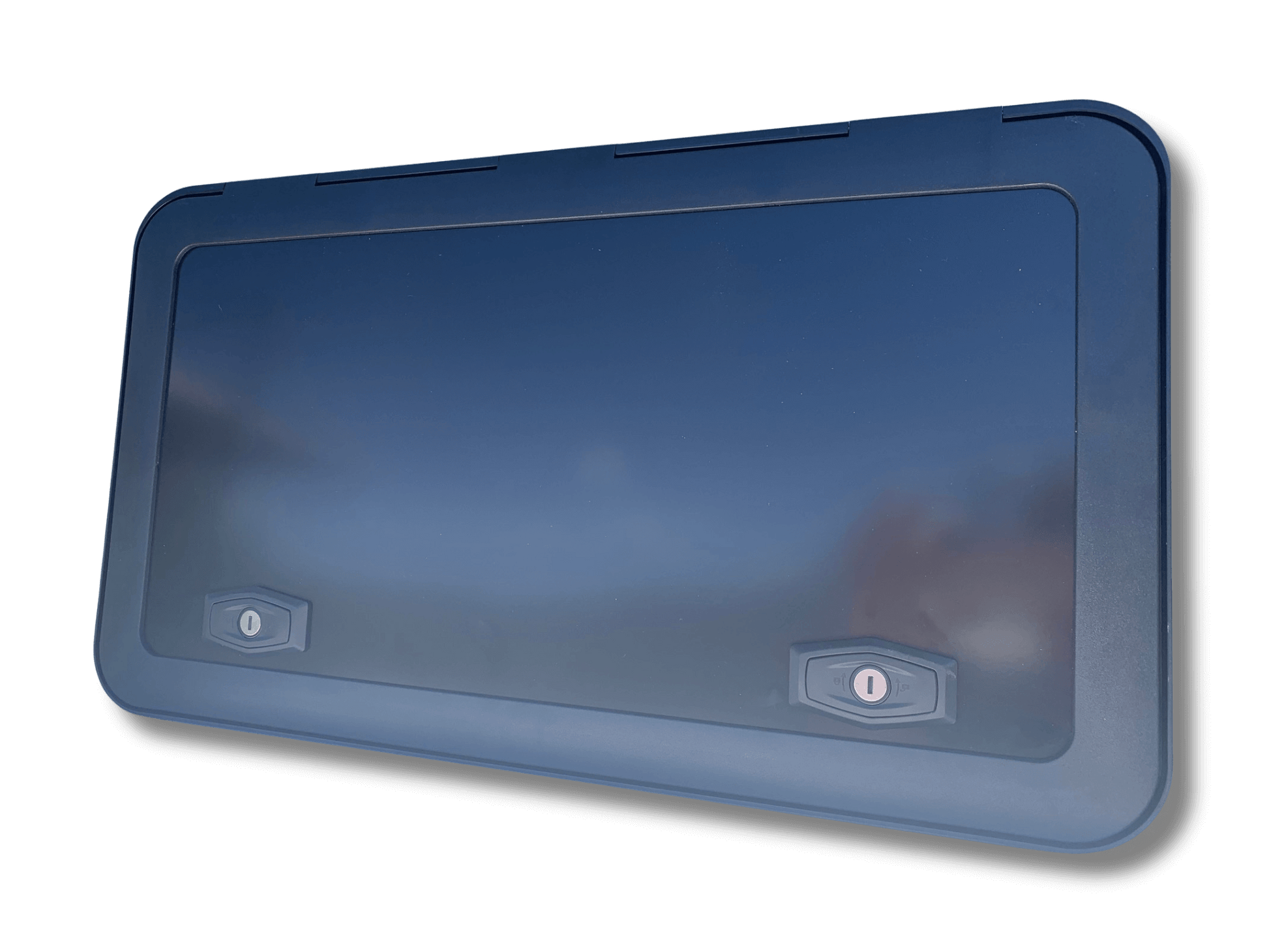

Create convenient external access to your caravan’s storage compartments with the SJRV tunnel boot hatch door. Suitable for caravan and motorhome builds, renovations and replacement installations, it combines an aluminium foam sandwich panel with keyed locking and a wide-opening hinge.

Available in black or white, the hatch supports horizontal or vertical mounting to suit different compartment layouts.

Dimensions below use Height × Width, shown in the horizontal orientation:

• Overall frame: 383mm H × 677mm W.

• Installation cut-out: 347mm H × 647mm W.

• Overall depth: 46mm.

The outside frame overlaps the wall opening, so the overall frame size is larger than the installation cut-out.

Easy Access to Caravan Storage

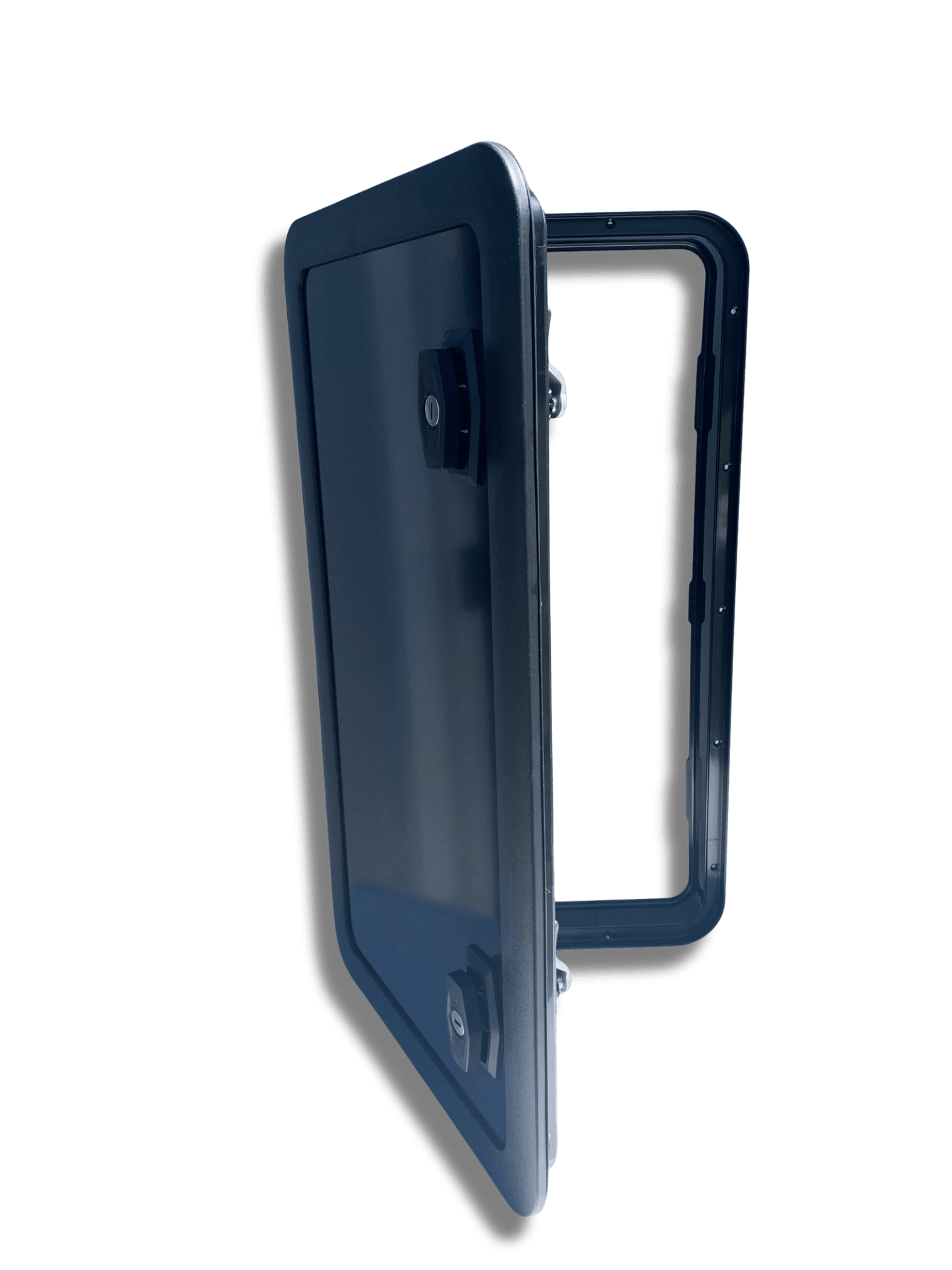

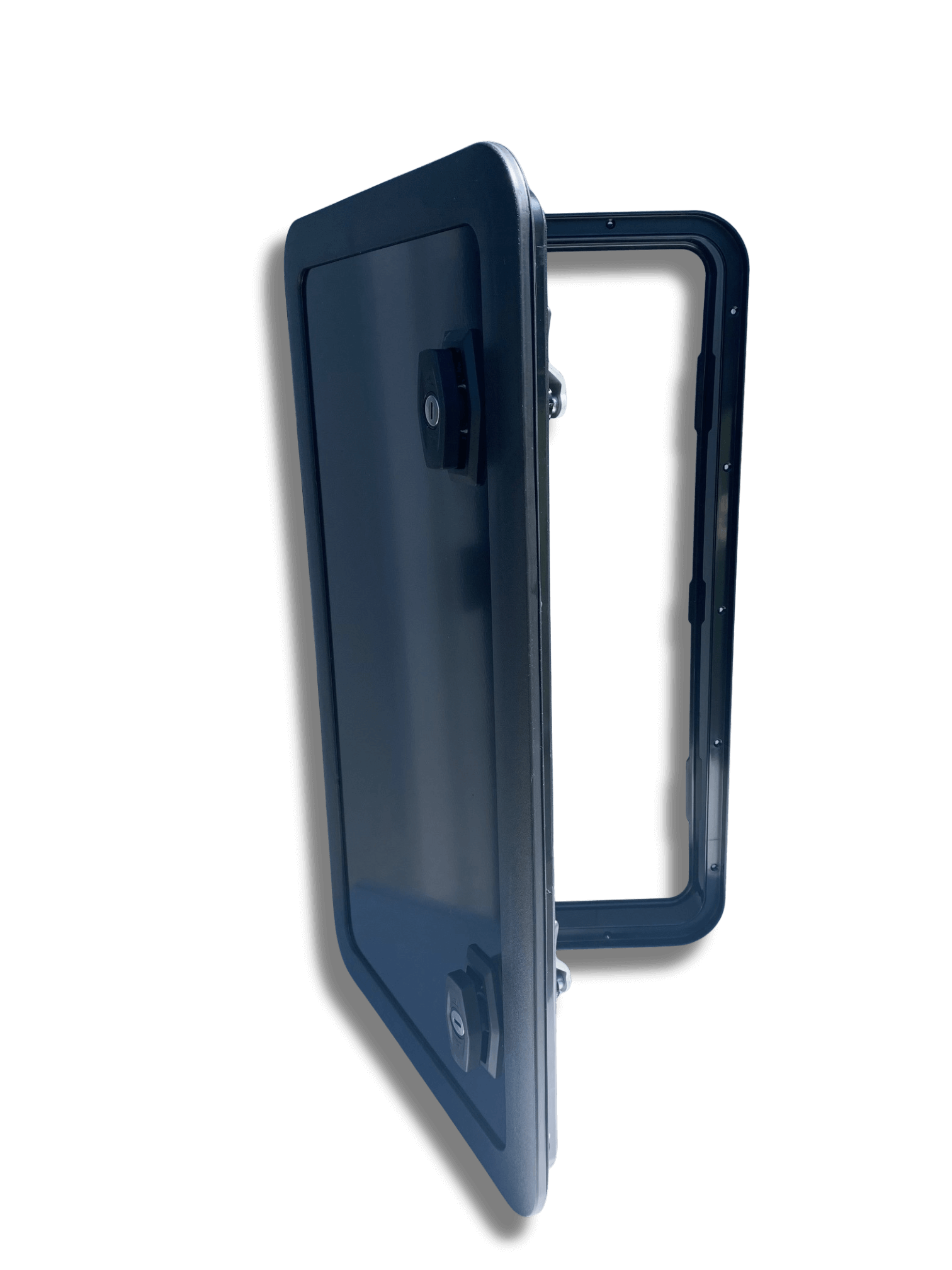

The door opens up to 180 degrees, allowing the panel to swing clear when loading or retrieving equipment. Use it for tunnel boot storage, luggage compartments or service access areas.

Horizontal or vertical mounting allows the hatch to suit different storage layouts. Allow sufficient space around the installation for the door to open fully.

Aluminium Panel and Keyed Locking

The aluminium foam sandwich panel provides lightweight door construction, with UV-resistant materials for exterior use.

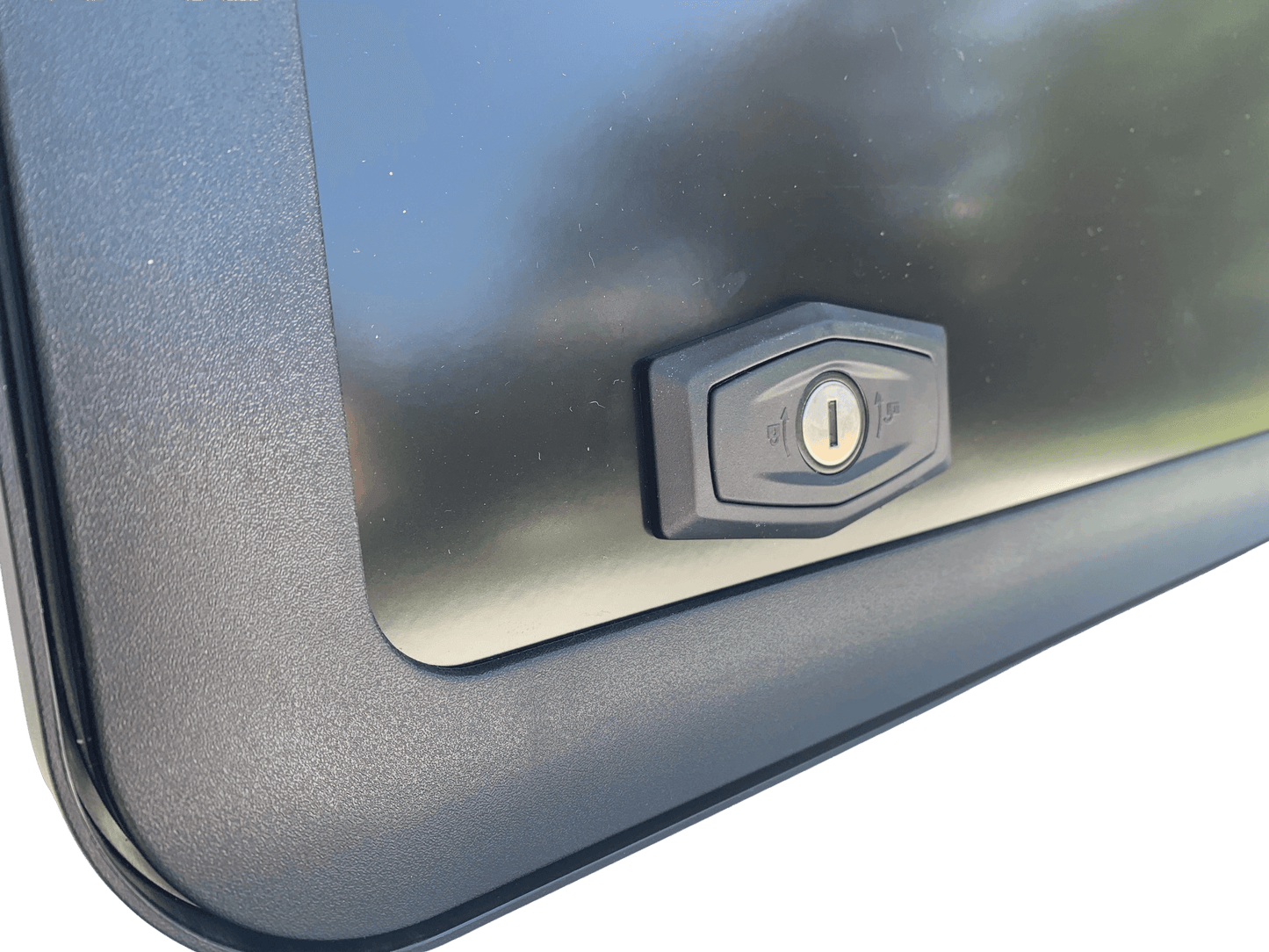

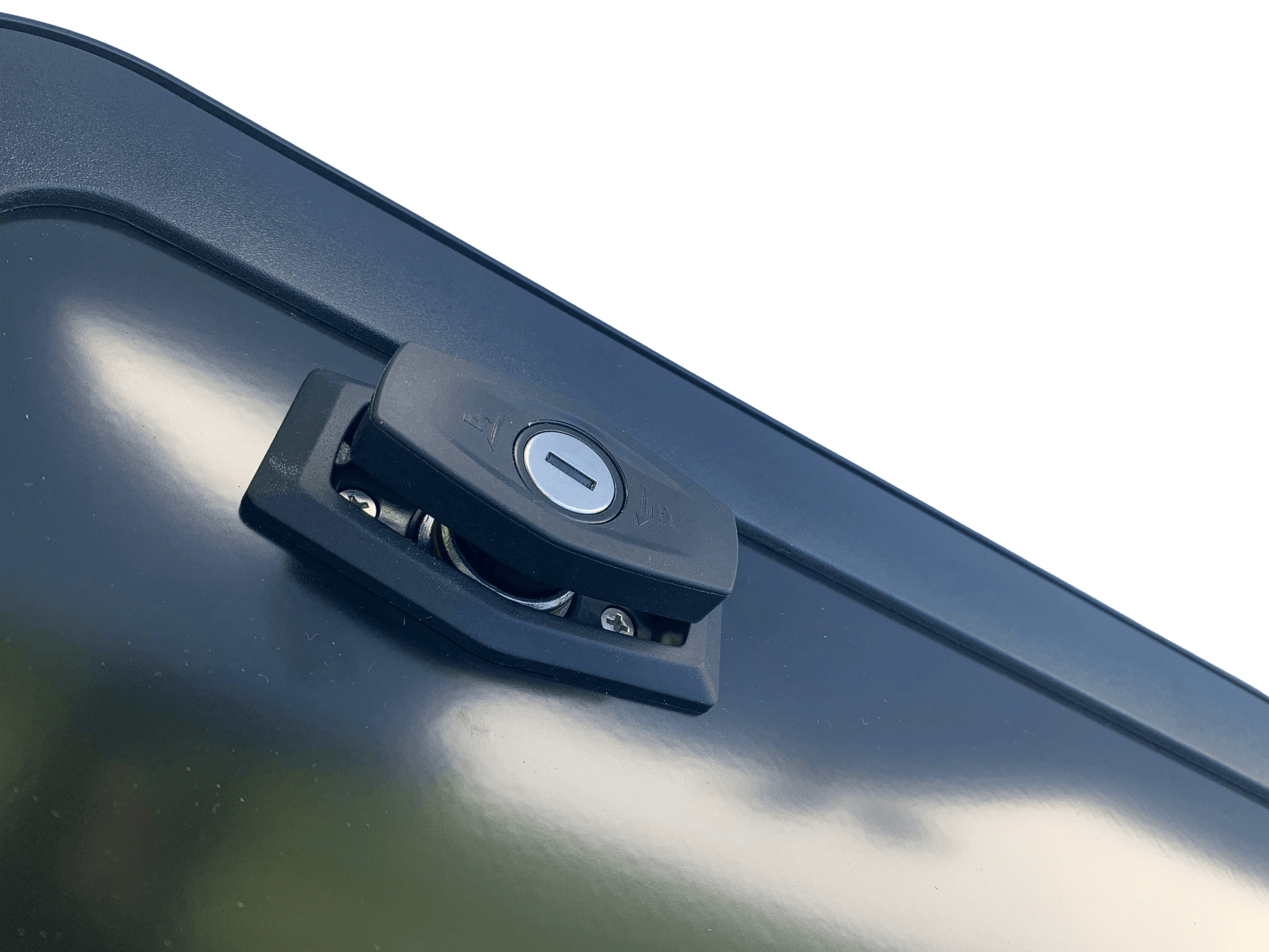

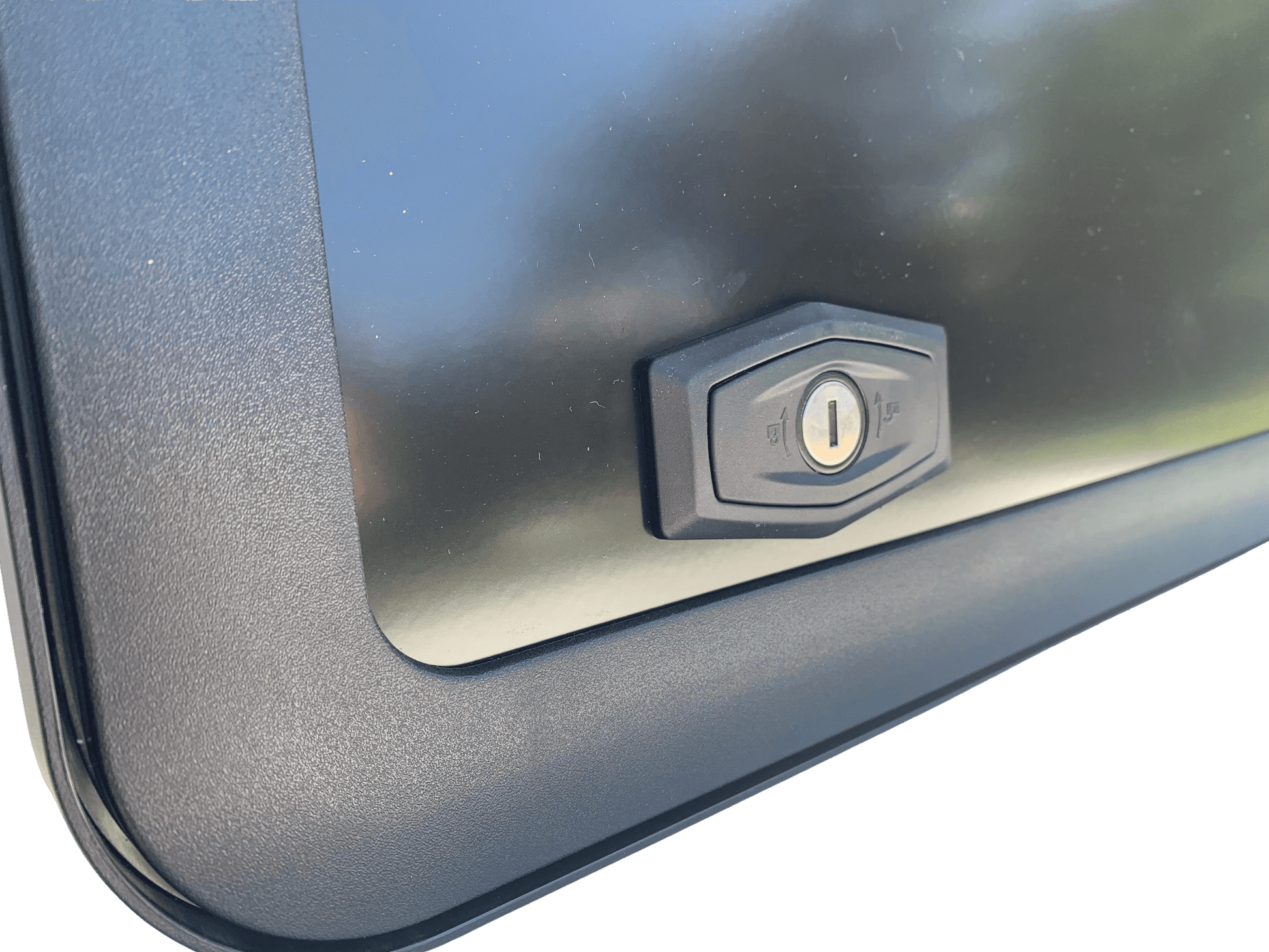

A stainless steel hinge shaft supports the opening mechanism, while self-tightening keyed mechanical locks secure the hatch when closed.

The complete assembly weighs 2.5kg.

Installation and Interior Finish

The mounting flange includes pre-drilled fixing holes, and the supplied internal flange neatly finishes the inside of the wall opening. The flange-mounted assembly accommodates different wall thicknesses.

For installation, the external flange is sealed against the caravan wall and secured through its mounting holes using suitable fixings and installation sealant.

Match the specified cut-out and R33 corner shape to the opening. Refer to the dimension drawing when marking a new installation.

Specifications

Specification	Details
Brand	SJRV
Product type	Caravan tunnel boot door / access hatch
Application	Caravan and motorhome storage or service access
Measurement order	Height × Width, shown in horizontal orientation
Overall frame height	383mm
Overall frame width	677mm
Overall depth	46mm
Installation cut-out height	347mm
Installation cut-out width	647mm
Corner radius	R33
Door panel	Aluminium foam sandwich construction
Exterior materials	UV-resistant
Hinge shaft	Stainless steel
Locking	Self-tightening keyed mechanical locks
Maximum opening angle	180°
Mounting orientation	Horizontal or vertical
Mounting flange	Pre-drilled fixing holes
Interior finish	Internal finishing flange included
Wall fitment	Flange-mounted design accommodates different wall thicknesses
Colours	Black or white
Weight	2.5kg
Electrical connection	Not required

Choosing Your Caravan Access Hatch

Read our Caravan Access Hatch & Service Door Buying Guide to compare hatch styles, frame sizes, cut-outs and finishes.

Browse our caravan access hatches and service doors for other storage hatch sizes and access options.

Frequently Asked Questions

Can I use this hatch to access caravan tunnel boot storage?
Yes. It provides external access to suitable tunnel boots, storage compartments and service areas in caravans and motorhomes.

Can the door be mounted horizontally or vertically?
Yes. It supports either mounting orientation. The dimensions listed above show the horizontal orientation.

Can I lock the hatch to secure the compartment?

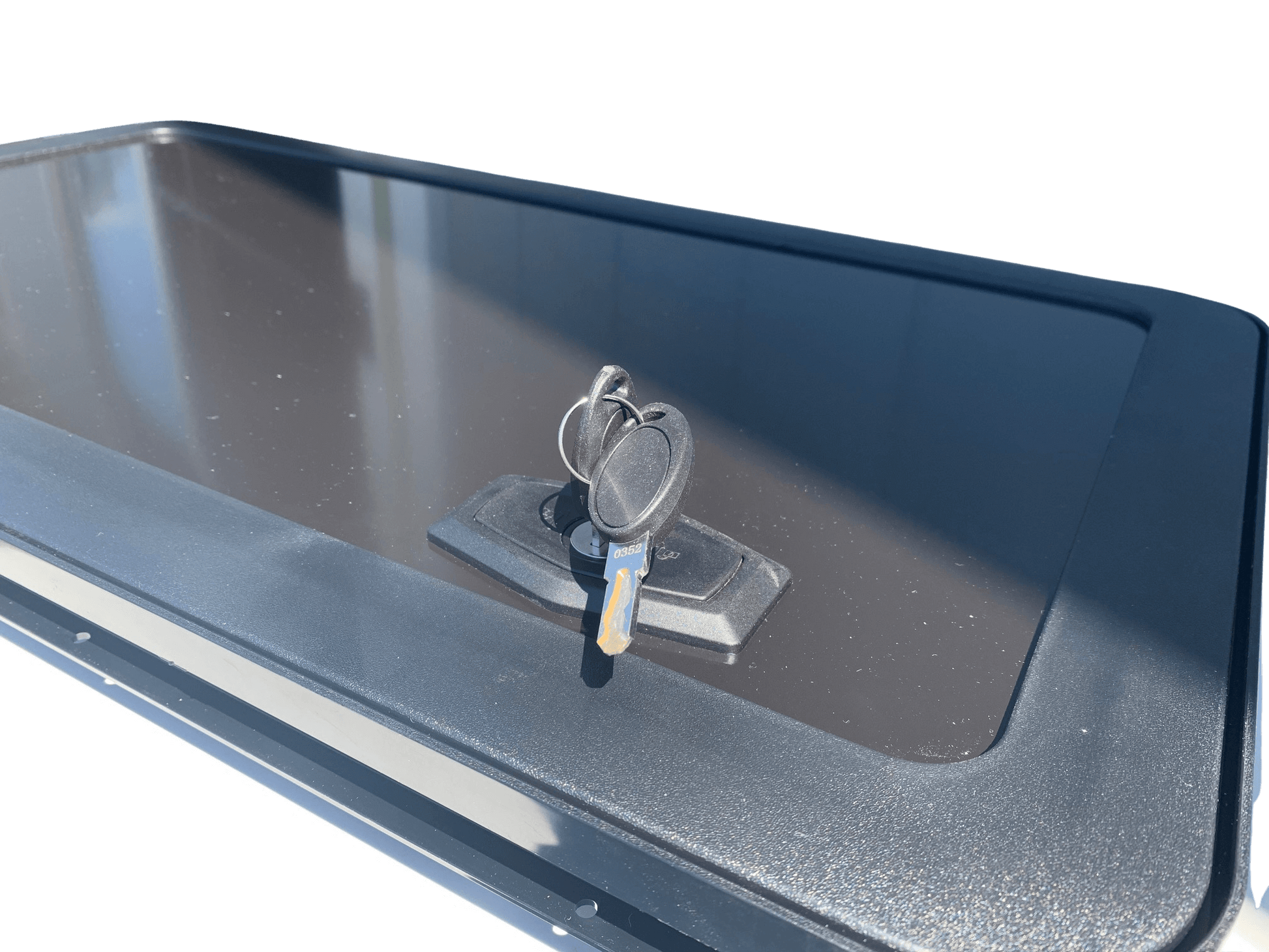

Yes. The door features self-tightening keyed mechanical locks.

Does the door open up to 180 degrees?
Yes. Its maximum opening angle is 180 degrees, provided surrounding fittings allow the panel to swing fully open.

Is an internal finishing flange included?
Yes. An internal flange is supplied to finish the inside of the wall opening. The external mounting flange also includes pre-drilled fixing holes.

Is this a guaranteed direct replacement for every caravan tunnel boot door?
No. The existing opening dimensions, corner shape, mounting surface and operating clearance must suit this hatch. Its specified cut-out is 347mm H × 647mm W in the horizontal orientation, with R33 corners.

Are the overall frame dimensions the same as the cut-out dimensions?
No. The overall frame measures 383mm H × 677mm W. The specified installation cut-out is 347mm H × 647mm W.

Does this hatch need a 12V electrical connection?
No. The hinge and keyed locks operate mechanically.
