SJRV Caravan Skylight 500 × 700mm – Blind, Flyscreen & LED

Large Caravan Skylight with Blind, Flyscreen and LED Lighting

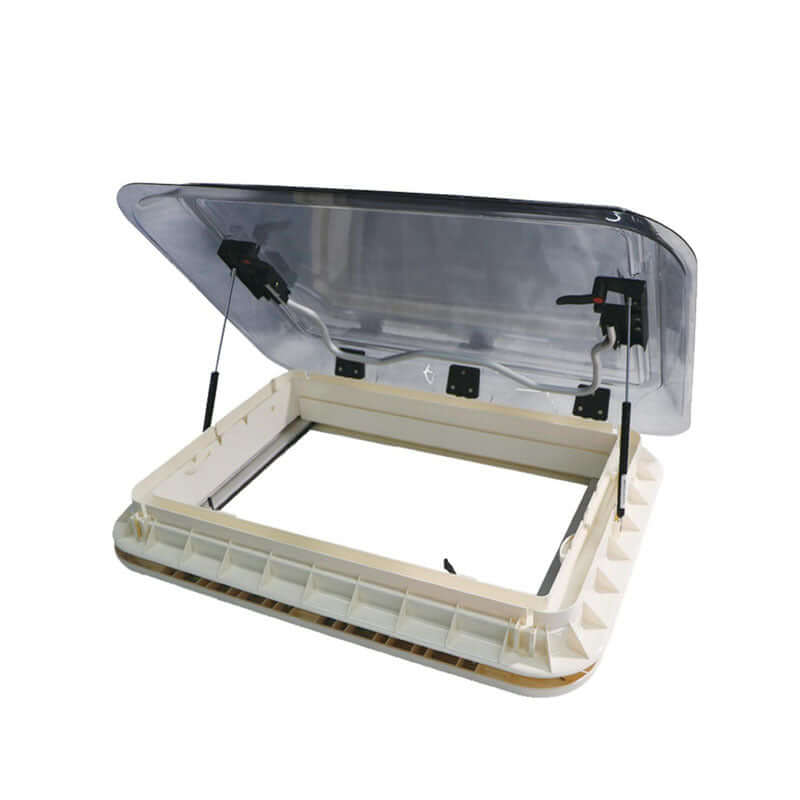

Bring overhead daylight and fresh air into your caravan or motorhome with the SJRV 500 × 700mm caravan skylight. This opening roof hatch combines a double-glazed, smoke-tinted acrylic lid with an integrated pleated block-out blind, flyscreen and 12V LED lighting.

The larger model offers more overhead glazing area than the SJRV 400 × 450mm skylight, making it an option for layouts with room for a larger roof opening.

Size and Roof Cut-Out

• Nominal skylight size: 500 × 700mm.

• Required roof cut-out: 502 × 702mm.

• Overall assembly dimensions: 645 × 835mm.

• Suitable roof thickness: 25–60mm.

The nominal size identifies the model. The required installation opening is 502 × 702mm, with the surrounding assembly extending beyond the opening.

Double-Glazed, Smoke-Tinted Acrylic Lid

The double-glazed acrylic lid allows natural light into the interior, while its smoke-tinted finish complements the skylight’s appearance.

UV-resistant construction and ASA inner and outer frames provide durable materials for this roof-mounted caravan skylight.

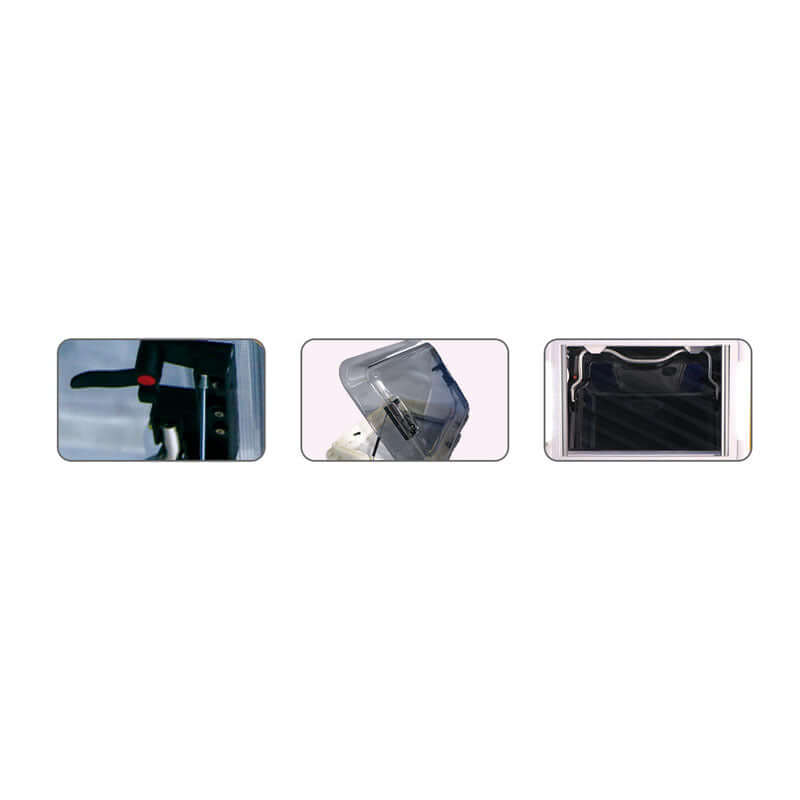

Manual Opening with Gas Struts

Open the lid for natural ventilation using the manual mechanism with gas-strut assistance. High-strength metal hinges support the lid, which opens up to 60°.

Manual settings provide open, ventilation, closed and locked positions. Push-button handles secure the hatch when closed.

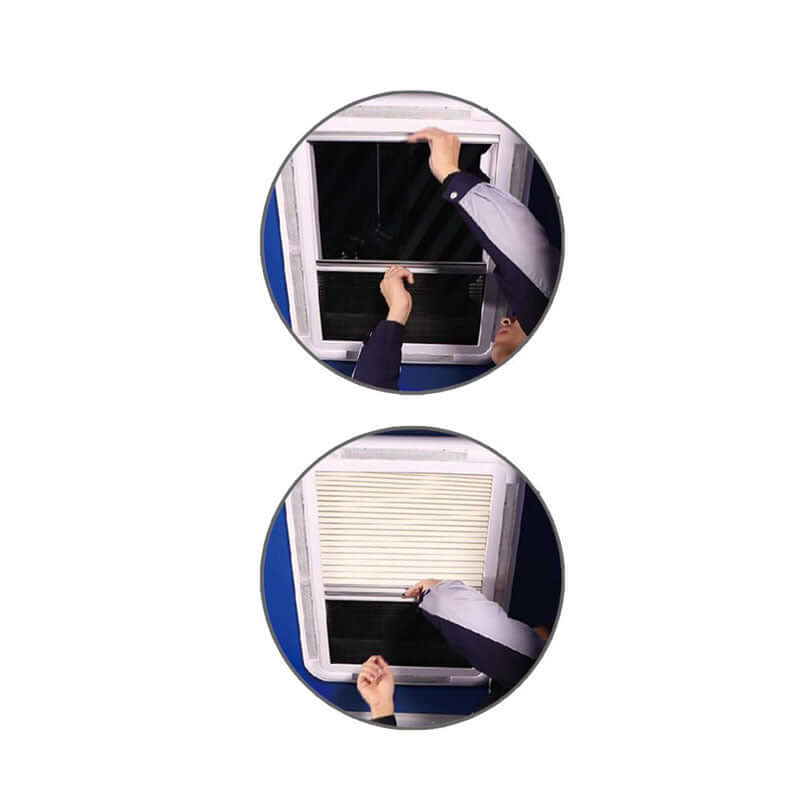

Pleated Block-Out Blind and Flyscreen

Draw the integrated block-out blind for privacy and control over incoming daylight, or use the flyscreen to enjoy ventilation while helping keep insects outside.

The blind and flyscreen operate independently and can connect magnetically for adjustment together.

Integrated 12V LED Lighting

Built-in LED lighting provides interior illumination after dark from a 12V DC supply.

The lid opens manually, so electrical power is required for the lighting rather than the opening mechanism.

Specifications

Specification	Details
Brand	SJRV
Product type	Caravan skylight / opening roof hatch
Nominal model size	500 × 700mm
Required roof cut-out	502 × 702mm
Overall assembly dimensions	645 × 835mm
Suitable roof thickness	25–60mm
Roof lid	Double-glazed, smoke-tinted acrylic
Inner and outer frames	ASA
UV-resistant construction	Yes
Opening mechanism	Manual, assisted by gas struts
Maximum opening angle	60°
Lid settings	Open, ventilation, closed and locked
Hinges	High-strength metal
Locking system	Push-button handles
Blind	Integrated pleated block-out blind
Flyscreen	Integrated
Blind and flyscreen operation	Independent or magnetically connected
Lighting	Built-in 12V DC LED
Powered extraction fan	No
Mounting screws	Included
Warranty	1 year

Compare Caravan Skylight Sizes

Read our Caravan Skylight & Roof Hatch Buying Guide to compare model sizes, installation openings and features.

For a smaller roof opening, explore the SJRV 400 × 450mm caravan skylight, or browse our caravan hatches and skylights collection.

Frequently Asked Questions

Does this skylight have a double-glazed lid?

Yes. It has a double-glazed, smoke-tinted acrylic roof lid.

Can I open it for natural ventilation?

Yes. The manually operated lid opens up to 60°, with gas struts assisting opening and closing.

Can I adjust the blind and flyscreen independently?

Yes. They operate independently and can also connect magnetically for adjustment together.

Does it include LED lighting?

Yes. Built-in LED lights connect to a 12V DC power supply.

Is it suitable for roof thicknesses from 25mm to 60mm?

Yes. The specified roof thickness range is 25–60mm, and mounting screws are included.

Is the required roof cut-out exactly 500 × 700mm?

No. That is the nominal model size. The required installation cut-out is 502 × 702mm.

Does it include an electric extraction fan?

No. Ventilation is provided naturally through the opening hatch. The electrical connection powers the LED lighting.

Does the lid open electrically?

No. It opens manually with assistance from gas struts.
