SJRV Caravan Service Hatch 331mm H × 379mm W – Black or White

Compact Caravan Service Hatch – Black or White

The SJRV caravan service hatch provides convenient external access to small storage compartments and service areas in caravans and motorhomes. It can also provide cassette toilet access where the opening and installation position suit the toilet system.

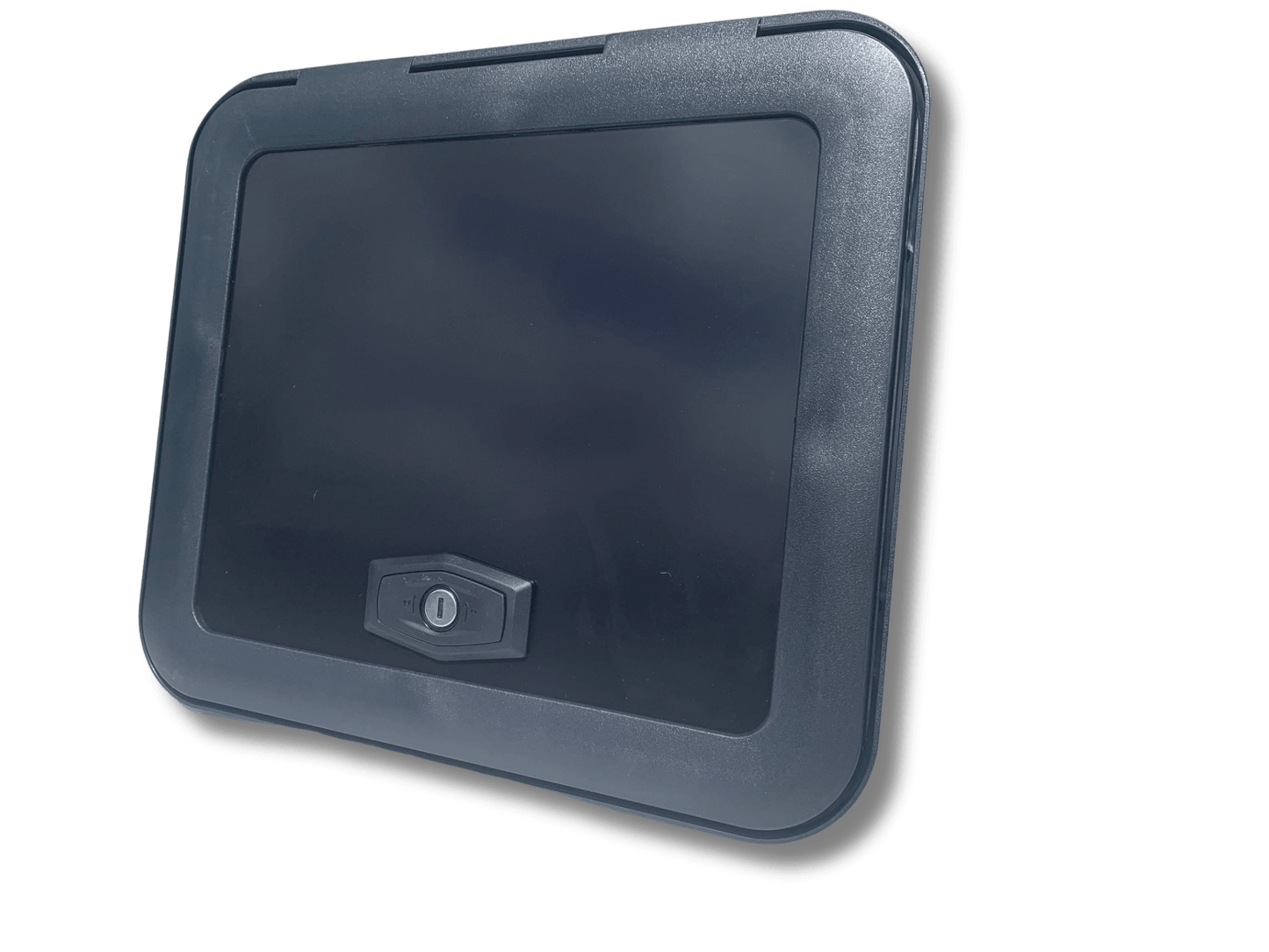

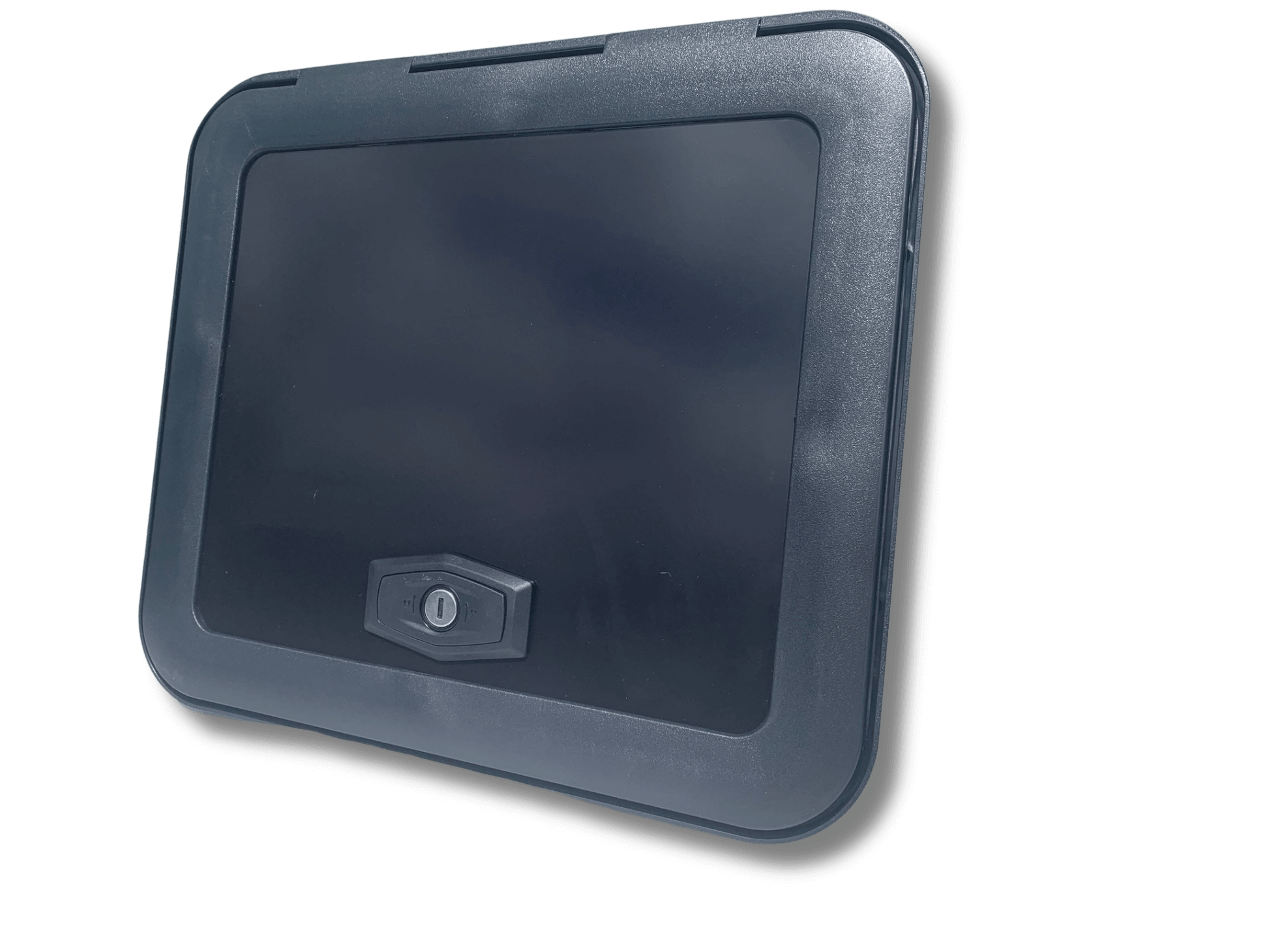

An aluminium foam sandwich panel, keyed mechanical lock and stainless steel hinge shaft combine in a compact door assembly available in black or white.

All measurements below are Height × Width:

• Overall frame: 331mm H × 379mm W.

• Installation cut-out: 297mm H × 349mm W.

• Overall depth: 46mm.

The outside frame overlaps the wall opening, so the overall frame size is larger than the required cut-out.

External Access to Storage and Service Compartments

Reach small storage spaces and service compartments from outside your caravan without accessing them through the interior.

For cassette toilet installations, position the hatch so there is enough clear space to withdraw the cassette and operate its handle.

Aluminium Foam Sandwich Panel

The door uses an aluminium foam sandwich panel for lightweight construction, with UV-resistant materials for exterior use.

Choose black or white to complement your caravan’s exterior. The complete assembly weighs 1.5kg.

Keyed Lock and Wide-Opening Hinge

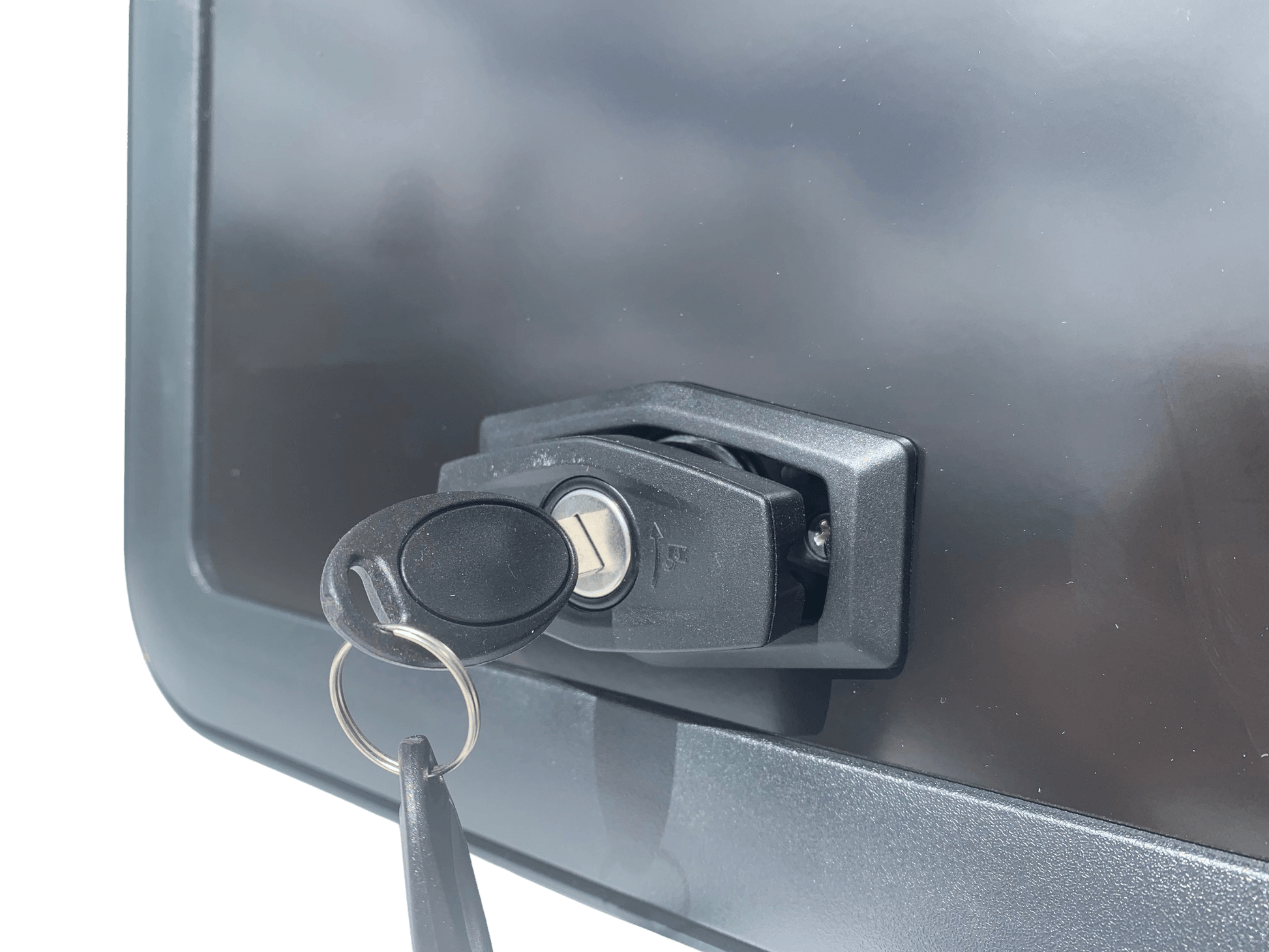

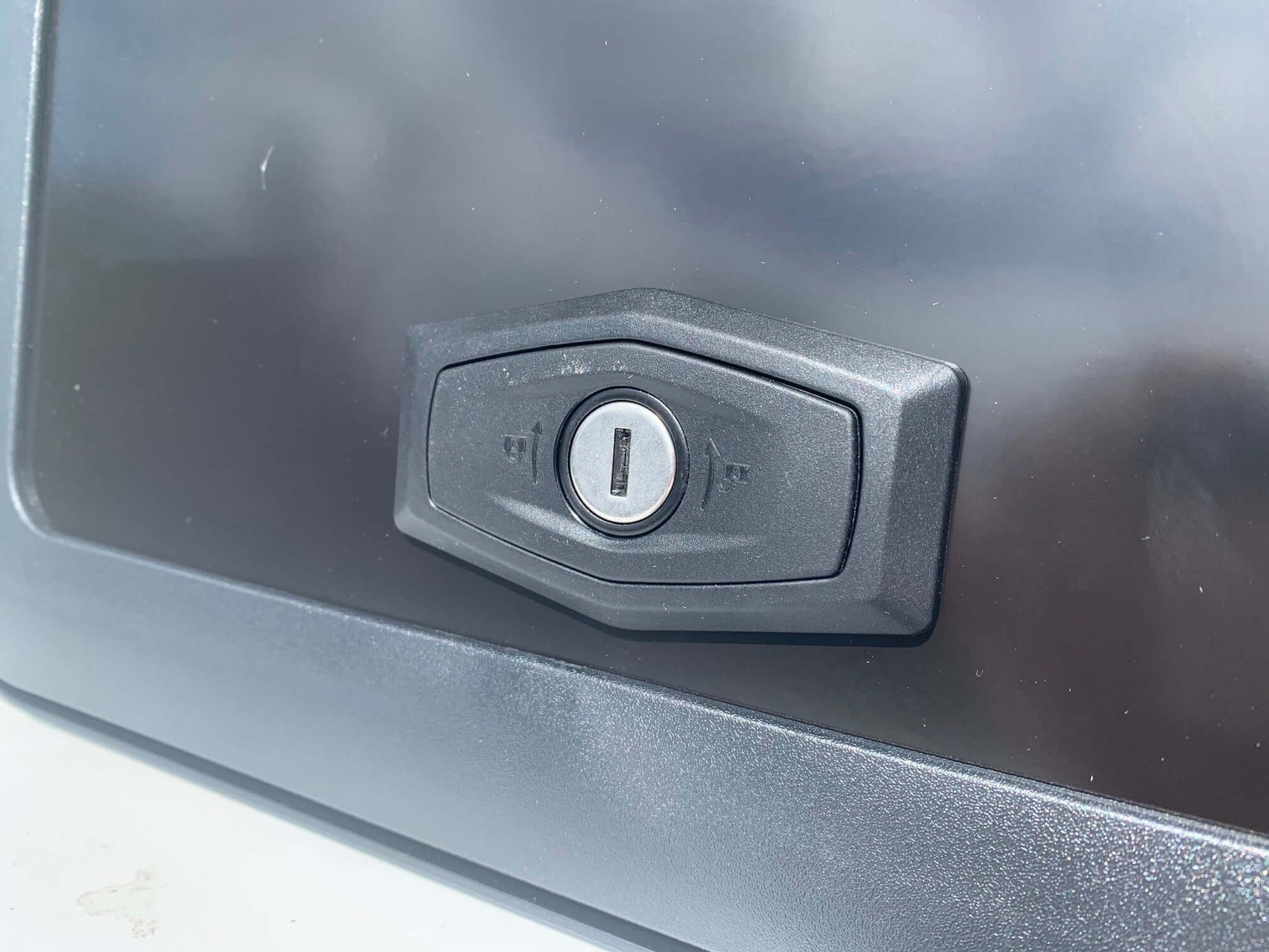

A self-tightening keyed mechanical lock secures the hatch when closed.

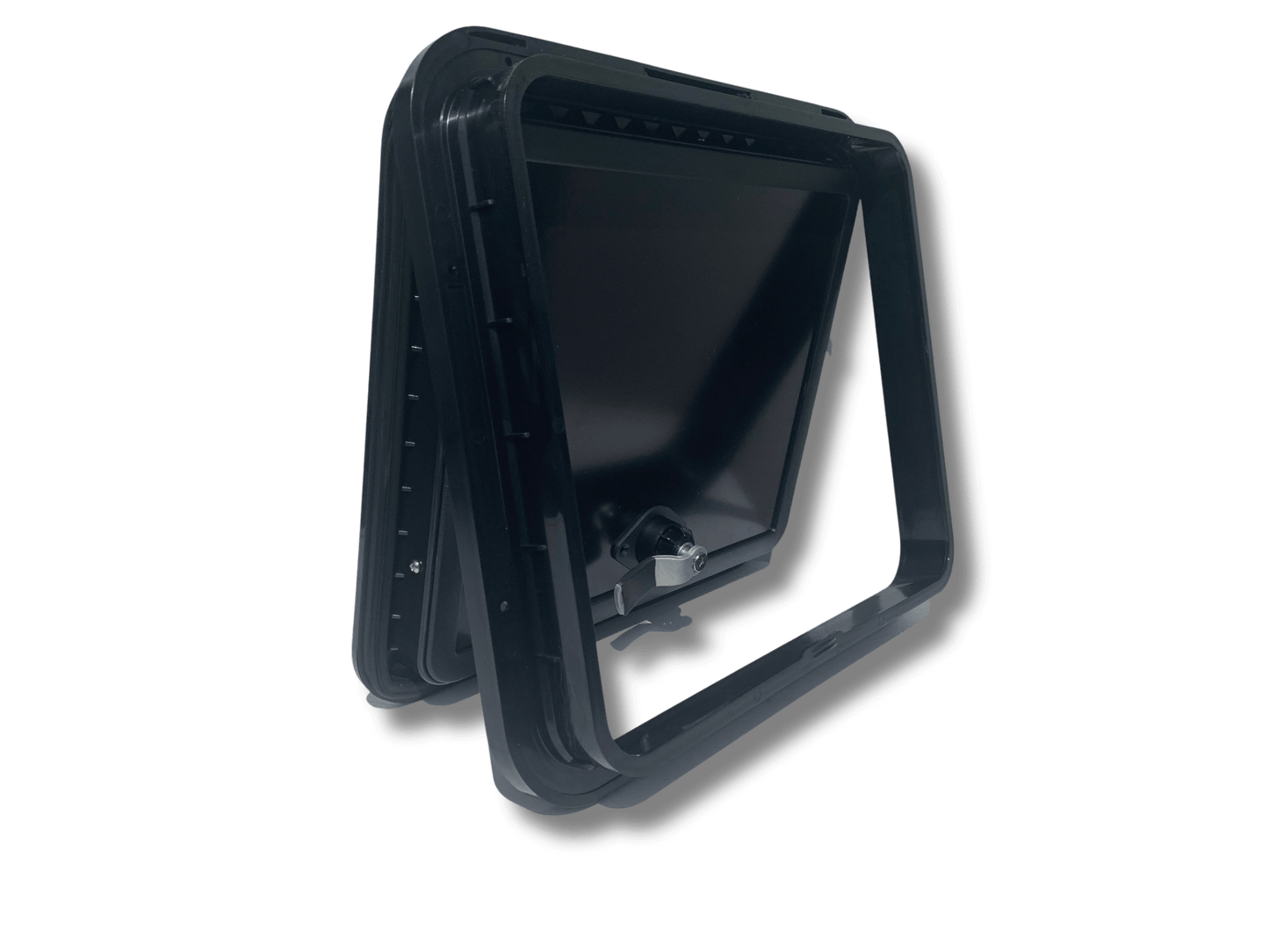

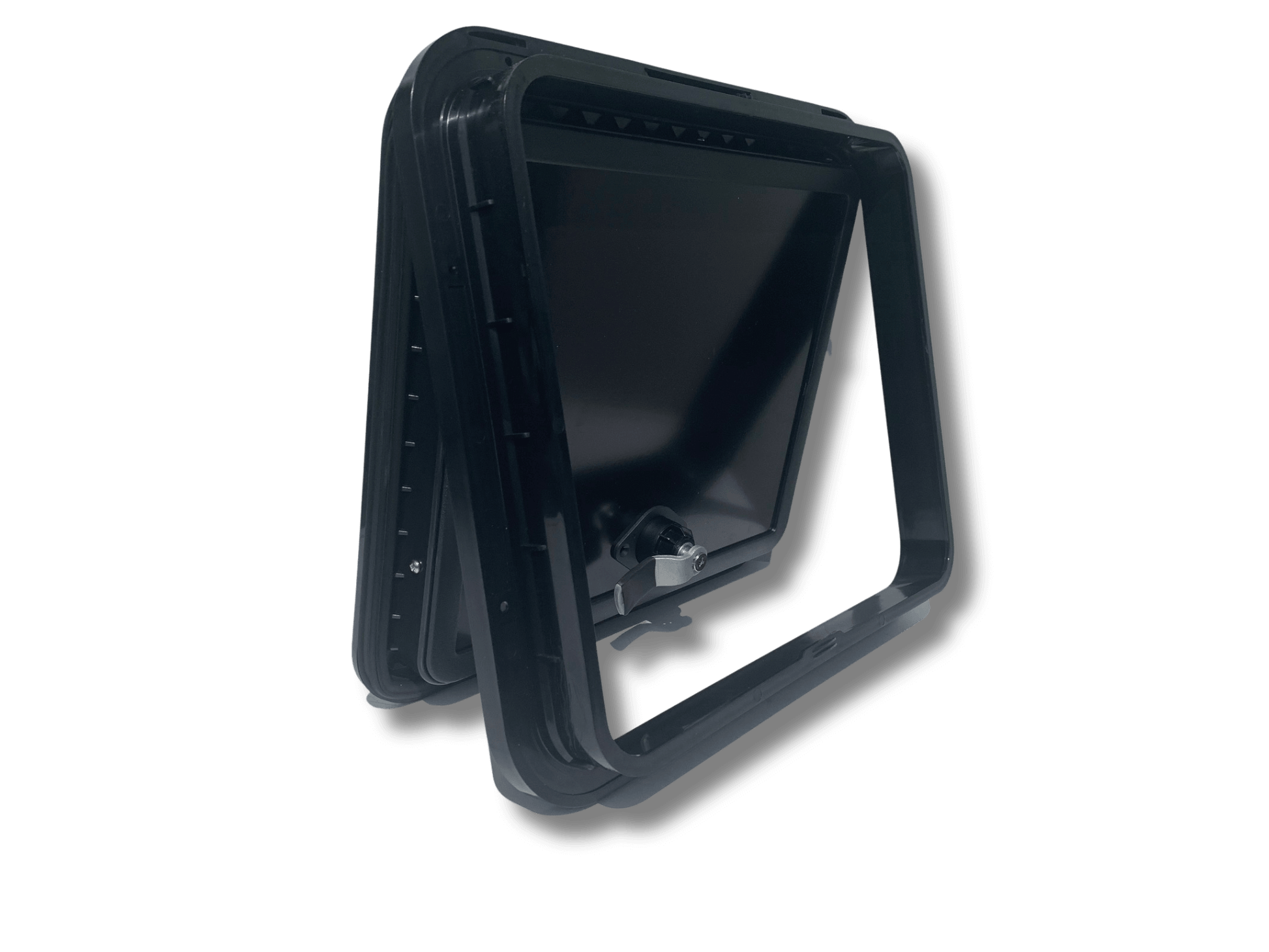

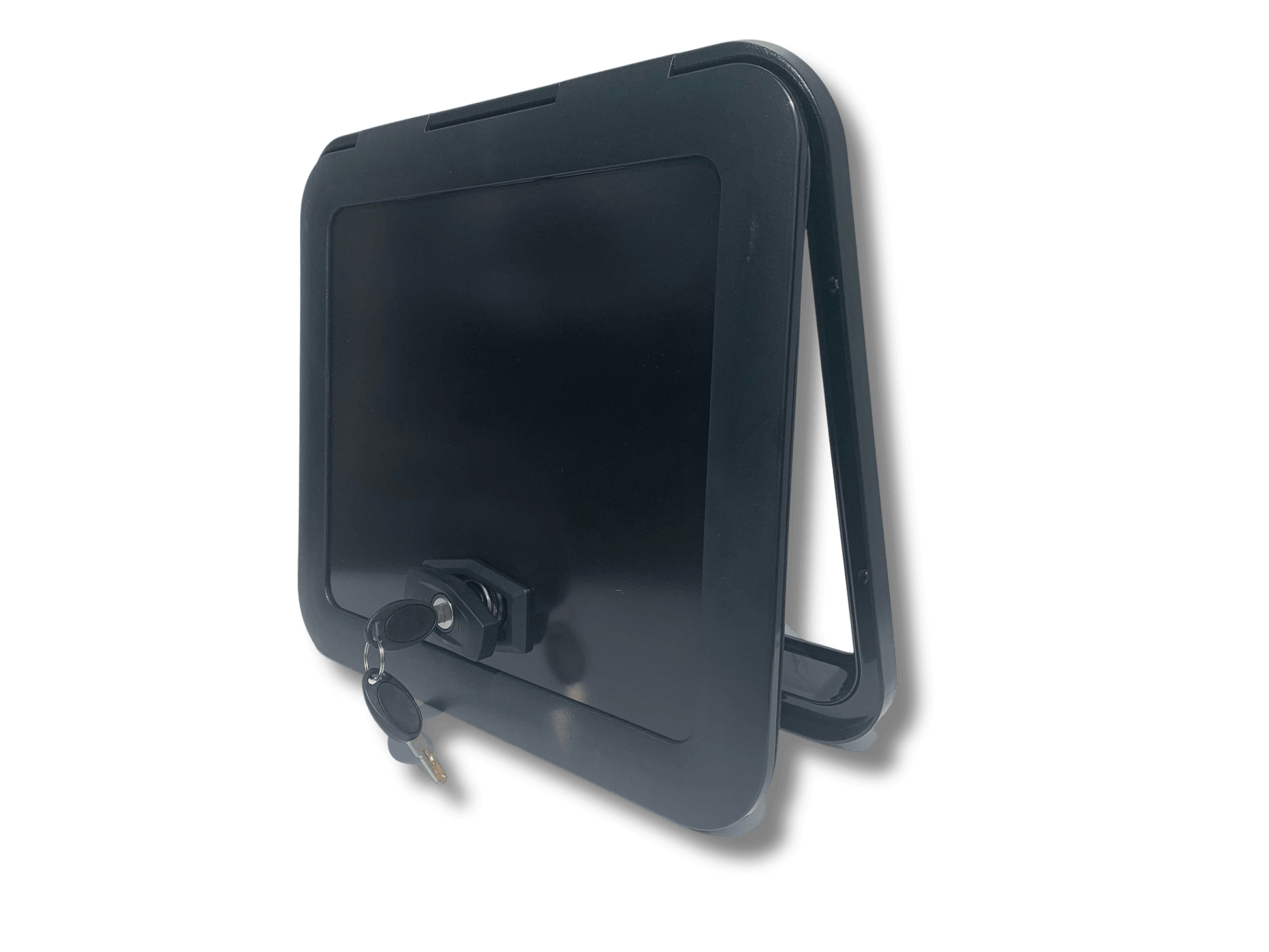

The stainless steel hinge shaft supports an opening angle of up to 180 degrees, allowing the panel to swing clear when there is sufficient space around the installation.

Installation and Interior Finish

The external mounting flange has pre-drilled fixing holes. An included internal flange provides a neat finish around the inside of the wall opening.

The flange-mounted design accommodates different wall thicknesses. The mounting flange is sealed against the caravan wall and secured through its fixing holes using suitable installation sealant and fixings.

For a replacement, match the specified cut-out and R33 corner shape to the existing opening. For a new installation, use the hatch’s dimension drawing to mark the opening and allow clearance for the frame, hinge and lock.

Specifications

Specification	Details
Brand	SJRV
Product type	Caravan service hatch / external access door
Applications	Small storage compartments, service access and suitable cassette toilet installations
Measurement order	Height × Width
Overall frame height	331mm
Overall frame width	379mm
Overall depth	46mm
Installation cut-out height	297mm
Installation cut-out width	349mm
Corner radius	R33
Door panel	Aluminium foam sandwich construction
Exterior materials	UV-resistant
Hinge shaft	Stainless steel
Locking	Self-tightening keyed mechanical lock
Maximum opening angle	180°
Colours	Black or white
Mounting	Flange-mounted, with pre-drilled fixing holes
Interior finish	Internal finishing flange included
Wall fitment	Flange-mounted design accommodates different wall thicknesses
Weight	1.5kg
Electrical connection	Not required

Choosing Your Caravan Access Hatch

Read our Caravan Access Hatch & Service Door Buying Guide to compare hatch styles, frame dimensions, cut-outs and finishes.

Need a larger door? Browse our caravan access hatches and service doors for other storage access sizes.

Frequently Asked Questions

Can I use this hatch for external access to a small storage compartment?
Yes. It provides external access to suitable storage compartments and service areas in caravans and motorhomes.

Can it be used as a cassette toilet access door?
Yes, where the hatch position and clear opening suit the toilet installation and allow the cassette to be removed.

Can I lock the hatch when it is closed?
Yes. It has a self-tightening keyed mechanical lock.

Does the door open up to 180 degrees?
Yes. The maximum opening angle is 180 degrees, provided surrounding fittings allow the door to swing fully open.

Is an internal finishing flange included?
Yes. An internal flange is included to finish the inside edge of the wall opening.

Are 331mm H × 379mm W the required cut-out dimensions?
No. Those are the overall frame dimensions. The specified installation cut-out is 297mm H × 349mm W, with R33 corners.

Is this a guaranteed direct replacement for every compact caravan service hatch?
No. The existing opening dimensions, corner shape, mounting surface and operating clearance must suit this hatch.

Does this hatch require a 12V electrical connection?
No. The hinge and keyed lock operate mechanically.
