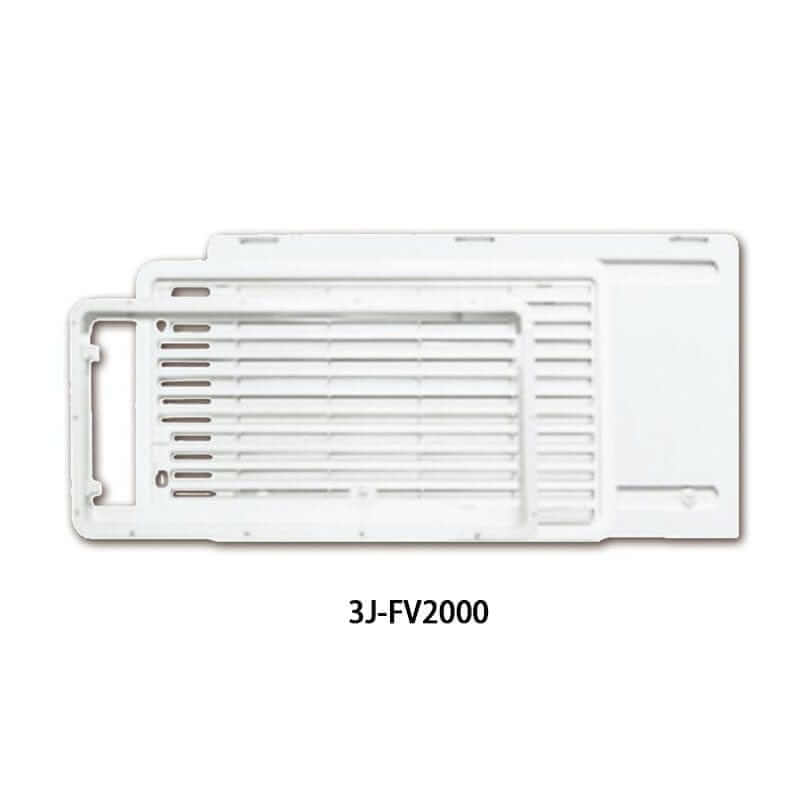

SJRV FV2000 Caravan Fridge Vent – 250 × 490mm Cut-Out

Medium Caravan Fridge Vent in Black or White

The SJRV FV2000 is a passive caravan fridge ventilation grille with a 250 × 490mm wall cut-out. It provides an opening for airflow through a suitable refrigerator compartment, helping warmed air move away from the fridge’s cooling components.

Larger than the compact FV1000, the FV2000 suits installations requiring a wider and taller ventilation opening without built-in electric fans.

Choose black or white to complement your caravan or motorhome. All height and width measurements below are stated as Height × Width.

Passive Airflow Without Electrical Wiring

The FV2000 allows air to pass through its ventilation grille without a motor or power connection.

In a refrigerator installation designed with lower and upper vents, the lower opening admits replacement air while warmed air rises towards the outlet. The FV2000 can form part of that arrangement where its size and design meet the refrigerator’s installation requirements.

There is no additional electrical load from the vent itself.

Help Release Heat Behind the Fridge

A caravan refrigerator needs a clear path for heat to leave its cooling components. Restricted ventilation can allow warmed air to accumulate inside the surrounding compartment.

The FV2000 provides a passive opening as part of that airflow path. Effective ventilation also depends on the position of the inlet and outlet, cabinet clearances and the route air takes behind the refrigerator.

For airflow planning and replacement advice, read our Caravan Fridge Vent Buying & Installation Guide.

Cut-Out Size and Overall Dimensions

• Wall cut-out: 250mm high × 490mm wide.

• Overall frame: 278mm high × 518mm wide.

• Overall depth: 42mm.

The cut-out measurement describes the required opening in the caravan wall. The overall measurement describes the outside of the vent assembly.

For a replacement installation, compare the existing opening, corner shape, fixing arrangement and available frame space with these dimensions.

Black or White Finish

The FV2000 is available in black or white through the product options.

Both finishes have the same listed dimensions and passive ventilation design, allowing you to choose the colour that suits your caravan exterior.

Choosing Between FV1000, FV2000 and FV3000

Choose the FV2000 when you need the medium-size passive vent with a 250 × 490mm cut-out.

The SJRV FV1000 small caravan fridge vent provides a more compact passive option with a 156 × 451mm cut-out.

The SJRV FV3000 fridge vent with twin 12V fans adds powered extraction. It has the same listed 250 × 490mm cut-out as the FV2000, with a greater overall depth of 58mm to accommodate its fan assembly.

Specifications

Specification	Details
Brand	SJRV
Model	FV2000
Supplier product code	3J-FV2000
Product type	Passive caravan fridge ventilation grille
Cut-out size — Height × Width	250 × 490mm
Overall size — Height × Width	278 × 518mm
Overall depth	42mm
Built-in electric fan	No
Electrical connection	Not required
Colours	Black or white
Application	Suitable caravan and motorhome fridge compartment installations

Frequently Asked Questions

Can the FV2000 provide ventilation behind a caravan fridge?

Yes. It provides a passive opening for airflow through a suitable refrigerator compartment.

Can it operate without electrical wiring?

Yes. The FV2000 has no electric fan and requires no power connection.

Can I choose black or white?

Yes. Both finishes are available through the product options.

Is the wall cut-out 250mm high × 490mm wide?

Yes. The listed cut-out is 250 × 490mm, stated as Height × Width.

Does it have the same listed cut-out as the FV3000?

Yes. Both use a 250 × 490mm cut-out. The FV3000 has twin fans and a greater overall depth, so rear clearance and electrical requirements differ.

Does the FV2000 include powered extraction fans?

No. It is a passive grille. Choose the FV3000 if you want built-in twin 12V extraction fans.

Is 278 × 518mm the required wall opening?

No. That is the overall frame size. The required cut-out is 250 × 490mm.

Is it a universal replacement for all other fridge vent brands?

No. Cut-out dimensions, frame sizes, fixing systems and installation requirements vary between products.

Browse the VanDIY caravan fridge vent collection to compare the complete SJRV range.
