28L Gas and Electric Hot Water for Caravans and Motorhomes
Enjoy hot water for showers, washing dishes and everyday touring with the Global Heritage WTD128 caravan hot water system.
Its 28-litre storage tank combines Universal LPG heating with a 240V electric element, providing a choice of heating sources at powered sites or away from mains electricity. Gas and electric heating can also operate together for faster initial heat-up.
LPG or Electric Heating
Use LPG when mains power is unavailable, or select electric heating when connected to a suitable AC supply.
The 1.4kW electric element operates on 220–240V AC. The system also requires a 12V DC connection for its controls, with a listed DC input of 0.65A.
Faster Initial Heating with Combined Operation
From a starting water temperature of 20°C, the approximate time to reach 65°C is:
| Heating source | Approximate time |
|---|---|
| LPG gas | 58 minutes |
| Electric | 50 minutes |
| Gas and electric together | 28 minutes |
Combined operation is intended for initial heat-up. Once the preset temperature is reached, the manual specifies switching off gas heating when continuing with electric operation.
28-Litre Storage Tank
The tank stores 28 litres of water, with a maximum water temperature of 65°C.
This is a storage hot water system: it heats water within the tank for use through the caravan’s plumbing. The amount of mixed warm water available depends on incoming water temperature, stored temperature and usage.

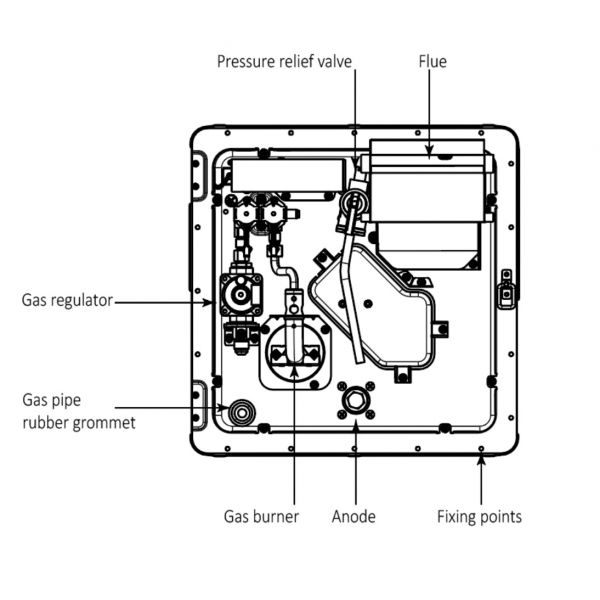

Integrated Controls and Service Access

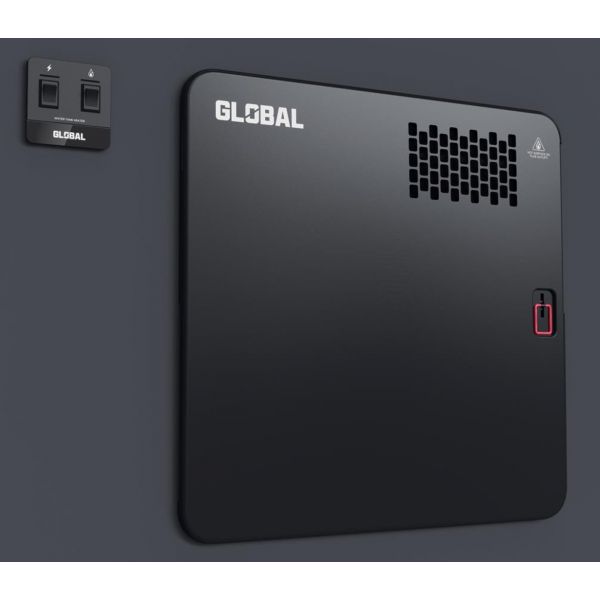

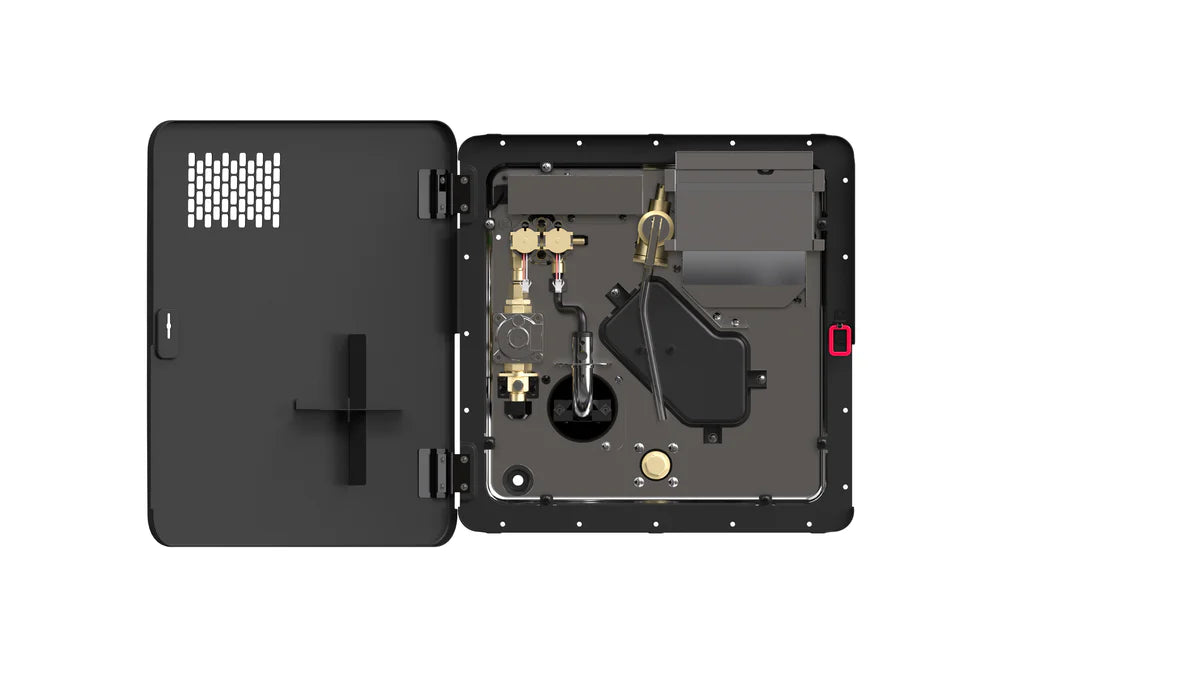

The WTD128 includes a user-friendly control panel, integrated gas regulator and hinged black exterior access door.

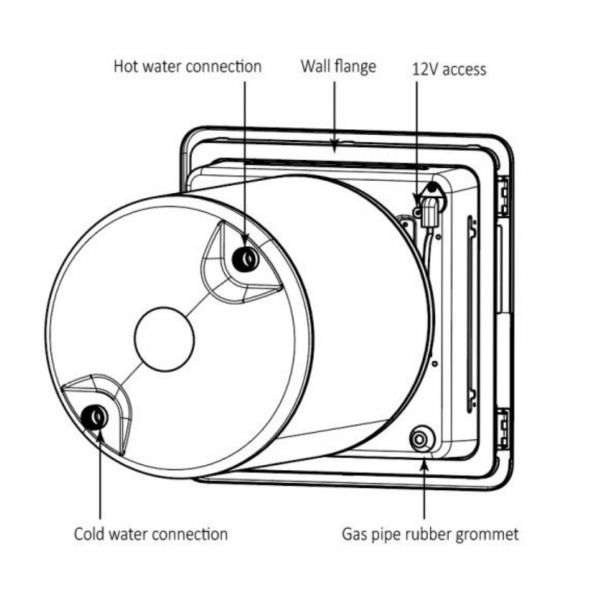

Rear water connections and a securing strap form part of its installation arrangement.
Sacrificial Anode for Tank Protection
A sacrificial anode helps protect the tank against corrosion.
Periodic anode inspection and replacement, together with the maintenance described in the manual, support ongoing tank care.
Compact Installation Dimensions
The unit measures 390mm high × 390mm wide × 550mm deep, with a 325 × 325mm wall cut-out.
Listed unit weight is 12.2kg, before adding the water held in the tank.
Specifications
| Specification | Details |
|---|---|
| Brand | Global Heritage |
| Model | WTD128 |
| System type | Storage hot water |
| Tank capacity | 28L |
| Heating sources | Universal LPG and electric |
| Combined operation | Gas and electric for initial heat-up |
| Gas consumption | 7.5MJ/h |
| Gas heating output | 1.82kW |
| Listed gas efficiency | 90% |
| Electric heating power | 1.4kW |
| Electric supply | 220–240V AC |
| DC input | 12V, 0.65A |
| Maximum water temperature | 65°C |
| Height | 390mm |
| Width | 390mm |
| Depth | 550mm |
| Wall cut-out | 325 × 325mm |
| Listed unit weight | 12.2kg |
| Water connections | Rear |
| Exterior door | Hinged, black |
| Integrated gas regulator | Included |
| Sacrificial anode | Included |
| Securing strap | Included |
| Warranty | 3 years |
Manual and Installation Information
Download the WTD128 operating and installation manual for installation dimensions, operating instructions and maintenance requirements.
Gas and electrical installation must be completed by appropriately qualified tradespeople.
Choosing Your Caravan Hot Water System
Read our Caravan Hot Water System Buying Guide to explore heating options, tank capacity, heat-up times and installation requirements.
Browse our caravan hot water systems collection.
Frequently Asked Questions
Can I heat water using LPG when camping away from mains power?
Yes. Universal LPG provides the heat source, with a 12V DC connection required for the controls.
Can I use electric heating at a powered site?
Yes. The 1.4kW electric element operates on 220–240V AC.
Can gas and electric heating work together?
Yes. Combined operation provides faster initial heating. Follow the manual’s instructions for switching to electric-only operation after heat-up.
Does it have a 28-litre tank?
Yes. Its nominal storage capacity is 28L.
Does it include a sacrificial anode?
Yes. The anode helps protect the tank against corrosion and requires periodic maintenance.
Is this an instantaneous hot water system?
No. It heats and stores water in its tank.
Can the electric element operate directly from 12V DC?
No. The element requires 220–240V AC. The 12V connection supplies the controls.
Is the sacrificial anode maintenance-free?
No. It needs periodic inspection and replacement as described in the manual.
