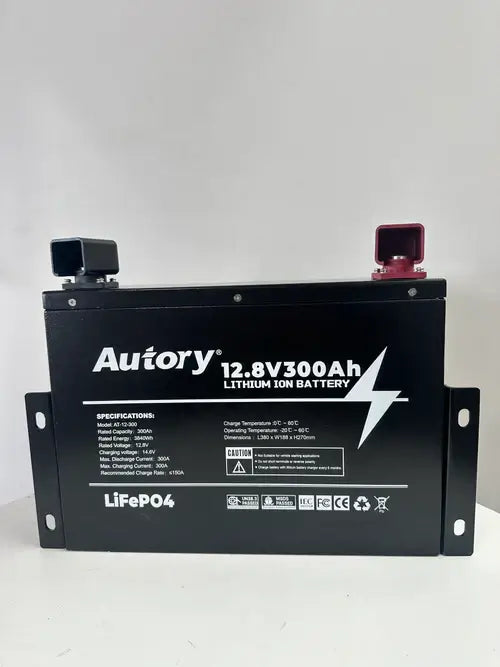

Autory 300Ah Lithium Caravan Battery – 12.8V LiFePO4, Metal Case
Autory 300Ah Lithium Caravan Battery – 12.8V LiFePO4, Metal Case
Couldn't load pickup availability
Click above to bundle products and get the best possible supply and delivery quote. No commitment !
300Ah LiFePO4 Battery for Caravan and Off-Grid Power
Build a larger energy reserve for your caravan, motorhome or off-grid setup with the Autory AT-12-300 lithium battery. It provides 300Ah capacity and 3840Wh of nominal energy storage in an all-metal enclosure with integrated mounting brackets.
A-grade LiFePO4 cells and a built-in battery management system combine with up to 300A discharge capability for demanding 12V power systems.
Pickup from Brisbane or Melbourne
This battery is available for pickup from our Brisbane or Melbourne warehouse only. Due to its weight and dangerous-goods freight classification, delivery is not offered for this item.
3840Wh Nominal Energy Storage
The AT-12-300 has a nominal voltage of 12.8V and a capacity of 300Ah.
It provides three times the nominal storage of the Autory 100Ah model and 50% more than the 200Ah model. That larger reserve supports setups with greater daily consumption or longer periods between charging opportunities.
Connected loads can include fridges, lighting, pumps, fans and inverter-powered appliances. Actual runtime depends on consumption, charging input and system losses.
Up to 300A Discharge Current
The battery supports a maximum discharge current of 300A.
For inverter use, select the complete system around appliance demand, including starting loads, conversion losses, cabling and protection. Stored capacity and maximum current are separate considerations when planning the installation.
A-Grade LiFePO4 Cells and Built-In BMS
Autory uses A-grade lithium iron phosphate cells with an integrated battery management system.
The BMS provides overcharge, over-discharge, temperature and short-circuit protection, together with cell balancing.
Metal Case and Integrated Mounting Brackets
The all-metal enclosure includes integrated brackets for securing the battery in its installation.
Dimensions are 380mm long × 188mm wide × 270mm high. The battery shares the 200Ah model’s listed width, with additional length and height accommodating its larger capacity.
IP67-Rated Enclosure
The enclosure is rated IP67 for dust and water ingress protection. The supporting laboratory report is available below, alongside the battery test report and accompanying compliance certificate.
Lithium-Compatible Charging
The listed charge voltage is 14.6V, with a maximum charging current of 300A.
Use mains chargers, solar controllers or DC–DC chargers compatible with the battery’s LiFePO4 charging requirements. Maximum charging current is a limit, rather than a required charging rate.
Specifications
| Specification | Details |
|---|---|
| Brand | Autory |
| Model | AT-12-300 |
| Battery chemistry | LiFePO4 — lithium iron phosphate |
| Cell grade | A-grade |
| Nominal voltage | 12.8V |
| Nominal capacity | 300Ah |
| Nominal energy storage | 3840Wh |
| Charge voltage | 14.6V |
| Maximum charging current | 300A |
| Maximum discharge current | 300A |
| Discharge cut-off voltage | 10V |
| Case | Metal |
| Enclosure rating | IP67 |
| Mounting brackets | Integrated |
| Battery management system | Built-in, with cell balancing |
| Length | 380mm |
| Width | 188mm |
| Height | 270mm |
| Warranty | 3-year return-to-base replacement warranty |
| Availability | Pickup from Brisbane or Melbourne warehouse only |
Download Test Reports and Compliance Documentation
The IEC report lists AT-12-300 among its model references and records testing performed on AT-12-200. It reports passing results for the assessed requirements, with battery-system safety analysis under clause 8.1 excluded from its scope.
The IP67 report lists the AT-12-200/100/235/300 model family and records passing ingress-test results for the submitted samples.
Learn more in IEC 62619 — Why It Matters for Lithium Batteries.
Three-Year Replacement Warranty
This battery includes a three-year return-to-base replacement warranty, subject to testing.
If the returned battery is confirmed faulty, a replacement battery will be supplied. Return freight to VanDIY is at the customer’s expense, and freight for the replacement is covered by VanDIY.
If testing finds no fault, the customer pays the freight to have the battery returned. Replacement batteries retain the balance of the original warranty period.
Compare Caravan Lithium Batteries
Read our Caravan Lithium Battery Buying Guide to compare capacities, dimensions and power requirements.
Explore the smaller Autory 100Ah battery and Autory 200Ah battery.
Browse our caravan lithium batteries collection, or read the Autory parallel-connection guide.
Frequently Asked Questions
Does this battery provide 300Ah capacity?
Yes. It has a nominal capacity of 300Ah at 12.8V, equivalent to 3840Wh of nominal energy storage.
Does it support up to 300A discharge current?
Yes. Its specified maximum discharge current is 300A.
Does it include a metal case and built-in BMS?
Yes. It combines an all-metal enclosure with a battery management system and integrated mounting brackets.
Can I download its testing documents?
Yes. The battery test report, accompanying compliance certificate and IP67 ingress report are linked above.
Does it include a three-year replacement warranty?
Yes. It includes a three-year return-to-base replacement warranty, subject to the terms above.
Is delivery available for this battery?
No. This item is available for pickup from our Brisbane or Melbourne warehouse only.
Does 300Ah guarantee a fixed number of days off-grid?
No. Runtime depends on appliance consumption, charging input and system losses.
Does the battery directly supply 240V AC?
No. It supplies nominal 12.8V DC. Running 240V appliances requires a suitable inverter and electrical system.
