SJRV Double Manual Caravan Step with LED Light – 200kg

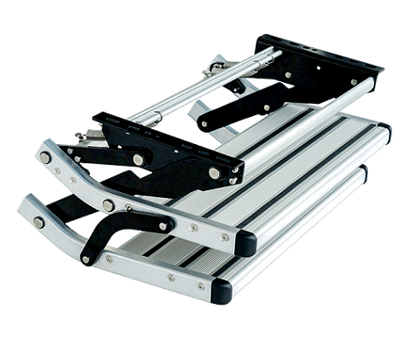

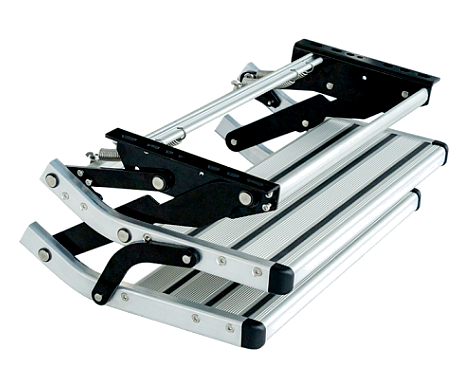

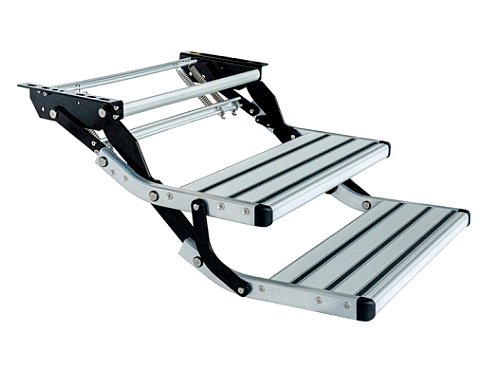

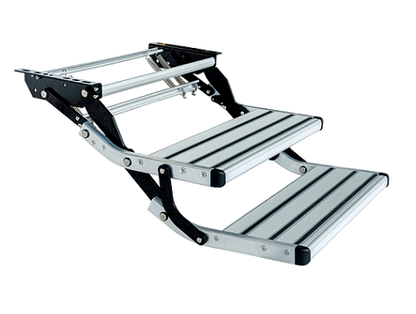

Double Manual Caravan Step with LED Light

Make entering and leaving your caravan easier with the SJRV double manual caravan step. Two folding aluminium treads provide intermediate footholds between the ground and your doorway, helping divide a higher entrance into more manageable stepping distances.

Designed for permanent mounting beneath caravans, motorhomes and RVs, this double folding step opens and retracts manually. Integrated LED lighting helps illuminate the entry area after dark.

Choose black or silver to suit your vehicle.

Two Treads for Higher Caravan Entrances

A double caravan step provides an additional stepping level where a single tread would leave too large a gap. The SJRV assembly has a total extended drop of 280mm, with the final ground-to-tread distance determined by your vehicle’s mounting height.

The two-step arrangement can make access more comfortable when entering and leaving a higher caravan or motorhome.

Aluminium Treads with Anti-Slip Grip

High-strength aluminium tread profiles provide a sturdy stepping surface with anti-slip grip. The assembly has a maximum static load capacity of 200kg.

Each tread is 530mm wide, with an overall assembly width of 555mm.

Integrated LED Lighting

The built-in LED strip helps make the step area visible in low-light conditions, providing useful illumination when returning to your caravan at night.

The lighting is an electrical feature; opening and closing the step remains manual.

Manual Folding and Compact Storage

Extend the steps by hand when parked and fold them beneath the vehicle before travelling. The assembly stays attached to your caravan, so there is no separate portable step to carry or pack away.

When retracted, the step measures approximately 403mm front to back and 246mm high.

Mounting Hardware Included

The SJRV double manual step supports chassis or underfloor mounting. Stainless steel bolts, nuts and washers are supplied for installation.

Black and silver finish options let you match the step to your caravan’s exterior.

Specifications

Specification	Details
Brand	SJRV
Step type	Double manual folding caravan step
Stepping levels	Two
Maximum static load	200kg
Tread material	High-strength aluminium with anti-slip profiles
Overall width	555mm
Tread width	530mm
Total extended drop	280mm
Closed height	Approximately 246mm
Retracted depth	Approximately 403mm
Operation	Manual extension and retraction
Lighting	Integrated LED strip
Mounting	Chassis or underfloor
Included hardware	Stainless steel bolts, nuts and washers
Colours	Black or silver

Need Help Choosing a Caravan Step?

Read our caravan steps buying guide to compare single and double steps, manual and electric operation, and the measurements that affect fitment.

If one tread suits your entrance, see the SJRV single manual caravan step with LED light. For other options, browse our complete caravan steps range.

Frequently Asked Questions

Can this double caravan step support up to 200kg?

Yes. The SJRV double manual step has a maximum static load capacity of 200kg.

Can two treads make a higher caravan entrance easier to use?

Yes. The additional tread divides the climb into more stages when the step’s mounting position suits your doorway height.

Does the step fold away for travel?

Yes. Both treads retract manually beneath the vehicle. The assembly measures approximately 246mm high when closed.

Does it include LED lighting?

Yes. A built-in LED strip helps illuminate the step area for access after dark.

Are mounting bolts, nuts and washers included?

Yes. Stainless steel bolts, nuts and washers are supplied. The assembly supports chassis or underfloor mounting.

Does this double step extend and retract electrically?

No. You open and close it manually. The LED lighting is separate from the folding mechanism.

Is this a freestanding portable caravan step?

No. It is designed to remain permanently mounted beneath your caravan, motorhome or RV.

Will it directly replace every existing double caravan step?

No. Replacement suitability depends on the mounting positions, dimensions and clearance available on your vehicle.
