SJRV Caravan Window 300mm H × 900mm W – Blind & Flyscreen

Caravan Window — 300mm High × 900mm Wide

Add daylight and ventilation to a shallow wall opening with the SJRV double-glazed acrylic caravan window. Its wide landscape proportions provide a useful window area where the available height is limited.

This model’s nominal size is 300mm high × 900mm wide. All VanDIY window sizes are listed as Height × Width (H × W), in millimetres.

The hinged push-out panel comes with supporting struts, locking handles, an integrated block-out blind and a flyscreen. It suits replacement installations and new caravan builds requiring this size and profile.

Shallow Landscape Format

At 300mm high and 900mm wide, this window provides a broad opening without the height of a larger living-area window.

Its proportions can suit wall layouts constrained by cabinetry or other fittings, provided there is room for the frame, interior blind assembly and outward-opening panel.

Double-Glazed Flat Acrylic

The double-glazed acrylic panel helps reduce heat transfer while providing a lightweight glazing option for caravan and RV use.

UV-resistant construction suits an exterior installation. The flat acrylic panel and black exterior frame coordinate with other SJRV windows in the range.

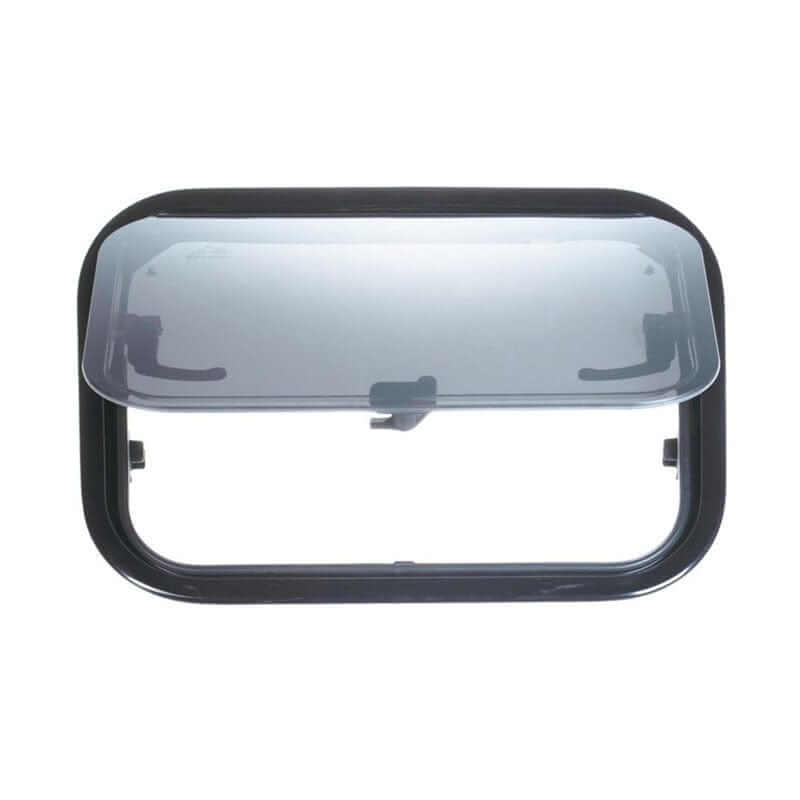

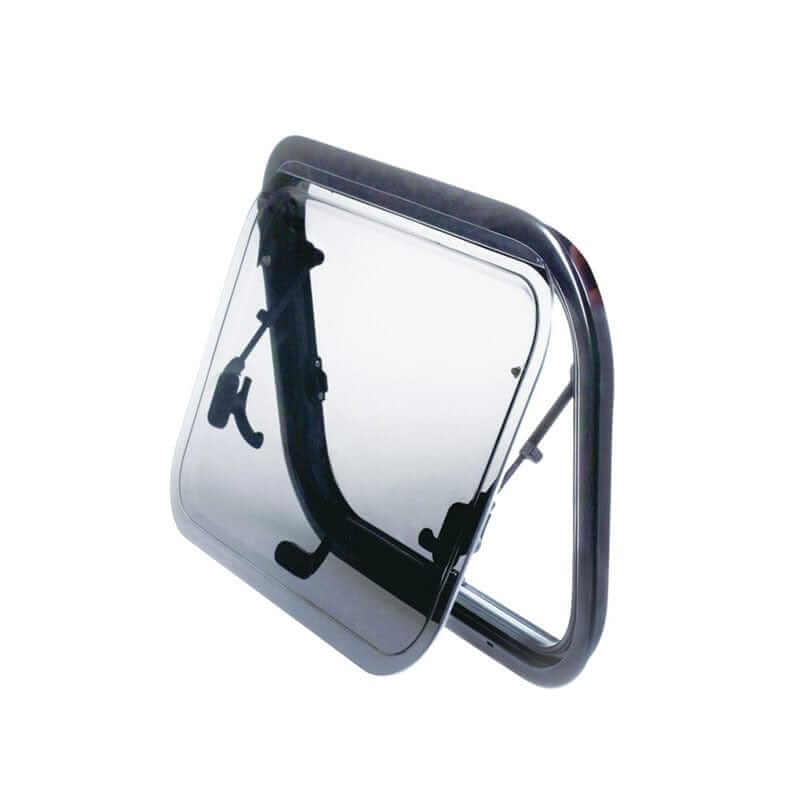

Push-Out Ventilation

The hinged panel opens outward to admit fresh air. Supporting struts hold it open at the required position, allowing you to adjust ventilation.

Push-button locking handles secure the window when closed.

Allow space outside for the panel to open, and close and secure it before travelling.

Integrated Block-Out Blind and Flyscreen

The pull-down block-out blind provides privacy and reduces unwanted light. Its reflective backing helps manage incoming sunlight.

The insect screen allows airflow while helping keep mosquitoes and other insects outside. The blind and screen operate independently or connect together for positioning.

Both are integrated into the interior assembly, keeping the privacy and insect-screening systems together with the window.

Aluminium Frames and EPDM Seal

The window combines a black powder-coated aluminium alloy outer frame with a white aluminium alloy inner frame.

An EPDM rubber seal around the outer frame forms part of the weather-sealing system. Correct mounting and installation sealing complete the fit to the caravan wall.

Height × Width and Profile Selection

This is the 300mm high × 900mm wide model.

Nominal window size, installation cut-out and overall frame dimensions are separate measurements. Use the selected profile’s installation drawing when preparing the opening.

This size is listed in radius and square profiles. The supplier specifies:

• Radius profile: suitable for 25–40mm wall thickness.

• Square profile: suitable for 30–40mm wall thickness.

Match the profile and wall thickness as well as the opening’s height and width.

Specifications

Specification	Details
Brand	SJRV
Window style	Hinged push-out
Format	Shallow landscape
Size order	Height × Width
Nominal height	300mm
Nominal width	900mm
Glazing	Double-glazed flat acrylic
UV-resistant construction	Yes
Outer frame	Black powder-coated aluminium alloy
Inner frame	White powder-coated aluminium alloy
Frame seal	EPDM rubber
Opening support	Supporting struts
Closure	Push-button locking handles
Block-out blind	Included, with reflective backing
Flyscreen	Included
Blind/screen operation	Independent or connected positioning
Listed profiles	Radius or square
Listed wall thickness — radius	25–40mm
Listed wall thickness — square	30–40mm

Choosing and Measuring a Replacement Window

Read our caravan window buying and replacement guide for sizing, profiles, glazing and wall thickness.

Our caravan window cut-out measuring guide explains how to record the opening.

Browse our caravan windows with blinds and flyscreens for other sizes.

Remember: this model is 300mm high × 900mm wide.

Frequently Asked Questions

Is this window 300mm high and 900mm wide?

Yes. Its nominal size is 300mm Height × 900mm Width.

Does it use double-glazed acrylic?

Yes. The window has a double-glazed flat acrylic panel with UV-resistant construction.

Does it include a block-out blind and flyscreen?

Yes. Both are integrated into the interior assembly for privacy, light control and insect screening.

Can I open it for ventilation?

Yes. The panel pushes outward, with supporting struts holding it open at the required position.

Are the inner and outer frames aluminium?

Yes. It has a black powder-coated aluminium alloy outer frame and a white aluminium alloy inner frame.

Is this a sliding caravan window?

No. It is a hinged push-out window that opens outward.

Is this window 900mm high?

No. It is 300mm high and 900mm wide. VanDIY lists window sizes as Height × Width.

Will it directly replace every window with a similar nominal size?

No. Replacement fit also depends on the opening shape, frame profile, wall thickness and installation clearances.
