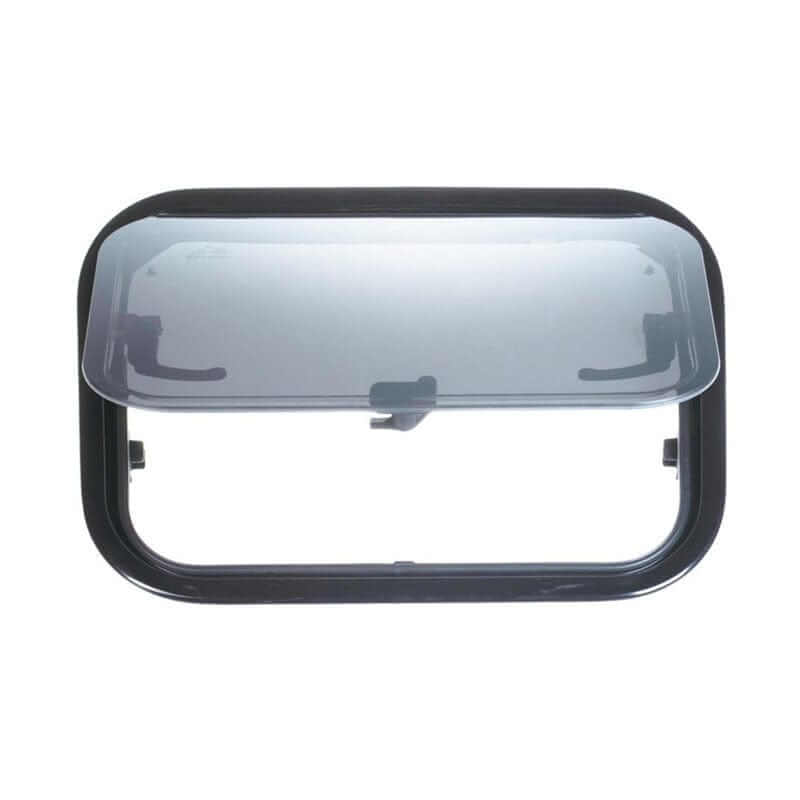

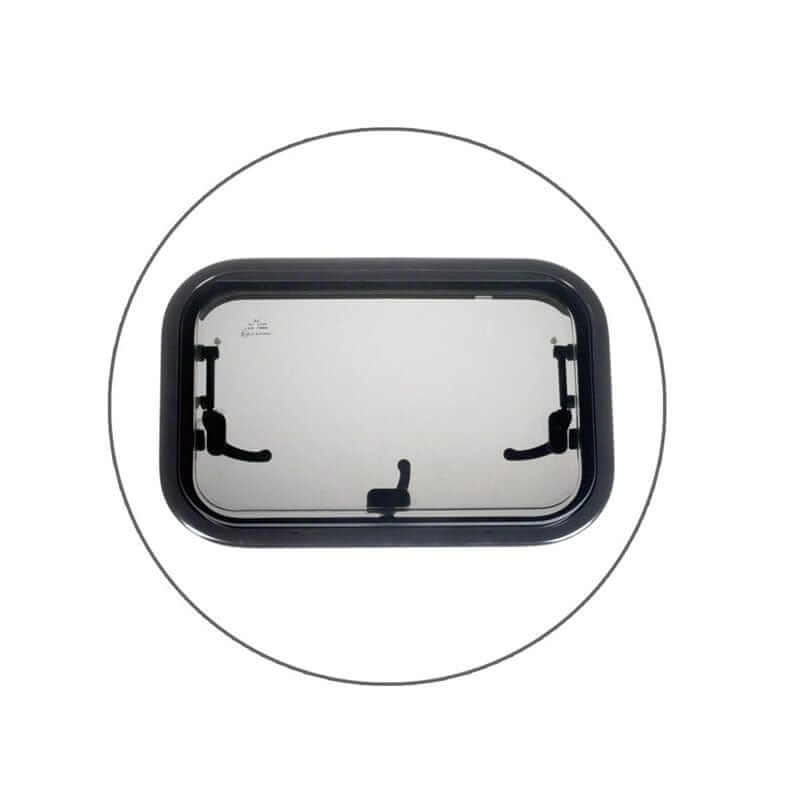

SJRV Caravan Window 350mm H × 500mm W – Blind & Flyscreen

Caravan Window — 350mm High × 500mm Wide

Add light, ventilation and privacy to your caravan with the SJRV double-glazed acrylic window, complete with an integrated block-out blind and flyscreen.

This window’s nominal size is 350mm high × 500mm wide. All VanDIY window sizes are listed as Height × Width (H × W), in millimetres.

The compact landscape format suits caravan renovations, replacement installations and new builds where this opening size is required. Push-out operation, supporting struts and locking handles provide convenient everyday use.

Double-Glazed Flat Acrylic

The double-glazed acrylic panel helps reduce heat transfer while providing a lightweight window assembly for caravan and RV installations.

UV-resistant construction suits an exposed exterior position. The flat panel and black outer frame provide a clean appearance when updating an older caravan or completing a new fit-out.

Aluminium Outer and Inner Frames

The window combines a black powder-coated aluminium alloy outer frame with a white aluminium alloy inner frame.

An EPDM rubber seal around the frame forms part of the weather-sealing system. Correct installation and sealing complete the fit between the window and caravan wall.

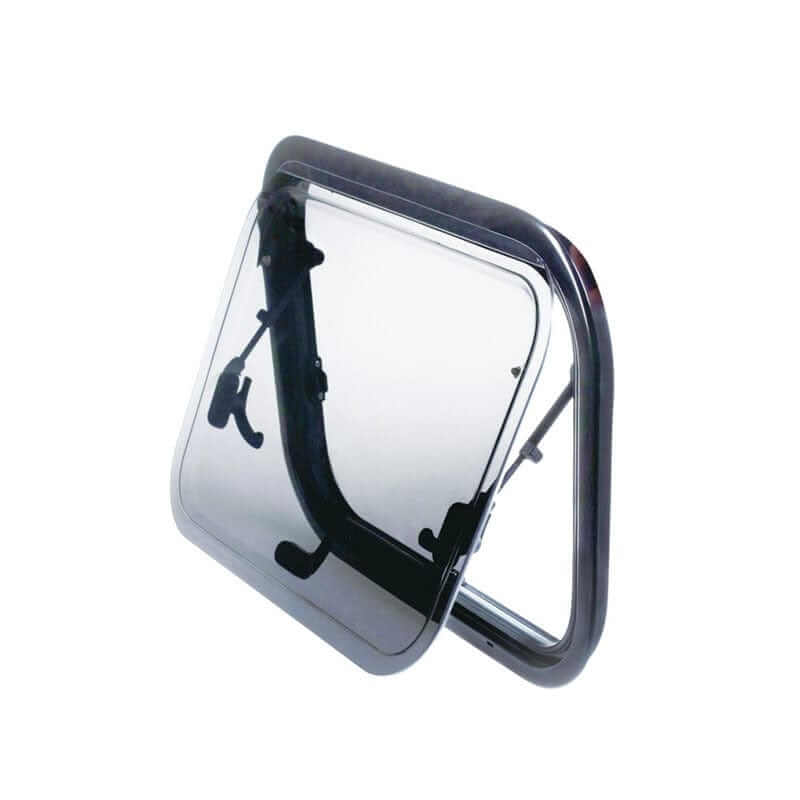

Push-Out Ventilation and Supporting Struts

The hinged panel pushes outward to let fresh air into your caravan.

Supporting struts hold the window open at the required position, allowing you to adjust ventilation. Push-button locking handles secure the window when closed.

Close and secure the window before travelling.

Integrated Block-Out Blind and Flyscreen

The interior assembly includes a pull-down block-out blind for privacy and light control, with reflective backing to help manage incoming sunlight.

The integrated insect screen lets you ventilate while helping keep insects outside. The blind and flyscreen operate independently or connect together for positioning.

Height × Width Sizing and Frame Profile

This is the 350mm high × 500mm wide model.

The nominal window size, installation cut-out and overall frame dimensions are different measurements. Use the installation drawing for the selected profile when preparing the wall opening.

This size is listed in radius and square profiles. The supplier lists wall thickness compatibility as:

• Radius profile: 25–40mm.

• Square profile: 30–40mm.

Match the profile to your installation as well as the window’s height and width.

Specifications

Specification	Details
Brand	SJRV
Window style	Hinged push-out
Size order	Height × Width
Nominal height	350mm
Nominal width	500mm
Glazing	Double-glazed flat acrylic
UV-resistant construction	Yes
Outer frame	Black powder-coated aluminium alloy
Inner frame	White powder-coated aluminium alloy
Frame seal	EPDM rubber
Opening support	Supporting struts
Closure	Push-button locking handles
Block-out blind	Included, with reflective backing
Flyscreen	Included
Blind/screen operation	Independent or connected positioning
Listed profiles	Radius or square
Listed wall thickness — radius	25–40mm
Listed wall thickness — square	30–40mm

Choosing and Measuring a Replacement Window

Read our caravan window buying and replacement guide for glazing, profiles, wall thickness and sizing.

Our caravan window cut-out measuring guide explains how to record the opening dimensions.

Browse our caravan windows with blinds and flyscreens for other sizes.

Remember: this model is 350mm high × 500mm wide.

Frequently Asked Questions

Is this window 350mm high and 500mm wide?

Yes. Its nominal size is 350mm Height × 500mm Width. VanDIY lists window sizes as Height × Width.

Is the acrylic double glazed?

Yes. The window uses double-glazed flat acrylic with UV-resistant construction.

Does it include a block-out blind and flyscreen?

Yes. Both are integrated into the interior assembly for privacy, light control and insect screening.

Can I open the window for ventilation?

Yes. The hinged panel pushes outward, with supporting struts holding it open.

Are both the inner and outer frames aluminium?

Yes. The outer frame is black powder-coated aluminium alloy, and the inner frame is white powder-coated aluminium alloy.

Is this the same size as a 500mm high × 350mm wide window?

No. That is a different orientation. This model is 350mm high × 500mm wide.

Does 350 × 500mm describe the overall outside frame?

No. It identifies the nominal window size. The outside frame overlaps the wall opening and is larger.

Will it directly replace every caravan window with similar dimensions?

No. Replacement fit also depends on the opening shape, frame profile, wall thickness and installation clearances.
