SJRV Caravan Window 400mm H × 800mm W – Blind & Flyscreen

Caravan Window – 400mm High × 800mm Wide

The SJRV 400mm H × 800mm W caravan window combines double-glazed acrylic, push-out ventilation, a blockout blind and an integrated flyscreen.

Its wide, shallow shape provides daylight and a view outside where your caravan layout calls for a horizontal window with less height. The built-in blind and screen let you adjust privacy, light and airflow without fitting separate window coverings.

Measurements are Height × Width: 400mm high × 800mm wide. These identify the nominal window size, not the overall external frame dimensions.

Available with radius or square corner profiles, this window suits caravan renovations, replacement installations and new RV builds with a matching opening and wall construction.

Double-glazed, UV-resistant acrylic

The flat acrylic panel features double glazing to help reduce heat transfer through the window. UV-resistant acrylic is designed for outdoor exposure, while the flat exterior profile and black outer frame provide a clean finish.

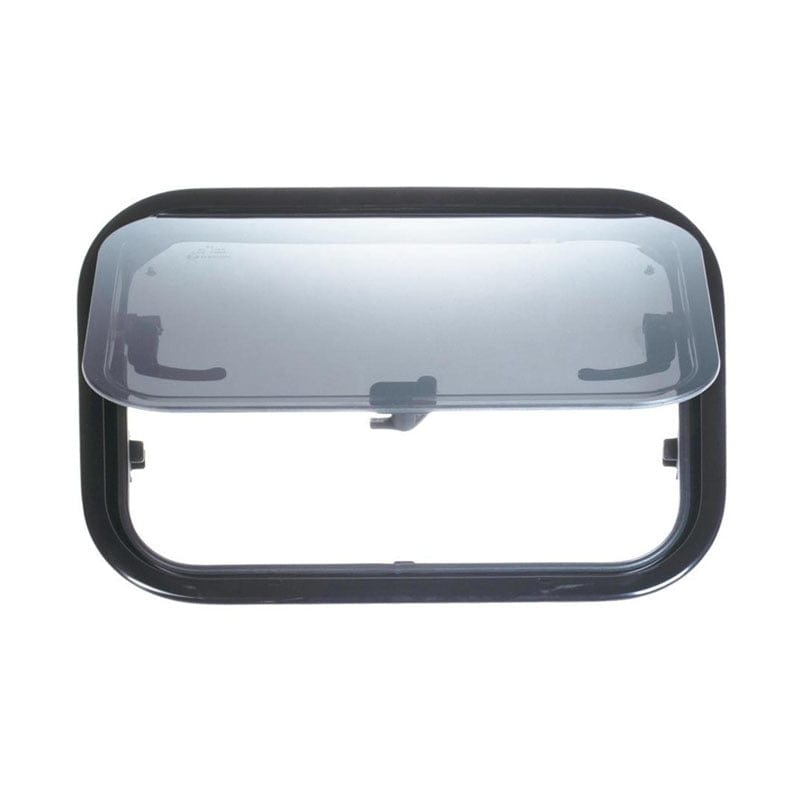

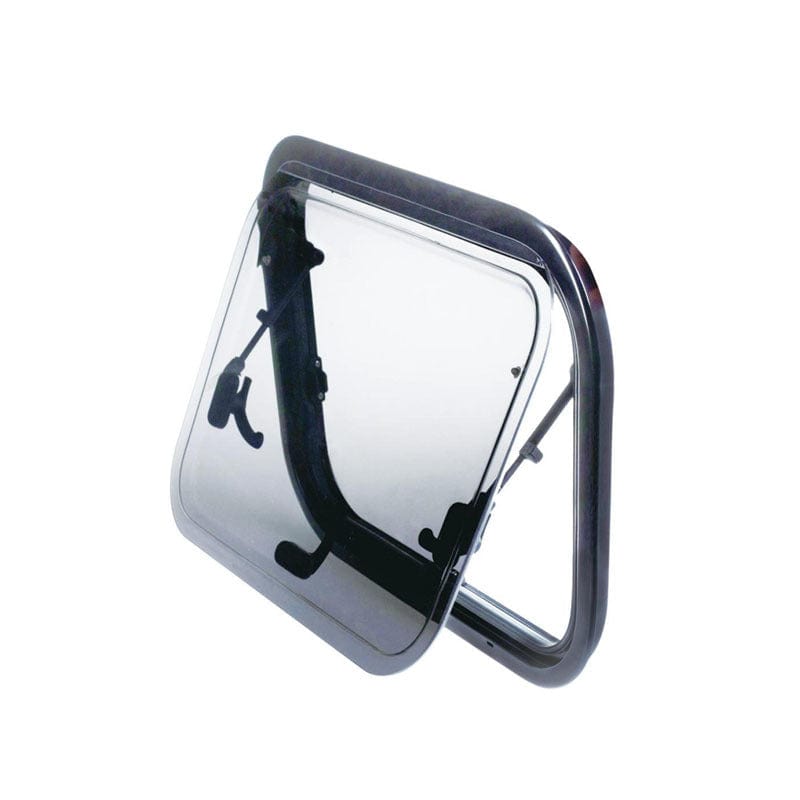

Push-out opening for fresh air

The panel opens outwards, with support struts holding the window open so you can adjust ventilation. Push-button locking handles secure the panel when closed.

Use the integrated flyscreen while the window is open to enjoy airflow with an insect barrier. Close and lock the window before travelling.

Blockout blind and flyscreen included

The built-in blockout blind provides privacy and helps darken the caravan interior for sleeping. Its reflective backing helps reduce incoming radiant heat when drawn.

The blind and flyscreen can operate independently or clip together, allowing you to adjust their position as light, privacy and ventilation needs change.

Aluminium frames and EPDM seal

The window features a black powder-coated aluminium alloy outer frame and a white powder-coated aluminium alloy inner frame.

The inner assembly houses the blind and flyscreen for a neat interior finish. An EPDM rubber seal forms part of the outer frame’s sealing system.

Choose the correct corner profile

Match the window profile to your caravan’s wall opening:

• Radius corner profile: rounded R80 corners; suits wall thicknesses of 25–40mm.

• Square corner profile: square corners; suits wall thicknesses of 30–40mm.

For a replacement, match the corner shape, opening dimensions and wall thickness. Refer to the drawing for your chosen profile before cutting a new opening.

Specifications

Specification	Details
Brand	SJRV
Product type	Push-out caravan and RV window
Measurement order	Height × Width
Nominal height	400mm
Nominal width	800mm
Orientation	Horizontal
Glazing	Double-glazed acrylic
Acrylic properties	UV-resistant, flat exterior panel
Opening operation	Manual push-out
Open-position support	Window support struts
Closing mechanism	Push-button locking handles
Outer frame	Black powder-coated aluminium alloy
Inner frame	White powder-coated aluminium alloy
Frame seal	EPDM rubber
Privacy blind	Integrated blockout blind with reflective backing
Insect screen	Integrated flyscreen
Blind and screen operation	Independent operation or clipped together
Corner profiles	Radius or square
Radius profile	R80 corners; suits 25–40mm wall thickness
Square profile	Suits 30–40mm wall thickness
Overall frame and installation dimensions	Refer to the drawing for the chosen profile

Caravan window guides and other sizes

Read our Caravan Window Buying & Replacement Guide for help comparing window styles, corner profiles and replacement requirements.

For an existing opening, follow our caravan window cut-out measuring guide.

Browse our caravan windows with blinds and flyscreens for other sizes, listed as Height × Width.

Frequently asked questions

Is this window 400mm high and 800mm wide?
Yes. Measurements are Height × Width, so this model is 400mm high × 800mm wide.

Does this caravan window have double glazing?
Yes. The panel uses double-glazed, UV-resistant acrylic.

Are the blockout blind and flyscreen included?
Yes. Both are integrated into the inner assembly and can operate independently or clip together.

Can the window open for ventilation?
Yes. The panel pushes outwards and is held open by support struts. The flyscreen provides an insect barrier while allowing airflow.

Are both frames aluminium?
Yes. The outer frame is black powder-coated aluminium alloy, and the inner frame is white powder-coated aluminium alloy.

Is this the same as an 800mm high × 400mm wide window?
No. This model is 400mm high × 800mm wide, giving it a horizontal shape.

Are 400mm × 800mm the overall external frame dimensions?
No. They identify the nominal window size. Refer to the drawing for the chosen profile for overall frame and installation dimensions.

Will it directly replace every existing 400mm × 800mm caravan window?
No. The corner profile, actual opening dimensions, wall thickness and surrounding clearance must also suit the replacement.
