SJRV Caravan Window 500mm H × 1000mm W – Blind & Flyscreen

Caravan Window – 500mm High × 1000mm Wide

The SJRV 500mm H × 1000mm W caravan window brings daylight, adjustable ventilation and privacy to your caravan or RV. It combines a double-glazed acrylic panel with aluminium frames, an integrated blockout blind and a flyscreen.

Measurements are Height × Width: 500mm high × 1000mm wide. This is the nominal window size, not the overall external frame measurement.

The horizontal shape suits layouts requiring a wide window, whether you’re replacing an older caravan window or planning a new build. Radius and square corner profiles are available.

Double-glazed acrylic panel

The flat, UV-resistant acrylic panel features double glazing to help reduce heat transfer through the window. Its flat exterior profile and black outer frame provide a clean finish for caravan renovations and new RV builds.

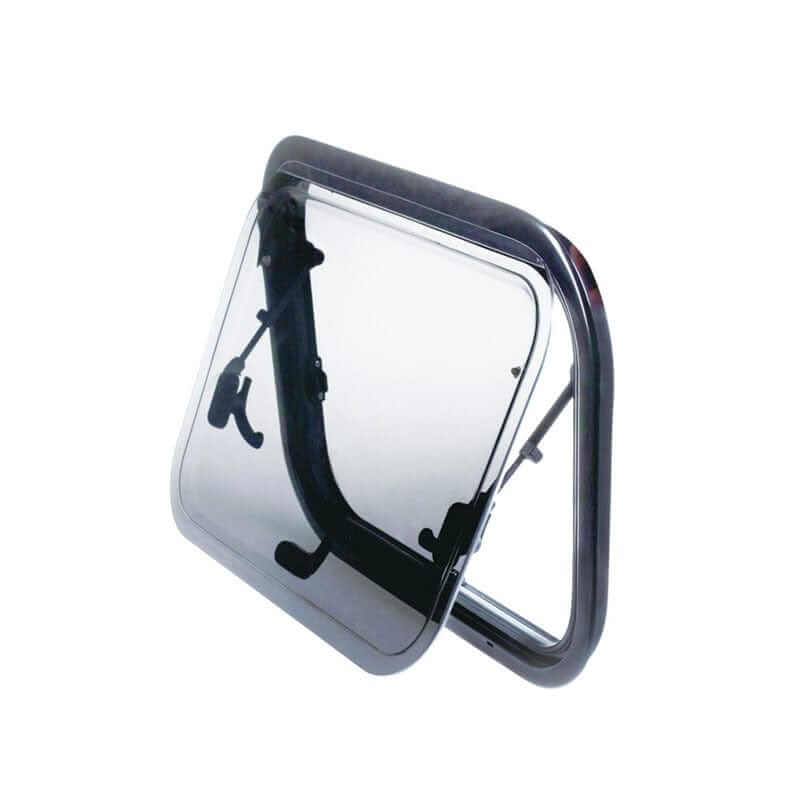

Push-out ventilation with support struts

Open the panel outwards to let fresh air into your caravan. Support struts hold the window open, allowing you to adjust ventilation, while push-button locking handles secure the panel when closed.

Use the integrated flyscreen while the window is open to enjoy airflow with an insect barrier. Close and lock the window before travelling.

Integrated blockout blind and flyscreen

The built-in blockout blind provides privacy and helps darken the interior for sleeping. Reflective backing helps reduce incoming radiant heat when the blind is drawn.

The flyscreen and blind can operate independently or clip together, making it easy to adjust light, privacy and airflow without fitting separate window coverings.

Powder-coated aluminium frames

The window has a black powder-coated aluminium alloy outer frame and a white powder-coated aluminium inner frame.

An EPDM rubber seal forms part of the outer frame’s sealing system. The white interior frame surrounds the integrated blind and flyscreen for a neat finish inside your caravan.

Radius and square corner profiles

Choose the profile that matches your wall opening:

• Radius corner profile: rounded R80 corners; suits wall thicknesses of 25–40mm.

• Square corner profile: square corners; suits wall thicknesses of 30–40mm.

For a replacement, match the corner shape as well as the opening size and wall thickness. Use the drawing for the chosen profile to confirm installation dimensions before cutting a new opening.

Specifications

Specification	Details
Brand	SJRV
Product type	Push-out caravan and RV window
Measurement order	Height × Width
Nominal height	500mm
Nominal width	1000mm
Orientation	Horizontal
Glazing	Double-glazed acrylic
Acrylic properties	UV-resistant, flat exterior panel
Opening operation	Manual push-out
Open-position support	Window support struts
Closing mechanism	Push-button locking handles
Outer frame	Black powder-coated aluminium alloy
Inner frame	White powder-coated aluminium alloy
Frame seal	EPDM rubber
Privacy blind	Integrated blockout blind with reflective backing
Insect screen	Integrated flyscreen
Blind and screen operation	Independent operation or clipped together
Corner profiles	Radius or square
Radius profile	R80 corners; suits 25–40mm wall thickness
Square profile	Suits 30–40mm wall thickness
Overall frame and installation dimensions	Refer to the drawing for the chosen profile

Caravan window guides and other sizes

Read our Caravan Window Buying & Replacement Guide for help comparing window construction, corner profiles and replacement requirements.

Replacing an existing window? Follow our caravan window cut-out measuring guide.

Explore our caravan windows with blinds and flyscreens for other sizes, listed as Height × Width.

Frequently asked questions

Is this window 500mm high and 1000mm wide?
Yes. Measurements are Height × Width, so this model is 500mm high × 1000mm wide.

Does this caravan window have double glazing?
Yes. It uses double-glazed, UV-resistant acrylic.

Are the blockout blind and flyscreen included?
Yes. Both are integrated into the inner assembly and can operate separately or clip together.

Can I open the window for ventilation?
Yes. The panel pushes outwards and is held open by support struts. The flyscreen allows airflow while providing an insect barrier.

Does it have aluminium inner and outer frames?
Yes. The outer frame is black powder-coated aluminium alloy, and the inner frame is white powder-coated aluminium alloy.

Is this a sliding caravan window?
No. It is a push-out window: the acrylic panel opens outwards rather than sliding sideways.

Are 500mm × 1000mm the overall external frame dimensions?
No. They identify the nominal window size. Refer to the drawing for your chosen profile for overall frame and installation dimensions.

Will it fit every existing 500mm × 1000mm window opening?
No. The corner profile, actual opening dimensions, wall thickness and surrounding clearance must also suit the replacement window.
