SJRV Caravan Window 500mm H × 300mm W – Blind & Flyscreen

Caravan Window – 500mm High × 300mm Wide

The SJRV 500mm H × 300mm W caravan window combines double-glazed acrylic, push-out ventilation, a blockout blind and an integrated flyscreen in a narrow, upright assembly.

Its taller-than-wide shape provides daylight and fresh air where your caravan or RV layout has limited horizontal space. Open the panel for ventilation, use the flyscreen for insect protection, or draw the blockout blind for privacy.

Measurements are Height × Width: 500mm high × 300mm wide. These identify the nominal window size, not the overall external frame dimensions.

Available with radius or square corner profiles, this window suits caravan renovations, replacement installations and new RV builds with a matching opening and wall construction.

Double-glazed, UV-resistant acrylic

The flat acrylic panel features double glazing to help reduce heat transfer through the window. UV-resistant acrylic is designed for outdoor exposure, while the flat exterior profile and black outer frame provide a clean finish.

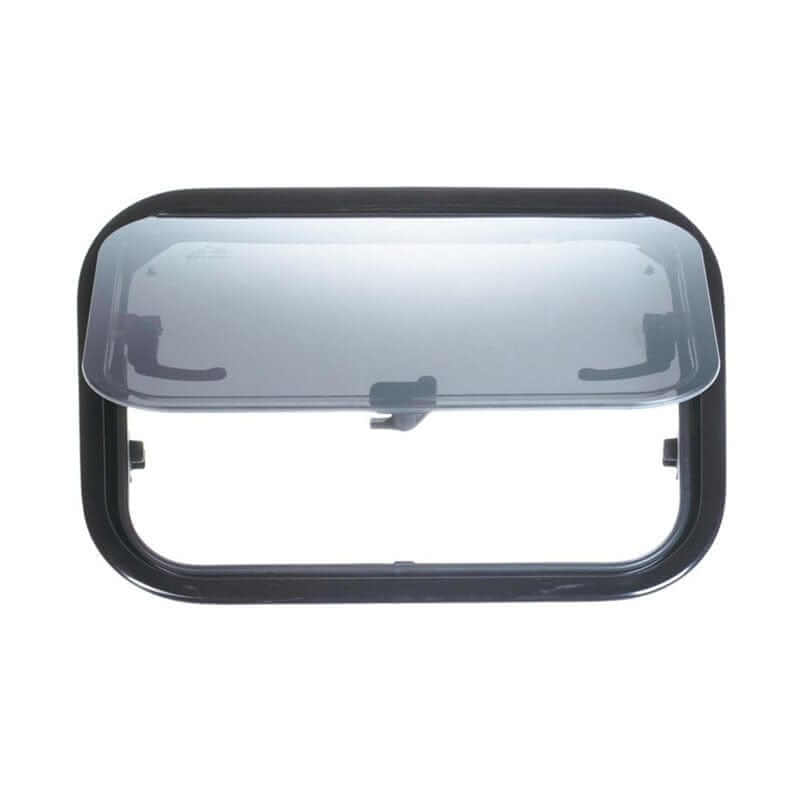

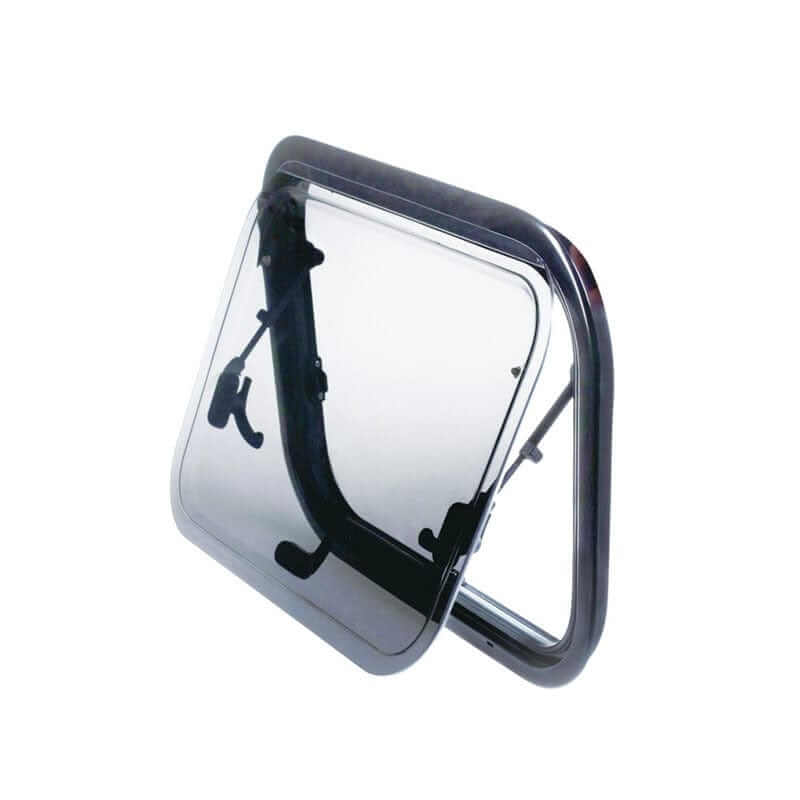

Push-out opening for adjustable ventilation

The panel opens outwards, with support struts holding the window open so you can adjust airflow. Push-button locking handles secure the panel when closed.

Use the integrated flyscreen while the window is open to enjoy ventilation with an insect barrier. Close and lock the window before travelling.

Blockout blind and flyscreen included

The built-in blockout blind provides privacy and helps darken the caravan interior for sleeping. Its reflective backing helps reduce incoming radiant heat when drawn.

The blind and flyscreen can operate independently or clip together, allowing you to adjust their position as light, privacy and ventilation needs change.

Powder-coated aluminium frames

The window features a black powder-coated aluminium alloy outer frame and a white powder-coated aluminium alloy inner frame.

The inner assembly houses the blind and flyscreen for a neat interior finish. An EPDM rubber seal forms part of the outer frame’s sealing system.

Choose your corner profile

Match the window profile to your caravan’s wall opening:

• Radius corner profile: rounded R80 corners; suits wall thicknesses of 25–40mm.

• Square corner profile: square corners; suits wall thicknesses of 30–40mm.

For replacement installations, match the corner shape, opening dimensions and wall thickness. Refer to the drawing for your chosen profile before cutting a new opening.

Specifications

Specification	Details
Brand	SJRV
Product type	Push-out caravan and RV window
Measurement order	Height × Width
Nominal height	500mm
Nominal width	300mm
Proportions	Upright; taller than wide
Glazing	Double-glazed acrylic
Acrylic properties	UV-resistant, flat exterior panel
Opening operation	Manual push-out
Open-position support	Window support struts
Closing mechanism	Push-button locking handles
Outer frame	Black powder-coated aluminium alloy
Inner frame	White powder-coated aluminium alloy
Frame seal	EPDM rubber
Privacy blind	Integrated blockout blind with reflective backing
Insect screen	Integrated flyscreen
Blind and screen operation	Independent operation or clipped together
Corner profiles	Radius or square
Radius profile	R80 corners; suits 25–40mm wall thickness
Square profile	Suits 30–40mm wall thickness
Overall frame and installation dimensions	Refer to the drawing for the chosen profile

Caravan window guides and other sizes

Read our Caravan Window Buying & Replacement Guide for help comparing window styles, corner profiles and replacement requirements.

For an existing opening, follow our caravan window cut-out measuring guide.

Browse our caravan windows with blinds and flyscreens for other sizes, listed as Height × Width.

Frequently asked questions

Is this window 500mm high and 300mm wide?
Yes. Measurements are Height × Width, so this model is 500mm high × 300mm wide, giving it an upright shape.

Does this caravan window have double glazing?
Yes. The panel uses double-glazed, UV-resistant acrylic.

Are the blockout blind and flyscreen included?
Yes. Both are integrated into the inner assembly and can operate independently or clip together.

Can the window open for ventilation?
Yes. The panel pushes outwards and is held open by support struts. The flyscreen provides an insect barrier while allowing airflow.

Are both frames aluminium?
Yes. The outer frame is black powder-coated aluminium alloy, and the inner frame is white powder-coated aluminium alloy.

Is this the same as a 300mm high × 500mm wide window?
No. This model is 500mm high × 300mm wide. The two sizes have different orientations and are not interchangeable.

Are 500mm × 300mm the overall external frame dimensions?
No. They identify the nominal window size. Refer to the drawing for your chosen profile for overall frame and installation dimensions.

Will it directly replace every existing 500mm × 300mm caravan window?
No. The corner profile, actual opening dimensions, wall thickness and surrounding clearance must also suit the replacement.
