SJRV Caravan Window 550mm H × 700mm W – Blind & Flyscreen

Caravan Window — 550mm High × 700mm Wide

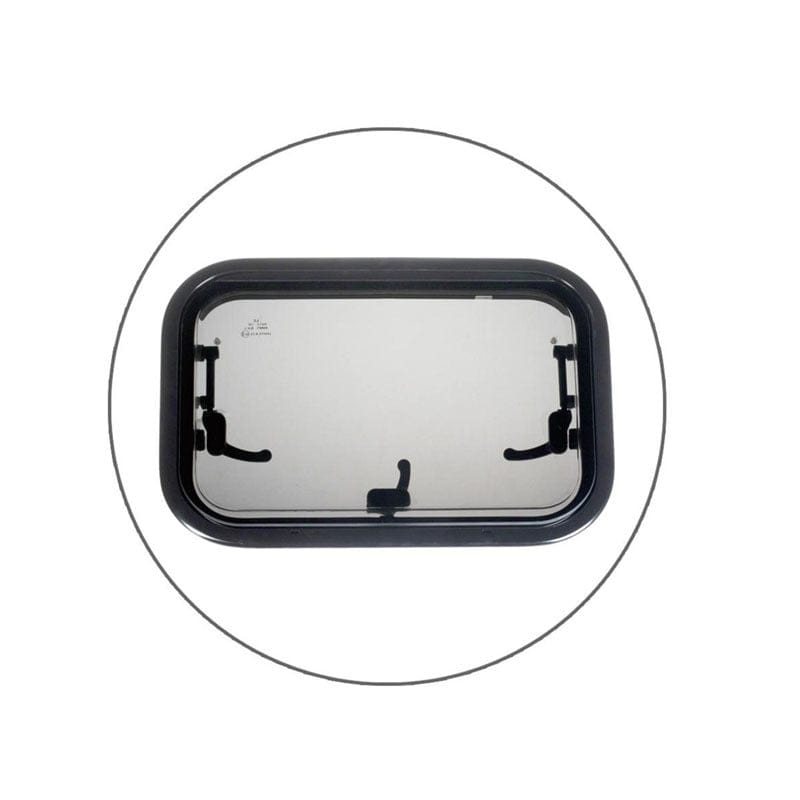

Add natural light, adjustable ventilation and privacy to your caravan with the SJRV double-glazed acrylic window. Its push-out panel, integrated block-out blind and flyscreen combine everyday window functions in one assembly.

This model’s nominal size is 550mm high × 700mm wide. All VanDIY window sizes are listed as Height × Width (H × W), in millimetres.

The landscape format suits caravan renovations, replacement installations and new builds requiring this size and profile.

Double-Glazed Flat Acrylic

The double-glazed acrylic panel helps reduce heat transfer while providing a lightweight glazing option for caravan and RV use.

UV-resistant construction suits an exterior installation. The flat panel and black outer frame provide a consistent appearance when matching other SJRV windows.

Adjustable Push-Out Ventilation

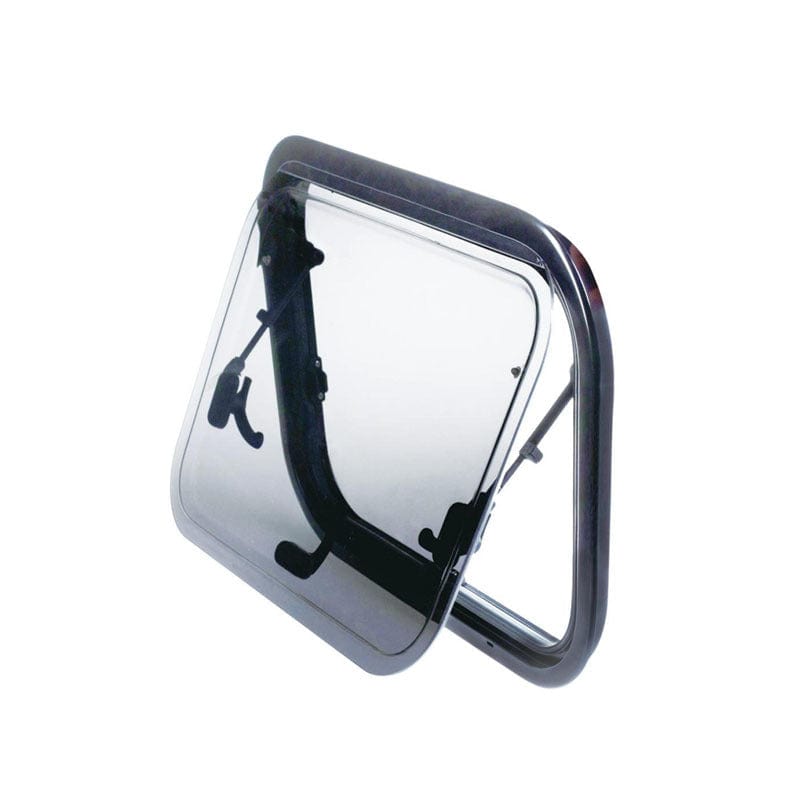

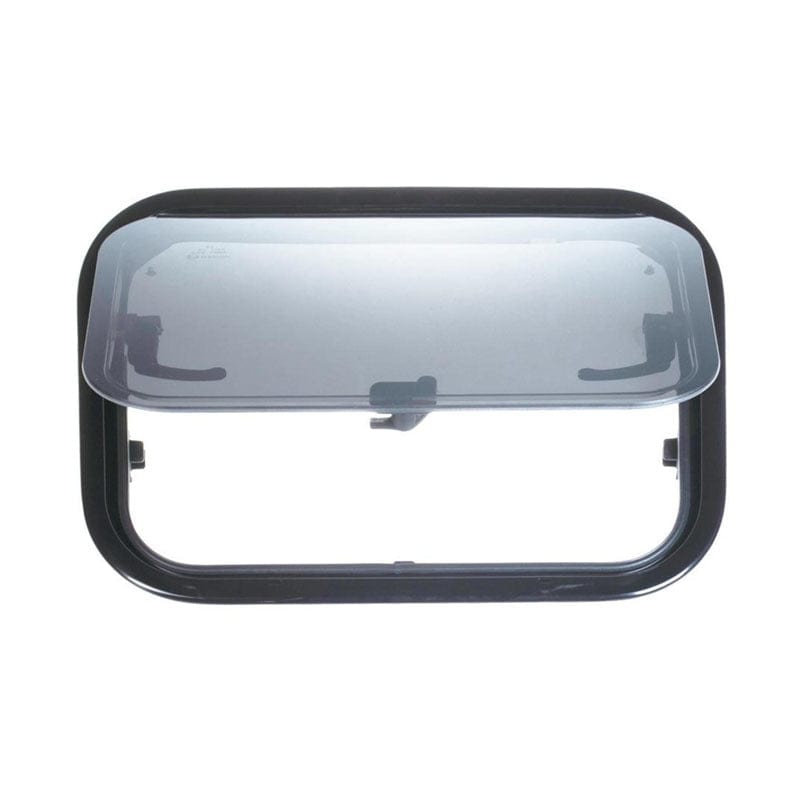

The hinged panel opens outward to admit fresh air.

Supporting struts hold the window open at the required position, allowing you to adjust ventilation. Push-button locking handles secure the panel when closed.

Allow space outside for the panel to open, and close and secure the window before travelling.

Integrated Blind and Flyscreen

The pull-down block-out blind provides privacy and reduces unwanted light. Reflective backing helps manage incoming sunlight.

The flyscreen allows airflow while helping keep mosquitoes and other insects outside. Operate the blind and screen independently or connect them together for positioning.

Both are integrated into the interior assembly, keeping the privacy and insect-screening systems together with the window.

Aluminium Frames and Weather Seal

A black powder-coated aluminium alloy outer frame is paired with a white aluminium alloy inner frame.

An EPDM rubber seal around the outer frame forms part of the weather-sealing system. Correct mounting and installation sealing complete the fit between the window and caravan wall.

Height × Width and Profile Selection

This is the 550mm high × 700mm wide model.

Nominal window size, installation cut-out and overall frame dimensions are separate measurements. Use the selected profile’s installation drawing when preparing the opening.

This size is listed in radius and square profiles. The supplier specifies:

• Radius profile: suitable for 25–40mm wall thickness.

• Square profile: suitable for 30–40mm wall thickness.

Match the profile and wall thickness as well as the opening’s height and width.

Specifications

Specification	Details
Brand	SJRV
Window style	Hinged push-out
Size order	Height × Width
Nominal height	550mm
Nominal width	700mm
Glazing	Double-glazed flat acrylic
UV-resistant construction	Yes
Outer frame	Black powder-coated aluminium alloy
Inner frame	White powder-coated aluminium alloy
Frame seal	EPDM rubber
Opening support	Supporting struts
Closure	Push-button locking handles
Block-out blind	Included, with reflective backing
Flyscreen	Included
Blind/screen operation	Independent or connected positioning
Listed profiles	Radius or square
Listed wall thickness — radius	25–40mm
Listed wall thickness — square	30–40mm

Choosing and Measuring a Replacement Window

Read our caravan window buying and replacement guide for sizing, profiles, wall thickness and glazing.

Our caravan window cut-out measuring guide explains how to record the wall opening.

Browse our caravan windows with blinds and flyscreens for other sizes.

Remember: this model is 550mm high × 700mm wide.

Frequently Asked Questions

Is this window 550mm high and 700mm wide?

Yes. Its nominal size is 550mm Height × 700mm Width.

Does it use double-glazed acrylic?

Yes. The window has a double-glazed flat acrylic panel with UV-resistant construction.

Does it include a block-out blind and flyscreen?

Yes. Both are integrated into the interior assembly for privacy, light control and insect screening.

Can I open the window for ventilation?

Yes. The panel pushes outward, with supporting struts holding it open at the required position.

Are both the inner and outer frames aluminium?

Yes. The outer frame is black powder-coated aluminium alloy, and the inner frame is white powder-coated aluminium alloy.

Is this window 700mm high?

No. It is 550mm high and 700mm wide. VanDIY lists window sizes as Height × Width.

Does 550 × 700mm describe the overall outside frame?

No. It identifies the nominal window size. The outer frame overlaps the wall opening and is larger.

Will it directly replace every caravan window with similar dimensions?

No. Replacement fit also depends on the opening shape, frame profile, wall thickness and installation clearances.
