SJRV Caravan Window 900mm H × 900mm W – Blind & Flyscreen

Caravan Window — 900mm High × 900mm Wide

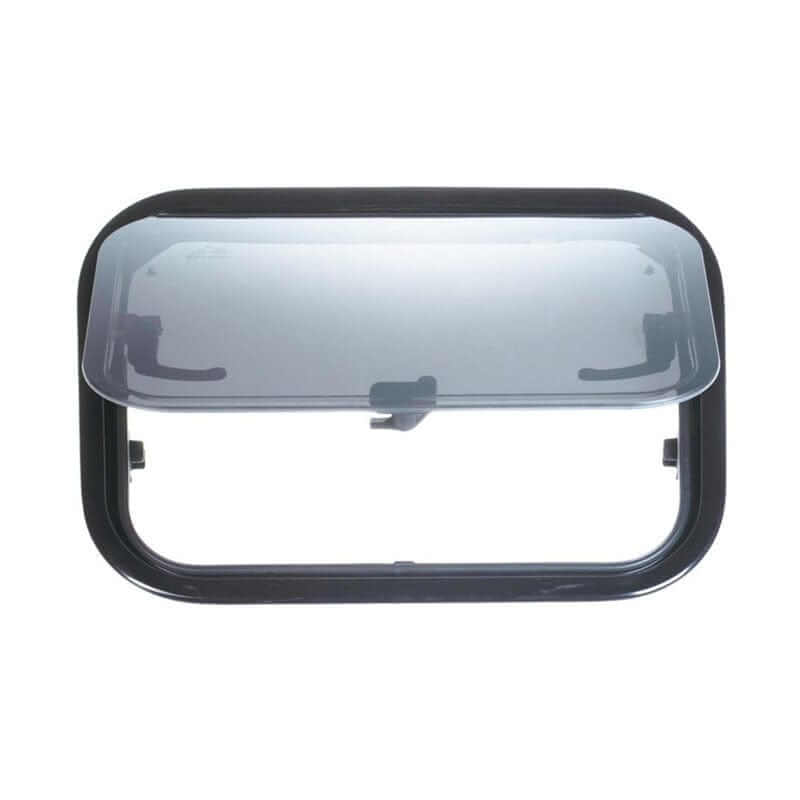

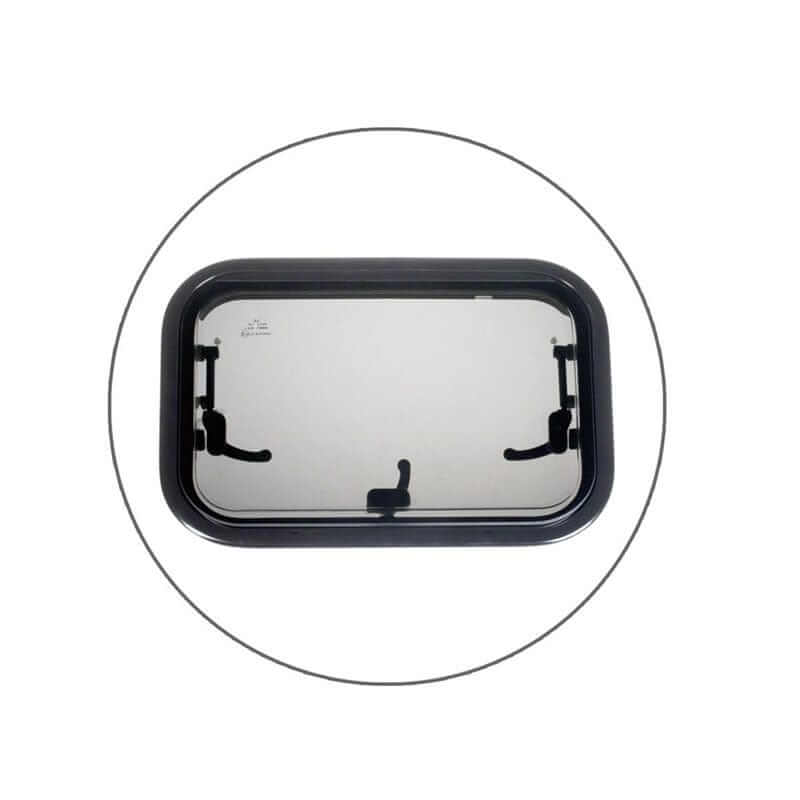

Open up your caravan’s interior to natural light and an outside view with the SJRV 900 × 900mm double-glazed acrylic window. Its square proportions provide a generous window area, while push-out ventilation, an integrated blind and a flyscreen give you control over airflow, privacy and light.

This model’s nominal size is 900mm high × 900mm wide. All VanDIY window sizes are listed as Height × Width (H × W), in millimetres.

It suits caravan renovations, replacement installations and new builds requiring this size and profile.

Double-Glazed Flat Acrylic

The double-glazed acrylic panel helps reduce heat transfer while providing a lightweight glazing option for caravan and RV use.

UV-resistant construction suits an exposed exterior position. The flat panel and black outer frame provide a clean finish when upgrading an older caravan or matching other SJRV windows.

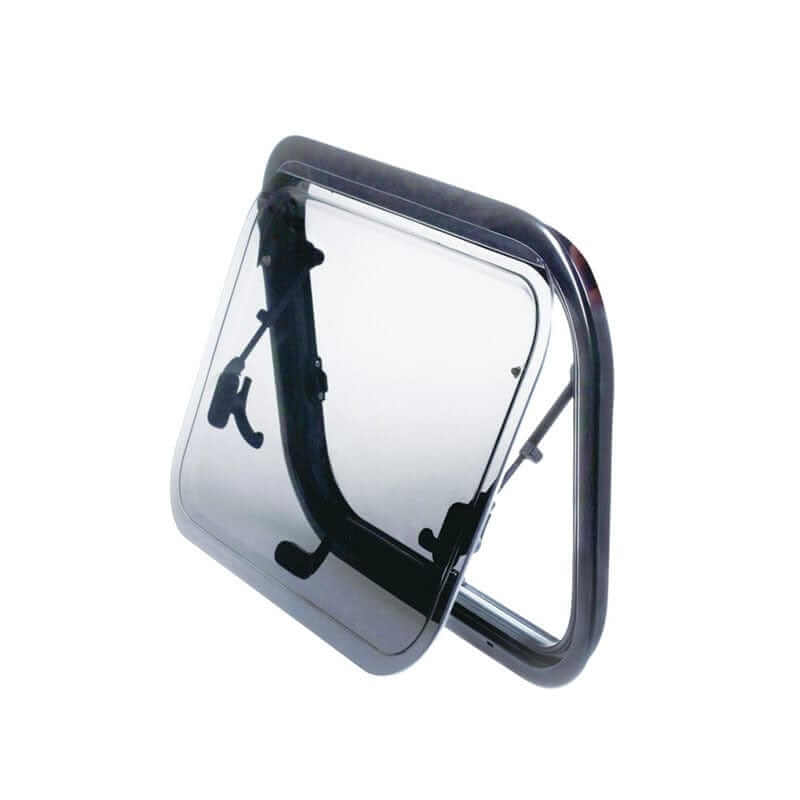

Push-Out Opening with Supporting Struts

The hinged panel opens outward for ventilation. Supporting struts hold it open at the required position, allowing you to adjust airflow through your living space.

Push-button locking handles secure the window when closed.

Allow space outside for the panel to open, and close and secure it before travelling.

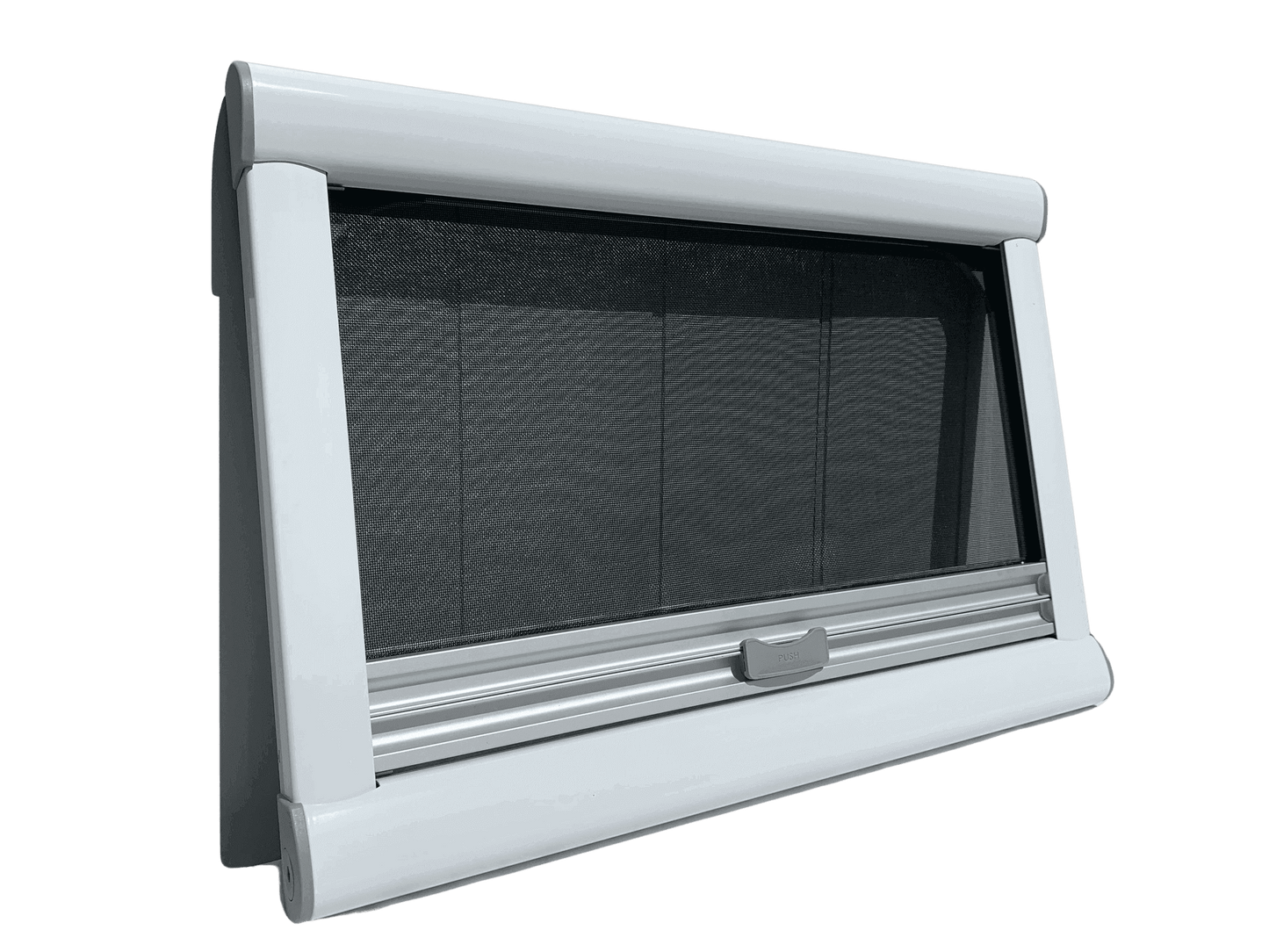

Integrated Block-Out Blind

The pull-down block-out blind provides privacy and reduces unwanted light. Reflective backing helps manage incoming sunlight.

The blind is integrated into the interior window assembly, keeping the privacy system neatly together with the window.

Flyscreen for Ventilation

The included insect screen allows fresh air through while helping keep mosquitoes and other insects outside.

Operate the blind and flyscreen independently, or connect them together for positioning to suit the light and airflow you want.

Aluminium Frames and EPDM Seal

The window uses a black powder-coated aluminium alloy outer frame and a white aluminium alloy inner frame.

An EPDM rubber seal around the outer frame forms part of the weather-sealing system. Correct mounting and installation sealing complete the fit to the caravan wall.

Height × Width and Profile Selection

This is the 900mm high × 900mm wide window.

The square proportions describe its height and width. The frame profile is a separate choice: this size is listed in radius and square profiles.

The supplier specifies wall thickness compatibility as:

• Radius profile: 25–40mm.

• Square profile: 30–40mm.

Nominal window size, installation cut-out and overall frame dimensions are separate measurements. Use the selected profile’s installation drawing when preparing the opening.

Specifications

Specification	Details
Brand	SJRV
Window style	Hinged push-out
Size order	Height × Width
Nominal height	900mm
Nominal width	900mm
Glazing	Double-glazed flat acrylic
UV-resistant construction	Yes
Outer frame	Black powder-coated aluminium alloy
Inner frame	White powder-coated aluminium alloy
Frame seal	EPDM rubber
Opening support	Supporting struts
Closure	Push-button locking handles
Block-out blind	Included, with reflective backing
Flyscreen	Included
Blind/screen operation	Independent or connected positioning
Listed profiles	Radius or square
Listed wall thickness — radius	25–40mm
Listed wall thickness — square	30–40mm

Choosing and Measuring a Replacement Window

Read our caravan window buying and replacement guide for glazing, profiles, wall thickness and sizing.

Our caravan window cut-out measuring guide explains how to record the wall opening.

Browse our caravan windows with blinds and flyscreens for other sizes.

Remember: this model is 900mm high × 900mm wide.

Frequently Asked Questions

Is this window 900mm high and 900mm wide?

Yes. Its nominal size is 900mm Height × 900mm Width.

Does it use double-glazed acrylic?

Yes. The window has a double-glazed flat acrylic panel with UV-resistant construction.

Does it include both a block-out blind and flyscreen?

Yes. Both are integrated into the interior assembly for privacy, light control and insect screening.

Can I open it for ventilation?

Yes. The hinged panel pushes outward, with supporting struts holding it open.

Are the inner and outer frames aluminium?

Yes. It has a black powder-coated aluminium alloy outer frame and a white aluminium alloy inner frame.

Does the square window shape mean it only comes in a square profile?

No. Height and width describe the window’s proportions. This size is listed in both radius and square profiles.

Does 900 × 900mm describe the overall outside frame?

No. It identifies the nominal window size. The outer frame overlaps the wall opening and is larger.

Will it directly replace every existing 900 × 900mm caravan window?

No. Replacement fit also depends on the opening shape, frame profile, wall thickness and installation clearances.
