Caravan Skylight with Adjustable LED Lighting
Add daylight, ventilation and adjustable interior lighting to your caravan, campervan or motorhome with the SJRV 400 × 400mm skylight.
This opening roof hatch combines a double-glazed acrylic lid, pleated blackout blind and flyscreen with built-in 12V LED lighting. Choose from three brightness levels to suit the amount of light you want inside.
Size and Roof Opening
The nominal 400 × 400mm model requires a 402 × 402mm roof cut-out and suits roof construction between 28mm and 50mm thick.
Three-Level LED Lighting
The integrated cold-white LED lights run from a 12V DC supply and offer three adjustable brightness levels. Change the brightness for general illumination or a softer evening setting.
These are brightness settings, rather than three different light colours.

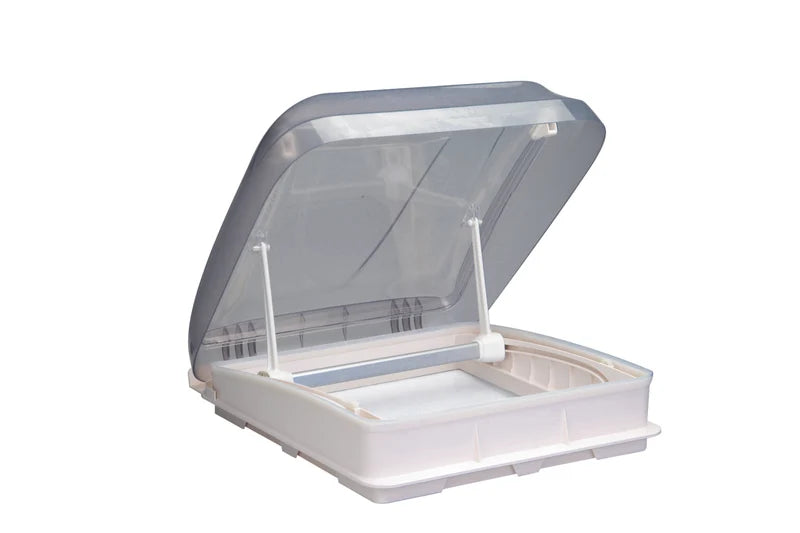

Opening Roof Hatch
An anodised aluminium push rod operates the lid, with two opening positions for natural ventilation and a secure locking mechanism for closing the hatch.
The aerodynamic, low-profile exterior combines a double-glazed hollow acrylic dome with a UV-resistant ASA frame.

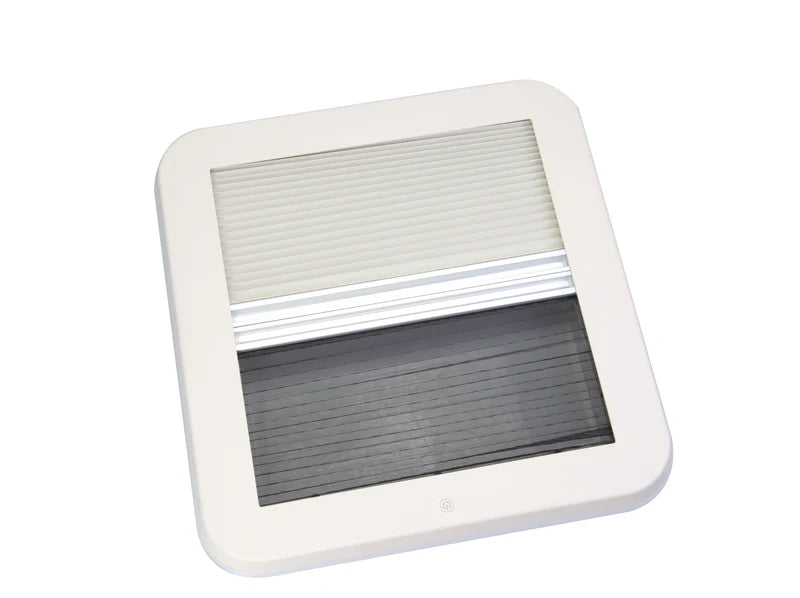

Blackout Blind and Flyscreen
Adjust the pleated blackout blind for shade and privacy, or use the flyscreen while ventilating the interior.
The blind and screen operate independently. A magnetic connection also allows them to join and move together.
Specifications
| Specification | Details |
|---|---|
| Brand | SJRV |
| SKU | RW-400X400V |
| Nominal model size | 400 × 400mm |
| Required roof cut-out | 402 × 402mm |
| Suitable roof thickness | 28–50mm |
| Roof lid | Double-glazed hollow acrylic |
| Frame | UV-resistant ASA |
| Design | Aerodynamic, low profile |
| Operation | Manual push rod |
| Push rod material | Anodised aluminium |
| Lid opening positions | 2 |
| Locking | Secure locking mechanism |
| Lighting supply | 12V DC |
| LED brightness settings | 3 levels |
| LED light colour | Cold white |
| Blind | Pleated blackout blind |
| Flyscreen | Included |
| Blind and flyscreen operation | Independent, with magnetic connection |
Compare Caravan Skylights
Explore sizes and features in our Caravan Skylight & Roof Hatch Buying Guide.
Also available are the SJRV 400 × 450mm skylight and SJRV 500 × 700mm skylight.
Browse our caravan hatches and skylights collection.
Frequently Asked Questions
Can I adjust the LED brightness?
Yes. Choose between three brightness levels.
Does the lid open for ventilation?
Yes. The manual push rod provides two opening positions.
Does it include a blackout blind and flyscreen?
Yes. Both are integrated into the skylight.
Can the blind and flyscreen operate independently?
Yes. They adjust separately and can also join magnetically.
Is it suitable for a roof between 28mm and 50mm thick?
Yes. That is the specified installation range.
Is the required cut-out exactly 400 × 400mm?
No. The required opening is 402 × 402mm.
Do the three LED settings change the light colour?
No. They adjust brightness; the light colour is cold white.
Does the lid open electrically?
No. It operates manually using the push rod.
