SJRV Caravan Window 800mm H × 1000mm W – Blind & Flyscreen

Caravan Window — 800mm High × 1000mm Wide

Bring natural light, an outside view and adjustable ventilation into your caravan with the SJRV double-glazed acrylic push-out window. Its integrated block-out blind and flyscreen provide privacy, light control and insect screening in one assembly.

This window’s nominal size is 800mm high × 1000mm wide. All VanDIY window sizes are listed as Height × Width (H × W), in millimetres.

The landscape format suits installations requiring a larger window, including caravan living areas and renovation projects with a matching wall opening.

Double-Glazed Flat Acrylic

The double-glazed acrylic panel helps reduce heat transfer while providing a lightweight glazing option for caravan and RV use.

UV-resistant construction suits an exterior installation. The flat acrylic panel and black outer frame provide a consistent appearance when matching other SJRV windows throughout your caravan.

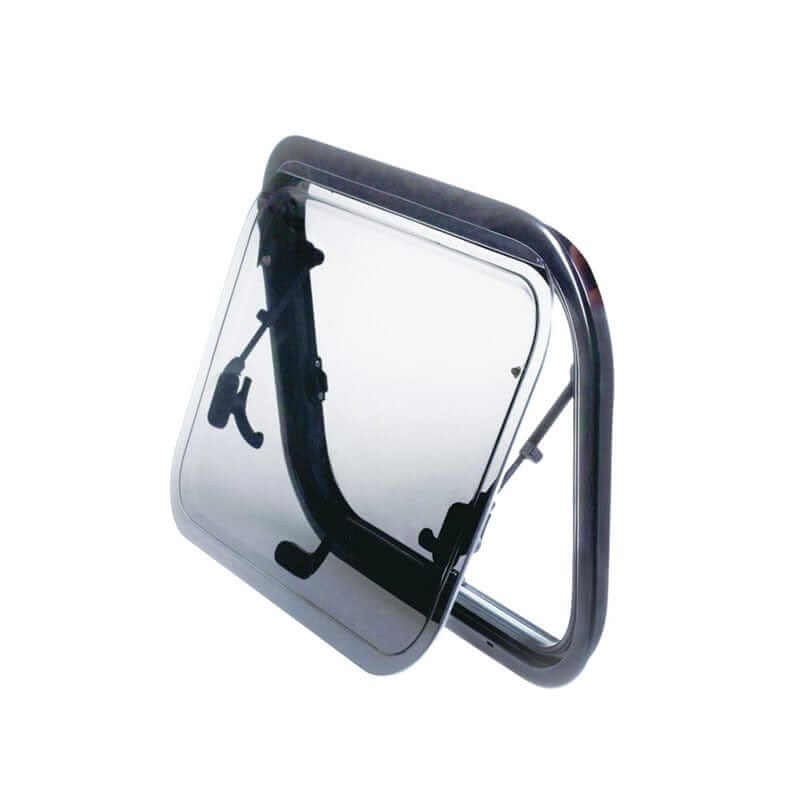

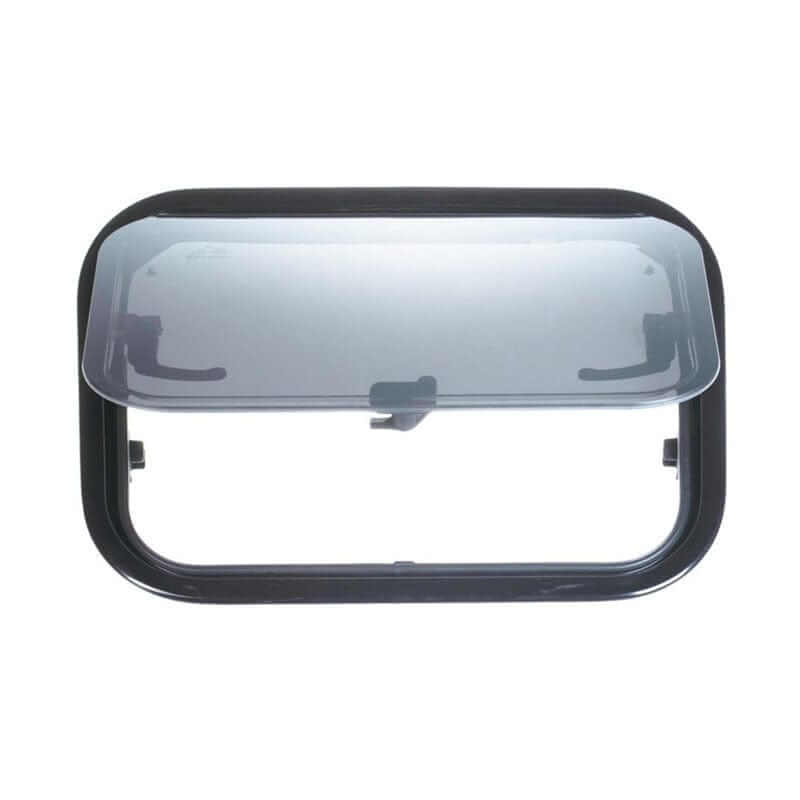

Push-Out Ventilation

Open the hinged panel outward to let fresh air into your living space.

Supporting struts hold the window open at the required position, giving you control over ventilation. Push-button locking handles secure the panel when closed.

Allow space outside for the opening panel, and close and secure the window before travelling.

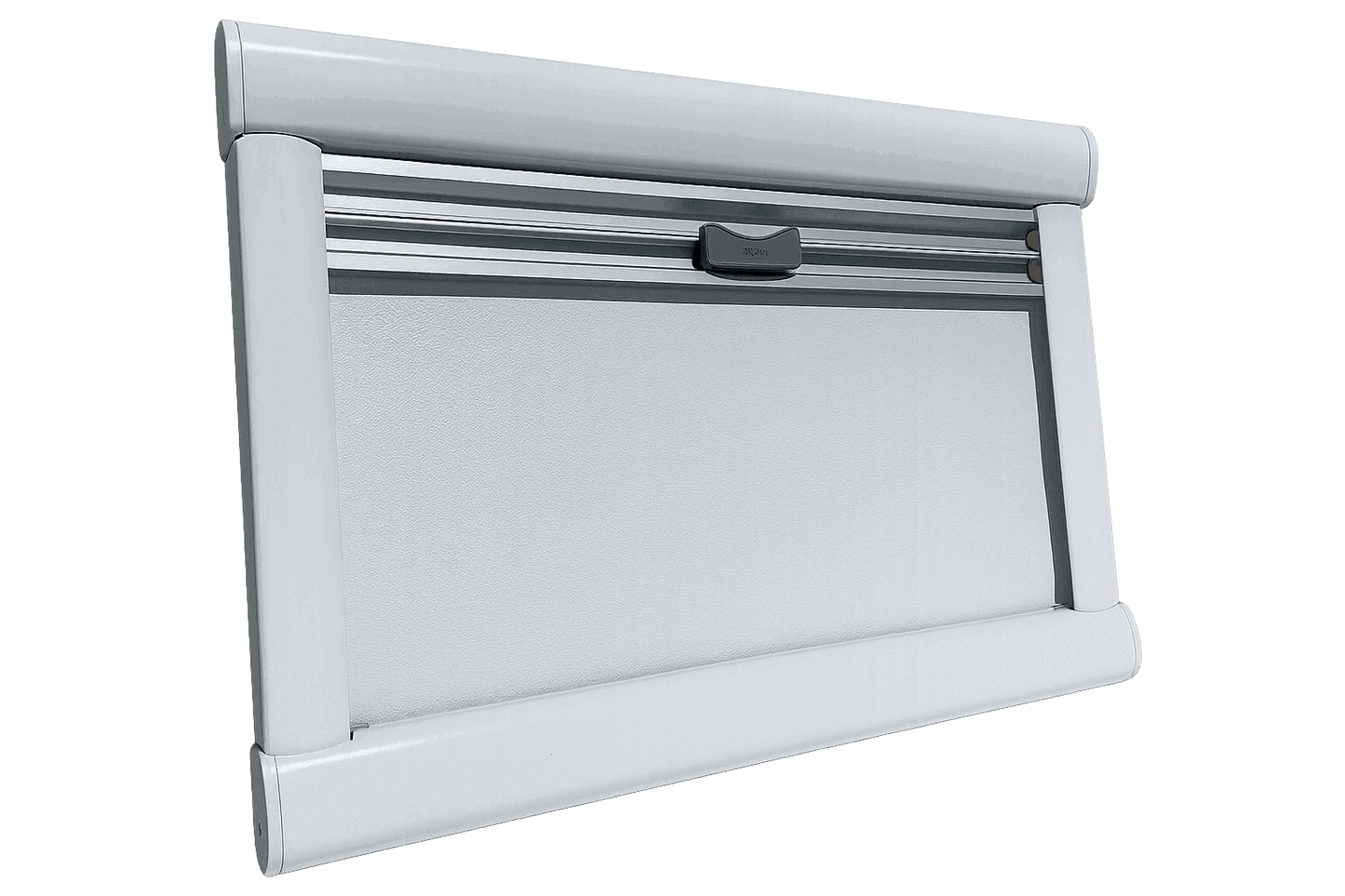

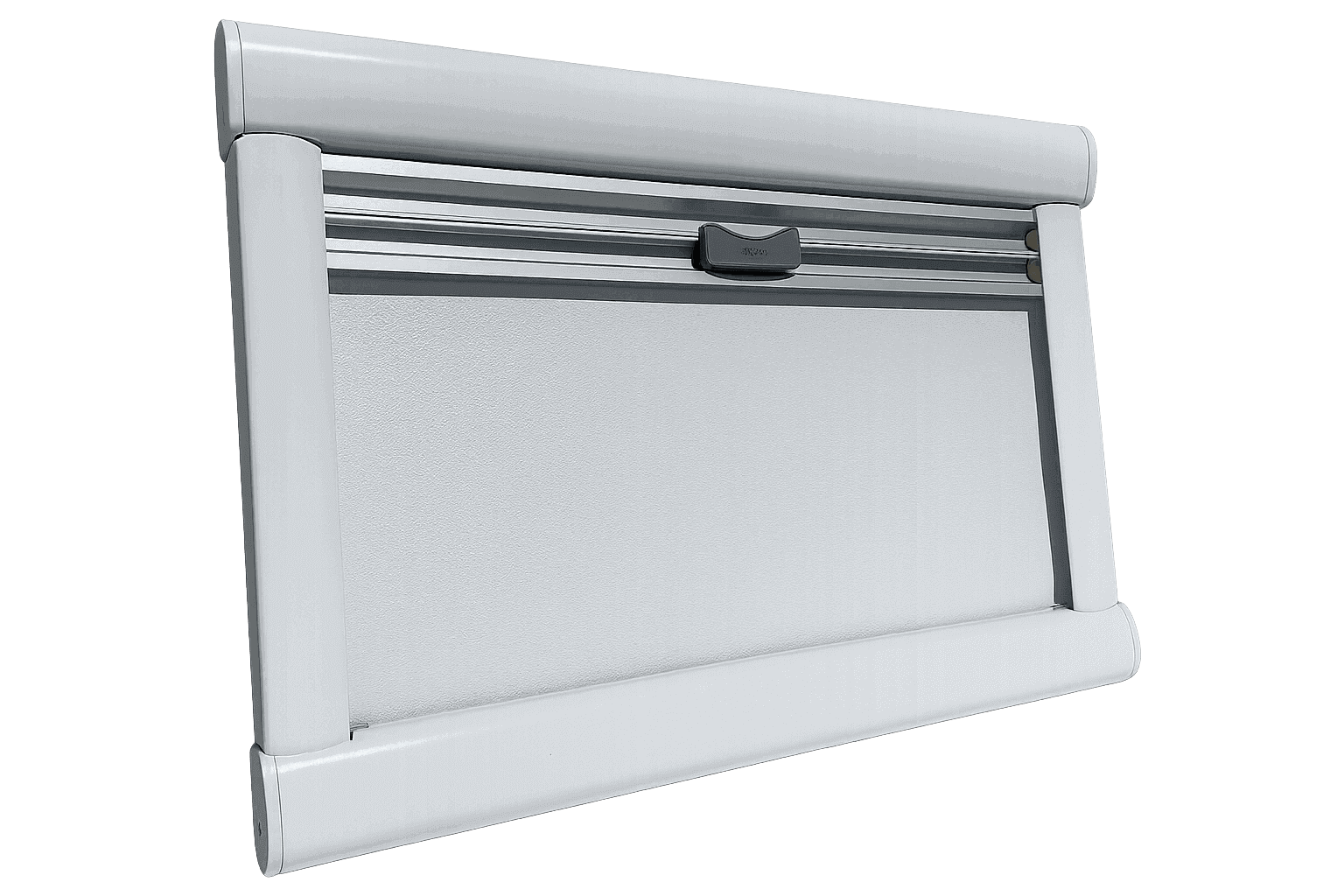

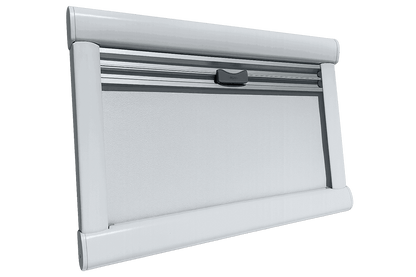

Block-Out Blind for Privacy and Light Control

The integrated pull-down block-out blind provides privacy and reduces unwanted light. Reflective backing helps manage incoming sunlight.

The blind is built into the interior assembly, keeping the window and privacy system together.

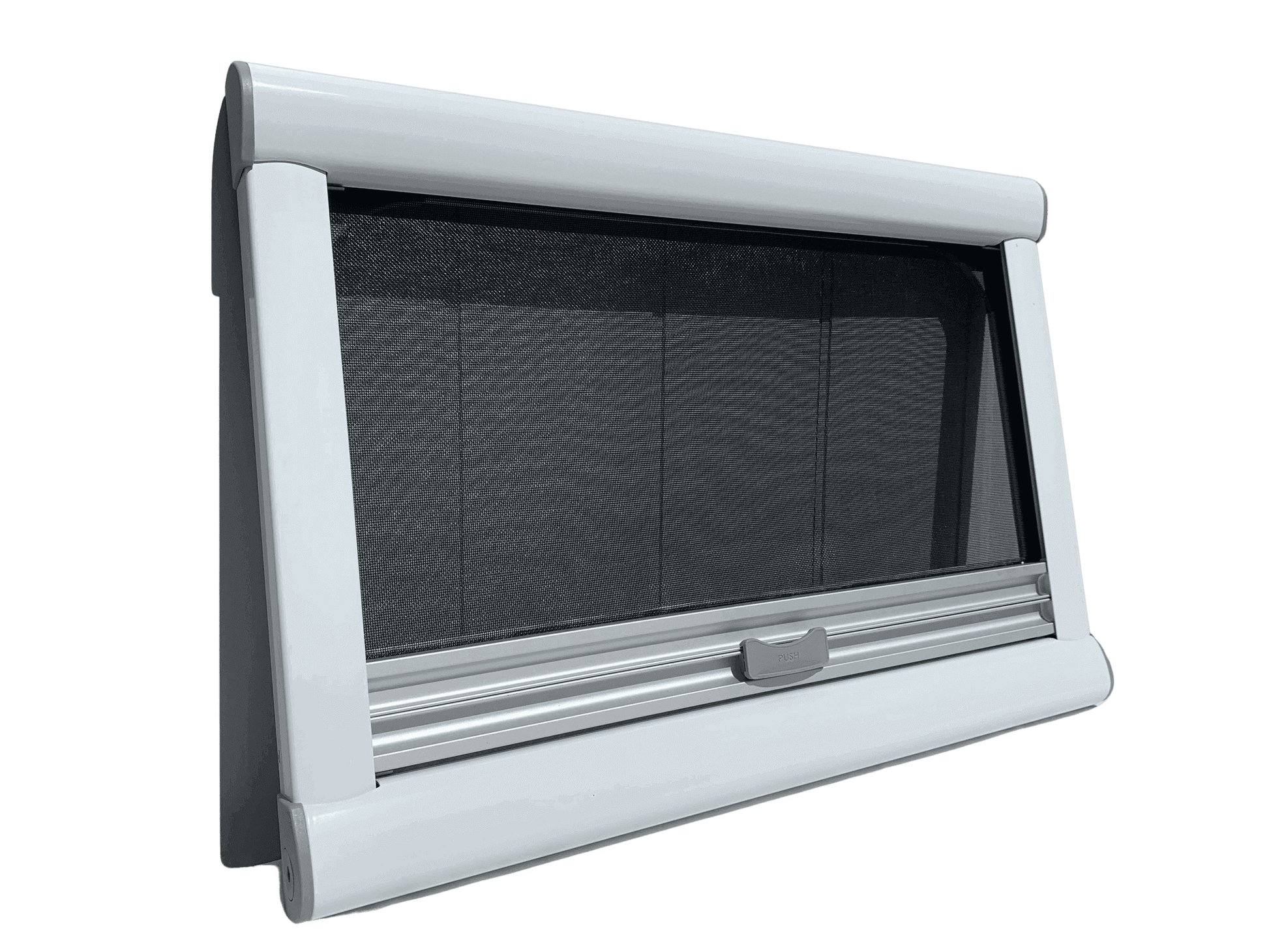

Integrated Flyscreen

The insect screen lets you ventilate while helping keep mosquitoes and other insects outside.

The flyscreen and block-out blind can operate independently or connect together for positioning, allowing you to adjust the opening for airflow, privacy and light.

Aluminium Frames and EPDM Seal

A black powder-coated aluminium alloy outer frame is paired with a white aluminium alloy inner frame.

An EPDM rubber seal around the frame forms part of the weather-sealing system. Correct mounting and installation sealing complete the fit between the window and caravan wall.

Height × Width and Profile Selection

This is the 800mm high × 1000mm wide model.

The nominal size identifies the window and its orientation. The required installation cut-out and overall frame dimensions are separate measurements.

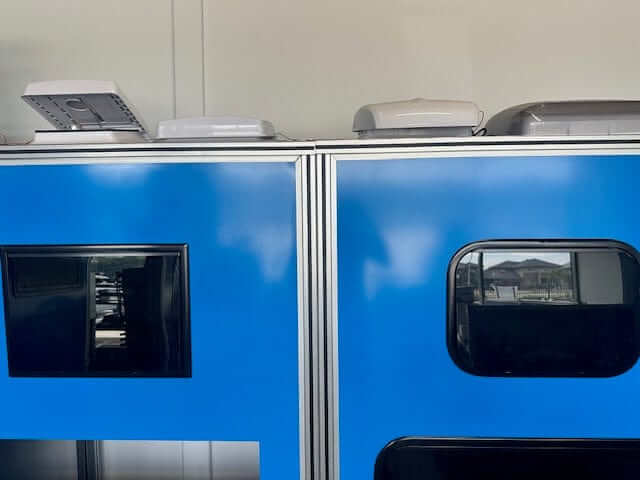

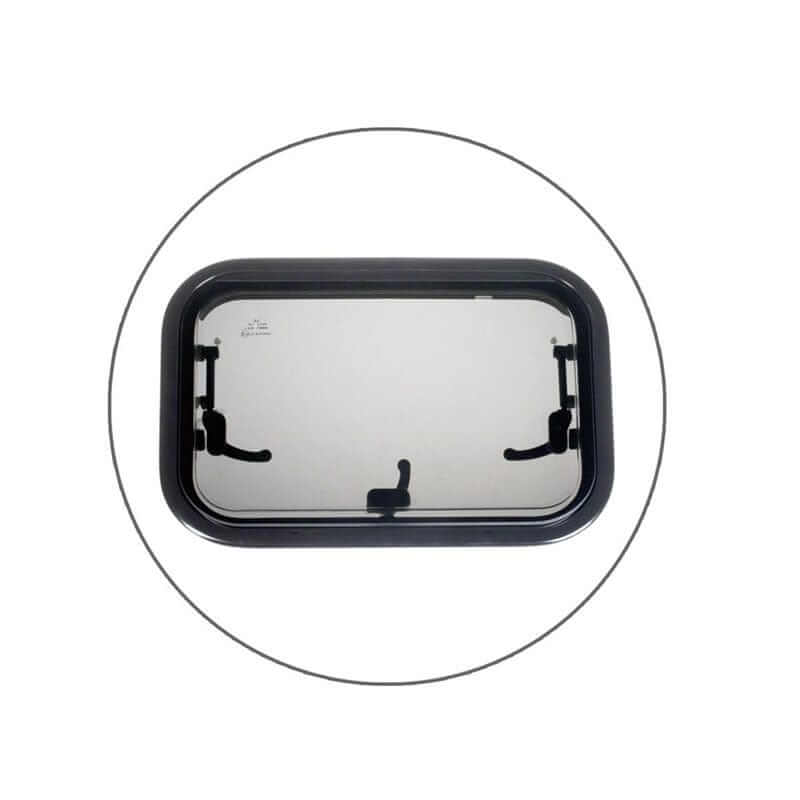

This size is listed in radius and square profiles. The supplier specifies:

• Radius profile: suitable for 25–40mm wall thickness.

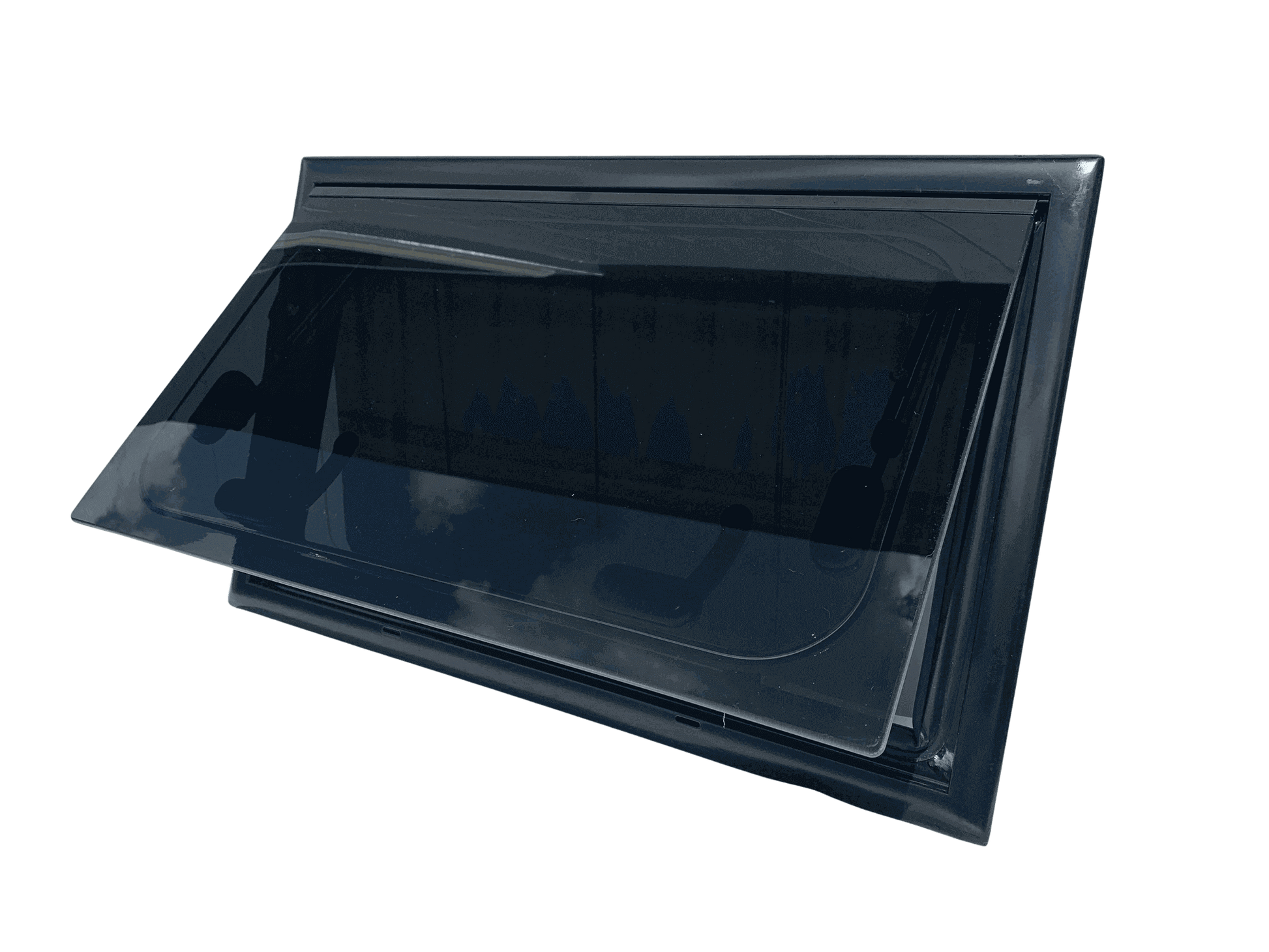

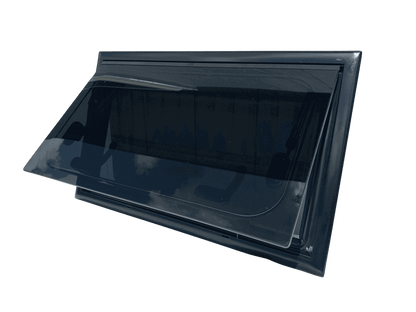

• Square profile: suitable for 30–40mm wall thickness.

Match the profile, wall thickness and installation dimensions to your caravan’s opening.

Specifications

Specification	Details
Brand	SJRV
Window style	Hinged push-out
Size order	Height × Width
Nominal height	800mm
Nominal width	1000mm
Glazing	Double-glazed flat acrylic
UV-resistant construction	Yes
Outer frame	Black powder-coated aluminium alloy
Inner frame	White powder-coated aluminium alloy
Frame seal	EPDM rubber
Opening support	Supporting struts
Closure	Push-button locking handles
Block-out blind	Included, with reflective backing
Flyscreen	Included
Blind/screen operation	Independent or connected positioning
Listed profiles	Radius or square
Listed wall thickness — radius	25–40mm
Listed wall thickness — square	30–40mm

Choosing and Measuring a Replacement Window

Read our caravan window buying and replacement guide for sizing, glazing, profiles and wall thickness.

Our caravan window cut-out measuring guide explains how to record the wall opening.

Browse our caravan windows with blinds and flyscreens for other sizes.

Remember: this model is 800mm high × 1000mm wide.

Frequently Asked Questions

Is this window 800mm high and 1000mm wide?

Yes. Its nominal size is 800mm Height × 1000mm Width. VanDIY lists window sizes as Height × Width.

Is the window double glazed?

Yes. It uses double-glazed flat acrylic with UV-resistant construction.

Does it include a block-out blind?

Yes. An integrated pull-down block-out blind with reflective backing provides privacy and light control.

Can I ventilate through an insect screen?

Yes. The included flyscreen helps keep insects outside while the window is open for ventilation.

Can the window be held open at different positions?

Yes. Supporting struts hold the push-out panel open at the required position.

Is this the same as a 1000mm high × 800mm wide window?

No. That is a different orientation. This model is 800mm high × 1000mm wide.

Does 800 × 1000mm describe the overall outer frame?

No. It identifies the nominal window size. The outer frame overlaps the wall opening and is larger.

Will it directly replace every caravan window of a similar size?

No. Replacement fit also depends on the opening shape, frame profile, wall thickness and installation clearances.
