SJRV Caravan Window 550mm H × 1450mm W – Blind & Flyscreen

Wide Caravan Window — 550mm High × 1450mm Wide

Bring a broad outside view, natural light and adjustable ventilation into your caravan with the SJRV double-glazed acrylic window. Its wide landscape format suits installations where a long window opening is required, with an integrated block-out blind and flyscreen for privacy and insect screening.

This model’s nominal size is 550mm high × 1450mm wide. All VanDIY window sizes are listed as Height × Width (H × W), in millimetres.

It provides a complete window assembly for caravan renovations, replacement installations and new builds with matching dimensions and profile.

Wide Landscape Format

At 1450mm wide and 550mm high, this window provides a broad view without requiring a tall opening.

The format can suit caravan seating, dining and living areas where the wall layout accommodates its width. The flat acrylic panel and black exterior frame give a consistent appearance alongside other SJRV windows.

Double-Glazed Acrylic Panel

The double-glazed flat acrylic helps reduce heat transfer while providing a lightweight glazing option for caravan and RV use.

UV-resistant construction suits an exterior installation, while the integrated blind provides additional control over incoming light.

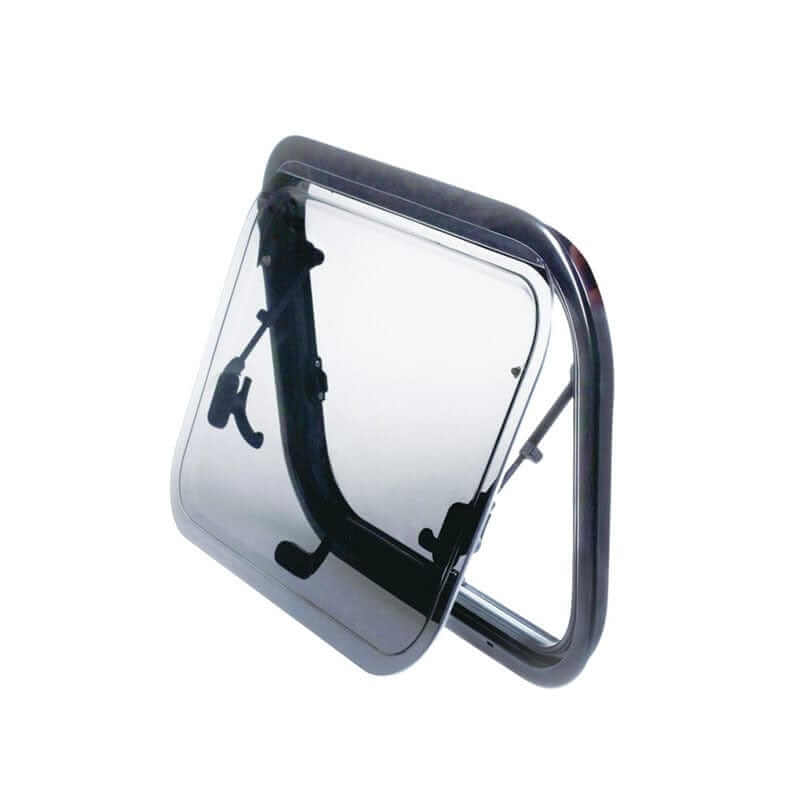

Push-Out Ventilation

The hinged panel pushes outward to admit fresh air. Supporting struts hold it open at the required position, allowing you to adjust ventilation through your living space.

Push-button locking handles secure the panel when closed.

Allow sufficient space outside for the opening panel, and close and secure the window before travelling.

Integrated Block-Out Blind and Flyscreen

The pull-down block-out blind provides privacy and reduces unwanted light. Its reflective backing helps manage incoming sunlight.

The flyscreen allows airflow while helping keep mosquitoes and other insects outside. Operate the blind and screen independently or connect them together for positioning.

Both are integrated into the interior assembly.

Aluminium Frames and EPDM Seal

The window combines a black powder-coated aluminium alloy outer frame with a white aluminium alloy inner frame.

An EPDM rubber seal around the outer frame forms part of the weather-sealing system. Correct mounting and installation sealing complete the fit to the caravan wall.

Height × Width and Profile Selection

This is the 550mm high × 1450mm wide model.

Nominal window size, installation cut-out and overall frame dimensions are separate measurements. Use the installation drawing for the selected profile when preparing the opening.

This size is listed in radius and square profiles. The supplier specifies:

• Radius profile: suitable for 25–40mm wall thickness.

• Square profile: suitable for 30–40mm wall thickness.

Match the profile and wall thickness as well as the opening’s height and width.

Specifications

Specification	Details
Brand	SJRV
Window style	Hinged push-out
Format	Wide landscape
Size order	Height × Width
Nominal height	550mm
Nominal width	1450mm
Glazing	Double-glazed flat acrylic
UV-resistant construction	Yes
Outer frame	Black powder-coated aluminium alloy
Inner frame	White powder-coated aluminium alloy
Frame seal	EPDM rubber
Opening support	Supporting struts
Closure	Push-button locking handles
Block-out blind	Included, with reflective backing
Flyscreen	Included
Blind/screen operation	Independent or connected positioning
Listed profiles	Radius or square
Listed wall thickness — radius	25–40mm
Listed wall thickness — square	30–40mm

Choosing and Measuring a Replacement Window

Read our caravan window buying and replacement guide for sizing, profiles, wall thickness and glazing.

Our caravan window cut-out measuring guide explains how to record the opening.

Browse our caravan windows with blinds and flyscreens for other sizes.

Remember: this model is 550mm high × 1450mm wide.

Frequently Asked Questions

Is this window 550mm high and 1450mm wide?

Yes. Its nominal size is 550mm Height × 1450mm Width.

Does it use double-glazed acrylic?

Yes. The window has a double-glazed flat acrylic panel with UV-resistant construction.

Does it include a block-out blind and flyscreen?

Yes. Both are integrated into the interior assembly for privacy, light control and insect screening.

Can I open the window for ventilation?

Yes. The panel pushes outward, with supporting struts holding it open at the required position.

Are both the inner and outer frames aluminium?

Yes. The outer frame is black powder-coated aluminium alloy, and the inner frame is white powder-coated aluminium alloy.

Is this window 1450mm high?

No. It is 550mm high and 1450mm wide. VanDIY lists window dimensions as Height × Width.

Does 550 × 1450mm describe the overall outside frame?

No. It identifies the nominal window size. The outer frame overlaps the opening and is larger.

Will it directly replace every existing window of a similar size?

No. Replacement fit also depends on the opening shape, frame profile, wall thickness and installation clearances.
