SJRV W5000 Caravan Cassette Toilet – Swivel Bowl & 17.2L Waste Tank
SJRV W5000 Caravan Cassette Toilet – Swivel Bowl & 17.2L Waste Tank
Couldn't load pickup availability
Click above to bundle products and get the best possible supply and delivery quote. No commitment !
Add a permanent toilet to your caravan or motorhome bathroom with the SJRV W5000 swivel cassette toilet. Its adjustable bowl position, removable 17.2-litre waste tank and soft-closing lid combine everyday comfort with practical waste handling on the road.
Swivel Bowl for Compact Bathrooms
The bowl rotates up to 90 degrees in either direction, allowing you to position it for use within a compact bathroom. Its lightweight construction suits caravan renovations, motorhome fit-outs and new builds.
Electric Flush & Removable Waste Cassette
The W5000 uses a 12V electric flushing system connected to your caravan’s water supply. Waste collects in a removable cassette instead of a permanently installed central black-water tank.

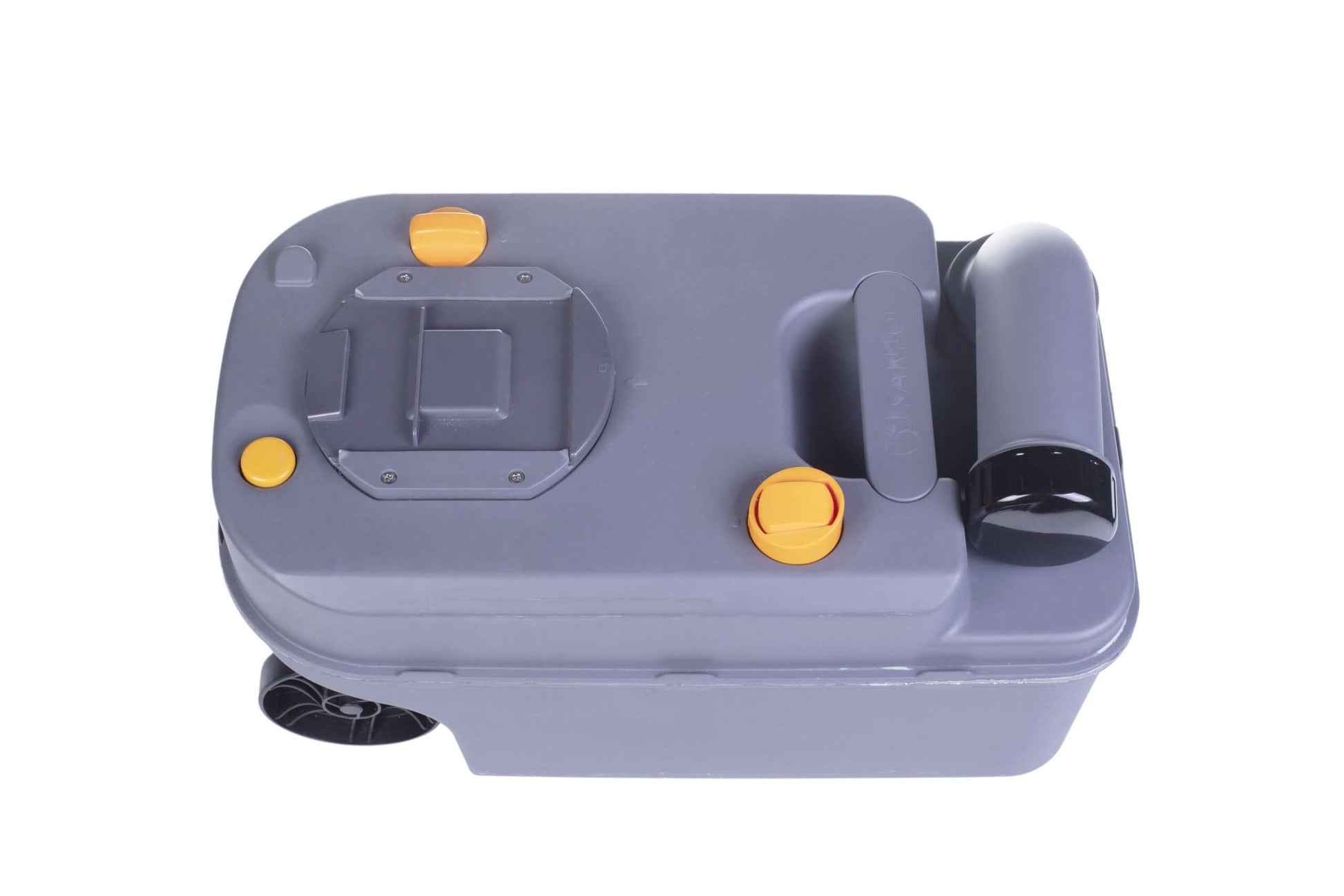

The cassette includes a pull handle and wheels for easier transport to an appropriate disposal point. A level indicator alerts you when emptying is required.
The electric flushing system includes a pre-flush function. A black external access door is included for the cassette installation.
Hygiene, Odour Control & Quiet Closing
The antibacterial seat and lid support everyday hygiene. A magnetic lid-retention mechanism and soft-close operation help reduce movement and noise.
The venting arrangement directs odours outside the vehicle, while PBT valve components and sealing rings help contain waste and odours. Serviceable wear components support ongoing maintenance.
Specifications
| Specification | Details |
|---|---|
| Model | SJRV / 3J-W5000 |
| Type | Built-in swivel cassette toilet |
| Waste cassette capacity | 17.2L |
| Flush | Electric, connected to the vehicle’s water supply |
| Electrical supply | 12V DC |
| Bowl rotation | Up to 90° left or right |
| Maximum load | 120kg |
| Overall dimensions | 577mm long × 370mm wide × 538mm high |
| Height with lid open | 838mm |
| Listed bowl-rotation dimensions | 528 × 408 × 528mm |
| Cassette transport | Pull handle and wheels |
| Seat and lid | Antibacterial, with soft-close operation |
| Pre-flush function | Included |
| External access door | Black, included |
| Cassette entry | Rear |
Compare swivel cassette, bench cassette and portable models in our Caravan Toilet Buying Guide.
Browse our caravan cassette and portable toilets for other bathroom options.
Frequently Asked Questions
Can the bowl swivel to suit a compact caravan bathroom?
Yes. The bowl rotates up to 90 degrees left or right, providing flexibility when positioning it for use.
Can I remove the waste tank for emptying?
Yes. The 17.2-litre cassette removes from the toilet for emptying at an appropriate waste-disposal point.
Does the cassette have wheels and a pull handle?
Yes. Both are integrated into the cassette to make transporting it easier.
Does the toilet have a soft-closing lid?
Yes. Soft-close operation and magnetic lid retention help reduce slamming and unwanted movement.
Does it warn me when the waste cassette is full?

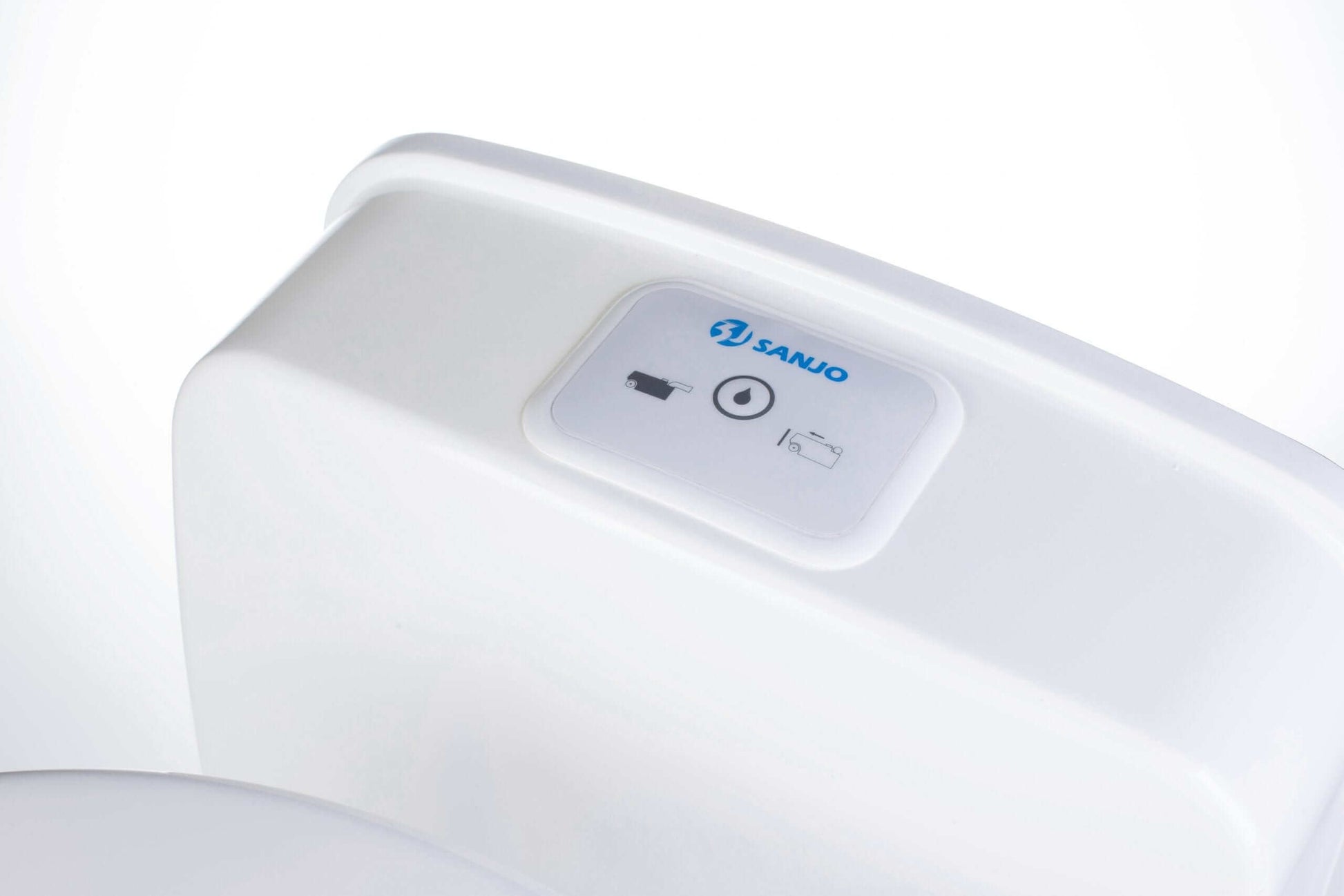

Yes. The control-panel indicator alerts you when the cassette needs emptying.
Is the waste tank capacity 20 litres?
No. The W5000 waste cassette has a specified capacity of 17.2 litres.
Does it require a permanent connection to a central sewage tank?
No. Waste is stored in the removable cassette. The toilet still requires its flushing-water connection and 12V electrical supply.
Can it operate as a waterless toilet?
No. The W5000 uses water for flushing. It is a cassette toilet rather than a waterless bagging or separating toilet.
