SJRV W50011 Caravan Cassette Toilet – 20L Waste & 14.4L Flush Tank

SJRV W50011 Caravan Cassette Toilet with Built-In Flush Tank

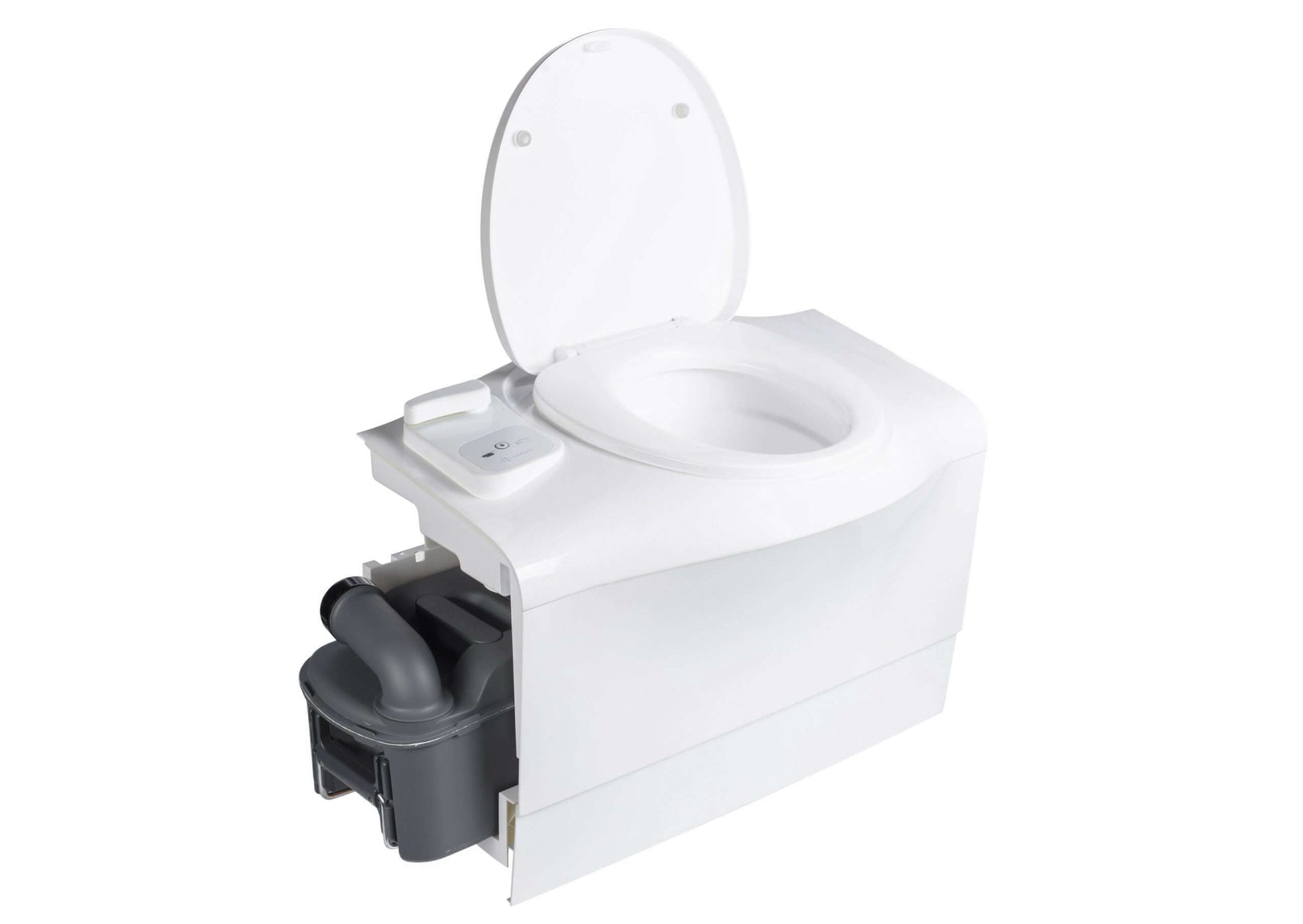

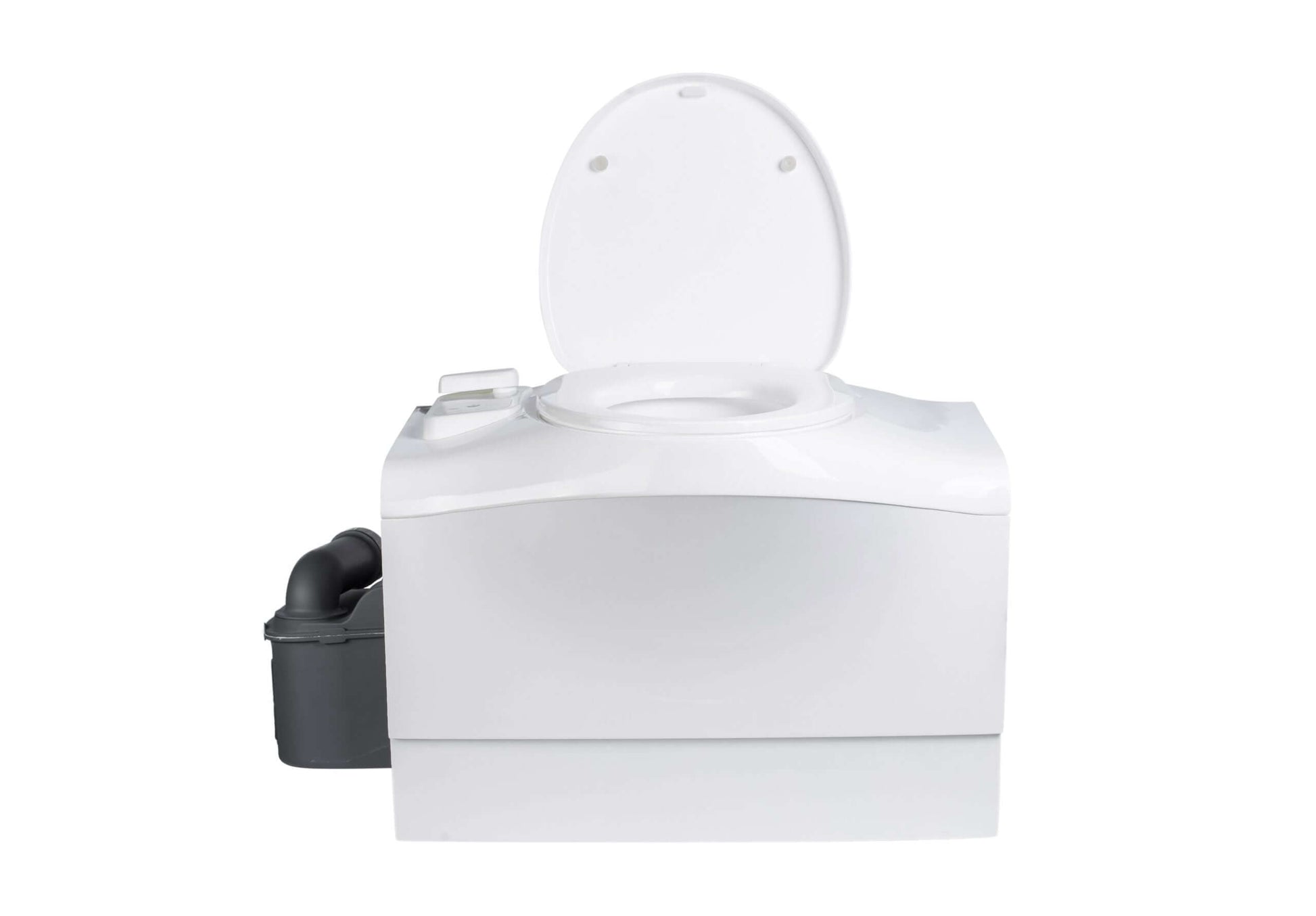

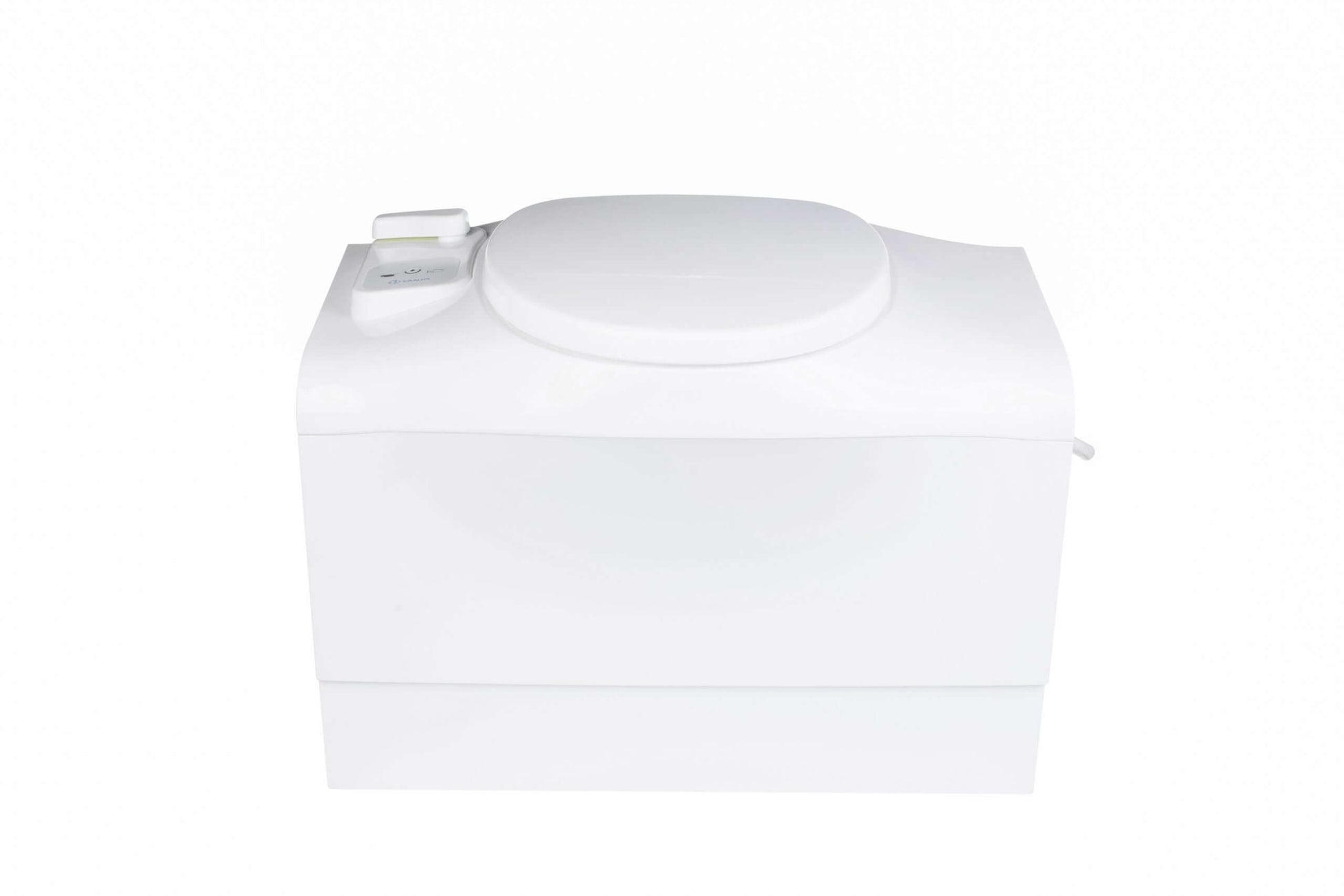

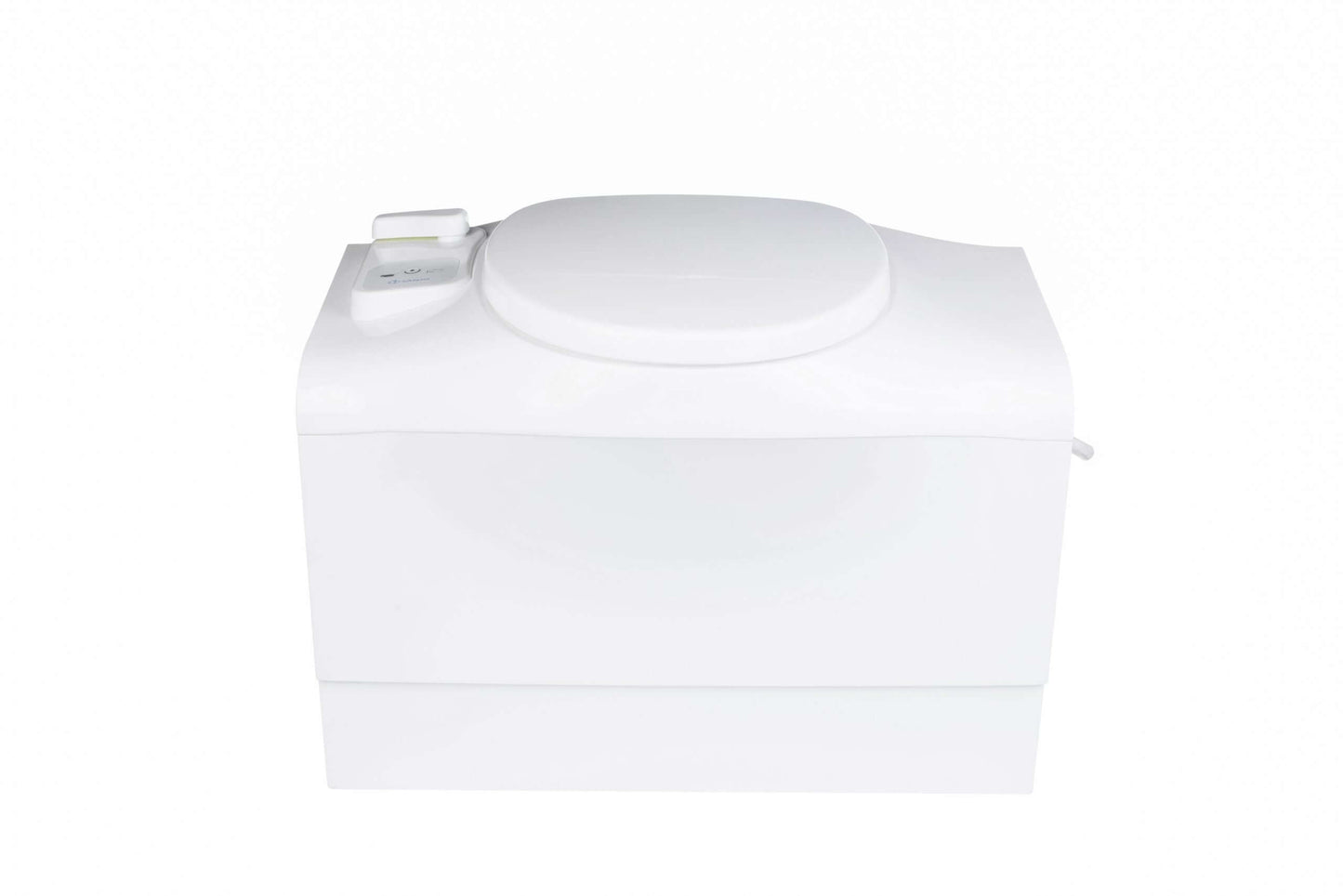

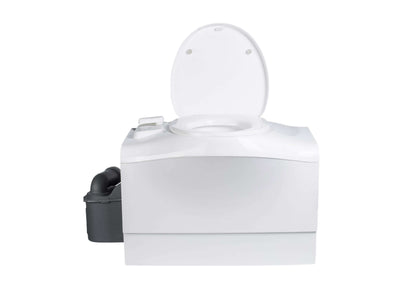

The SJRV W50011 is a bench-style cassette toilet for permanent installation in caravans, motorhomes and RVs. Its built-in 14.4L fresh-water tank supplies flushing water, while a separate removable 20L cassette collects waste.

Choose left-side or right-side service access to suit your bathroom layout. When the waste cassette needs emptying, its wheels and pull handle make it easier to transport.

Separate Fresh-Water and Waste Tanks

The W50011 keeps flushing water and toilet waste in separate tanks:

• 14.4L fresh-water tank: built into the toilet to supply flushing water.

• 20L waste cassette: removable for emptying and cleaning.

• Full-tank indicator: alerts you when the waste cassette needs attention.

Waste is collected in the cassette, so the toilet does not require a permanent sewer connection.

Designed for Everyday Caravan Use

Lightweight polypropylene construction with antibacterial features provides an easy-to-clean surface. The magnetic, slow-closing lid helps reduce slamming and movement.

An external venting system helps manage odours, while the PBT flap and sealing rings help contain waste and prevent leaks. Replaceable components allow individual parts to be serviced when required.

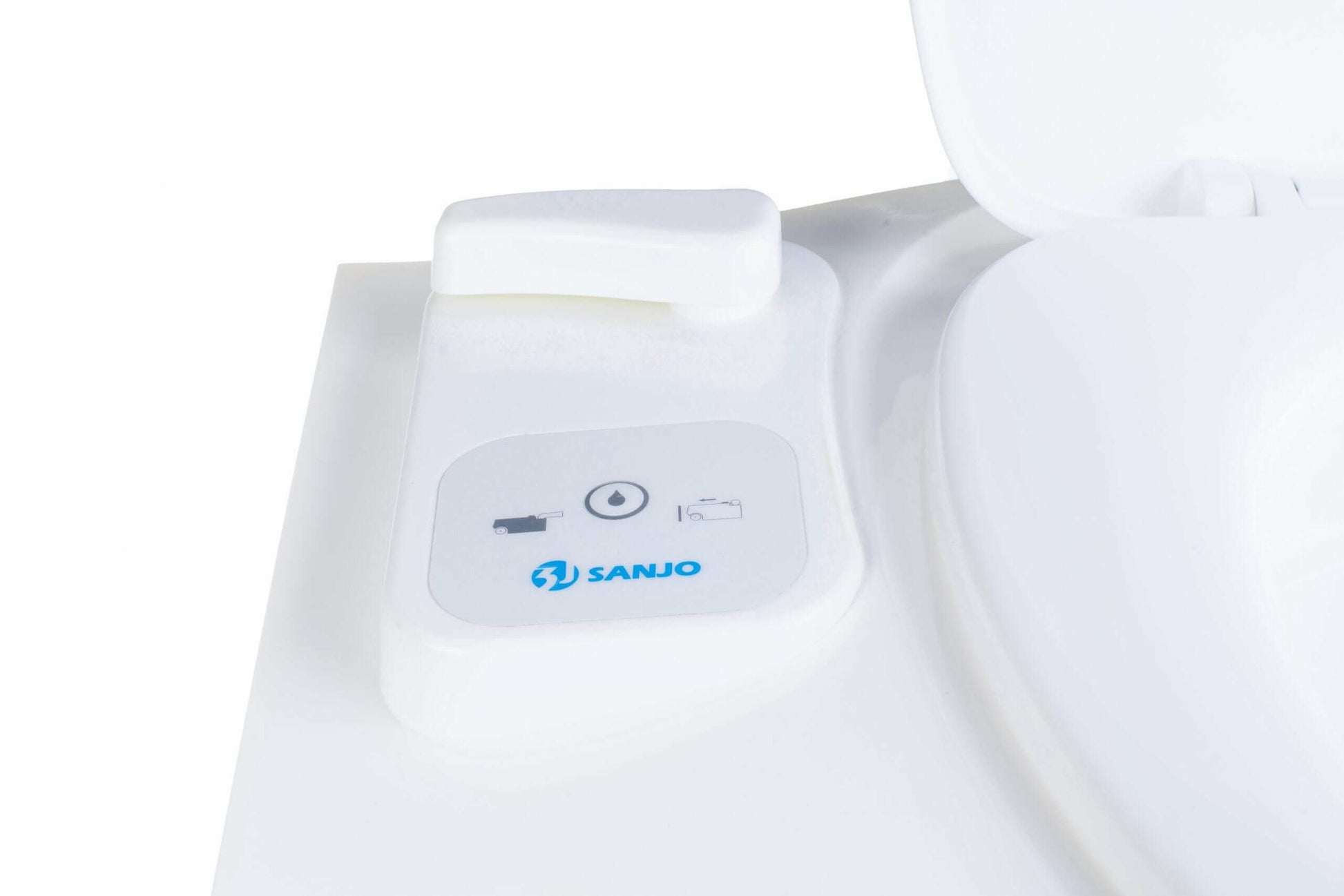

The electric flushing system includes a pre-flush function.

Left or Right Service Access

Select the left-side or right-side service-access option required for your installation. Allow space for the lid to open fully and for the waste cassette to slide out through the service opening.

Left and right cassette-access orientation is determined when facing the toilet. A black external service door is included.

Specifications

Specification	Details
Model	SJRV W50011
Listed product code	W500011 (12/13)
Toilet style	Bench-style cassette toilet
Installation	Permanently fitted
Fresh-water tank	14.4L
Waste holding tank	20L
Main dimensions, L × W × H	670 × 405 × 522mm
Dimensions with lid open, L × W × H	670 × 405 × 859.5mm
Construction	Polypropylene with antibacterial features
Lid	Magnetic, slow-closing
Waste cassette transport	Wheels and pull handle
Service-access options	Left or right
Flush	Electric, with pre-flush function
Maximum load	120kg
External service door	Black, included
Service-access orientation	Left or right when facing the toilet

Compare bench cassette, swivel cassette and portable models in our Caravan Toilet Buying Guide.

Explore our caravan cassette and portable toilets for other bathroom options.

Frequently Asked Questions

Does the W50011 have its own fresh-water tank?

Yes. It has a built-in 14.4L fresh-water tank for flushing, separate from the waste cassette.

Can I remove the waste tank for emptying?

Yes. The 20L waste cassette can be removed through the service opening for emptying at a suitable waste-disposal point.

Does the waste cassette have wheels and a handle?

Yes. Wheels and a pull handle help you move the cassette when it needs emptying.

Can I choose left-side or right-side service access?

Yes. Both options are available. Select the access side that suits your caravan’s bathroom and external service-door position.

Does it have a soft-closing lid and a full-tank indicator?

Yes. The magnetic, slow-closing lid helps reduce slamming, and the indicator alerts you when the waste tank is full.

Is 14.4L the waste holding capacity?

No. The 14.4L figure refers to the fresh-water tank. The separate waste cassette holds 20L.

Does it need a permanent sewer connection?

No. Waste collects in the removable cassette, which you take out for emptying.

Is this a waterless toilet?

No. The W50011 uses water from its built-in fresh-water tank for flushing.
